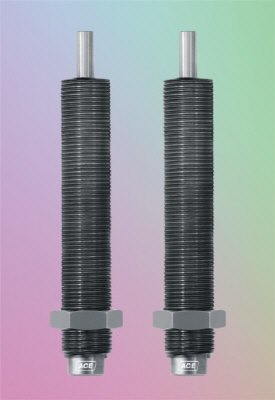

ACE Controls Soft Contact, Self Compensating Shock
Absorber Model SC190


Self-compensating ACE shock absorbers are maintenance free, self-contained hydraulic devices.

During the deceleration process, the piston rod is driven into the shock absorber.

The hydraulic oil, in front of the piston, is forced through a multitude of metering orifices.

The number of metering orifices in action decreases proportionally to the distance traveled through the stroke.

The impact velocity is smoothly reduced to zero as it approaches the end of stroke.

The internal pressure and also the reaction force, in front of the piston remain essentially constant throughout the complete stroke length.

This provides a linear deceleration with the lowest possible strain on the machine.

ACE Shock

Absorber

Model SC190

Threaded Body Style, 9/16"-18, 4.50" Long, 0.63" Stroke


Miniature Shock Absorbers
SC300M; 0 to 4

Long stroke and soft impact

Self-Compensating, Soft-Contact
Energy capacity 300 in-lbs/Cycle
Stroke 0.75 in

Ideal for soft damping: the SC found in the model code from the ACE product family SC190 to SC925 stands for 'soft contact'. These miniature shock absorbers manufactured from one solid piece are designed in such a way that they can be setup with a linear or a progressive braking curve. The soft damping character is thanks to the special, long strokes which produce smooth deceleration and low reaction forces.These maintenance-free, ready-to-install hydraulic machine elements are equipped with an integrated positive stop. The use of side load adapter allows impact angles of up to 25°. Thanks to the designed overlapping effective weight ranges, these dampers cover an effective load range of 3 lbs. to 4,400 lbs! Self-compensating shock absorbers react to changing energy conditions, without adjustment.These miniature self-compensating shock absorbers from the SC190 to SC925 product family are used in industrial, automation and machine engineering and primarily in the areas of handling and automation.

TECHNICAL DATA

Energy capacity 300 in-lbs/Cycle

Stroke 0.75 in

Impact velocity range 0.5 ft/sec to 12 ft/sec. Other speeds on request.

Operating temperature range 32 °F to 150 °F

Mounting In any position

Positive stop Integrated

Material Outer body, Accessories: Steel corrosion-resistant coating; Piston rod: Hardened stainless steel

Damping medium Oil, temperature stable



Contact [email protected]  for additional information.

We are a factory authorized distributor for ACE Controls, Industrial Shock Absorbers. All of our products are brand new and covered by ACE factory warantee..

Self-Compensating, Soft-Contact
Energy capacity 225 in-lbs/Cycle to 975 in-lbs/Cycle
Stroke 0.63 in to 1.58 in

Ideal for soft damping: the SC found in the model code from the ACE product family SC190 to SC925 stands for 'soft contact'. These miniature shock absorbers manufactured from one solid piece are designed in such a way that they can be setup with a linear or a progressive braking curve. The soft damping character is thanks to the special, long strokes which produce smooth deceleration and low reaction forces.

These maintenance-free, ready-to-install hydraulic machine elements are equipped with an integrated positive stop. The use of side load adapter allows impact angles of up to 25°. Thanks to the designed overlapping effective weight ranges, these dampers cover an effective load range of 3 lbs. to 4,400 lbs! Self-compensating shock absorbers react to changing energy conditions, without adjustment.

These miniature self-compensating shock absorbers from the SC190 to SC925 product family are used in industrial, automation and machine engineering and primarily in the areas of handling and automation.

TECHNICAL DATA

Energy capacity 225 in-lbs/Cycle to 975 in-lbs/Cycle

Stroke 0.63 in to 1.58 in

Impact velocity range 0.5 ft/sec to 12 ft/sec. Other speeds on request.

Operating temperature range 32 °F to 150 °F

Mounting In any position

Positive stop Integrated

Material Outer body, Accessories: Steel corrosion-resistant coating; Piston rod: Hardened stainless steel

Damping medium Oil, temperature stable

Application field Linear slides, Pneumatic cylinders, Handling modules, Machines and plants, Finishing and processing centers, Measuring tables, Tool machines



Contact [email protected]  for additional information.

We are a factory authorized distributor for ACE Controls, Industrial Shock Absorbers. All of our products are brand new and covered by ACE factory warantee.
