Tolomatic Band Cylinder 2.00 inch Bore
BC420
From
Add to cart
  • Description
  • More

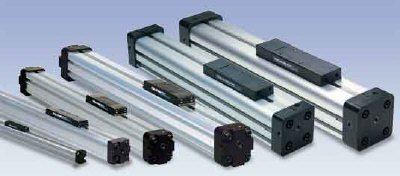

Tolomatic's BC4 Series rodless band cylinder is a cost-effective, space-saving actuator perfect for applications wherre existing guided and supported loads require pneumatic actuation. It's unique internal load-supporting bearing design, offers substantially more bearing surface than other cylinders in its class. For applications where heavy side loads are not a factor, the BC4 Series actuators provide hardworking, dependable performance.

Tolomatic 2 inch bore rodless air cylinder

Contact [email protected]  for additional information.

We are a factory authorized distributor for Tolomatic products.  All of our products are brand new and covered by the factory warantee.

BC220-English Series

Bore size: 2 in.
Base weight: 11.90 lbs.
Weight per inch of stroke: .67lbs
Maximum Stroke Length: 13.0 ft.
Maximum Pressure: 100 PSI
Temperature Range: 20o to 140o F
Moment Loads: 98.0 to 2192.4 lb-in (depending moment type carrier selection)
Max. load capacity: 270.0 to 540.0 lb (depending on carrier selection)

BC4M20-Metric w/ taper port
BC4MM20-Metric w/ parallel port

Bore size: 50 mm.
Base weight: 5.40 kgs.
Weight per millimeter of stroke: .30 kgs.
Maximum Stroke Length: 3.96 m.
Maximum Pressure: 6.895 bar
Temperature Range: -7o to 60o C
Moment Loads: 11.07 to 373.65 N-m (depending moment type carrier selection)
Max. load capacity: 122.47 to 2402.05 kgs. (depending on carrier selection)
