Bag Gripper by Zimmer

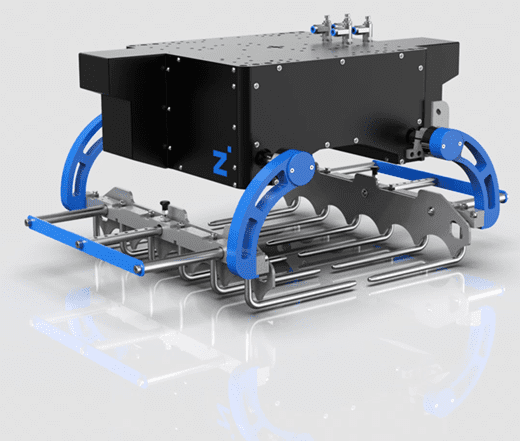

A machine that is sitting on top of some metal.

Manufacturer: Zimmer

The Zimmer Group bag gripper is a unique end-of-arm system for handling bags that can be filled with a wide variety of goods, such as flour, vegetables, fruits, grains, fertilizers, chemicals, cement or numerous other products. Different bag materials can be used, including paper, plastic, jute or fabric and woven fabric.

  • Synchronous pneumatic jaw movement and force retention
    keeps the bag centered and gives long life.
  • Large drive cylinders for fast cycle times capable of up to 20 cycles per minute,
    depending on robot and distance travelling.​
  • Optional functions for flattening, intermediate layer handling and pallet handling.​
  • Special forks for food grade or for hazardous / chemical materials​.

Applications for Bag Gripper

  • Food industries
  • Onions / potatoes / vegetables ​
  • Flours / spices / powdery materials
  • Chemical / fertilizer / petrochemical industries
  • Cement industries / building materials
  • Consumer products



A variety of different types of food and packaging.

Bag Gripper

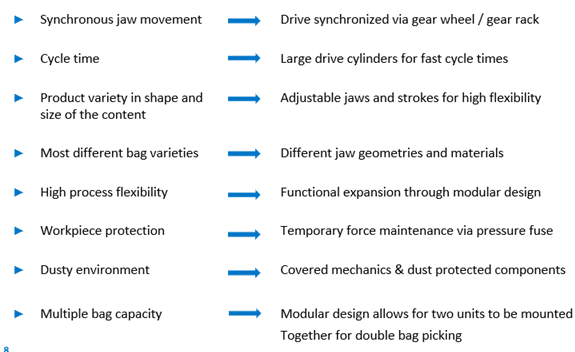

Challenge & Solution

A diagram of different types of mechanisms and their uses.

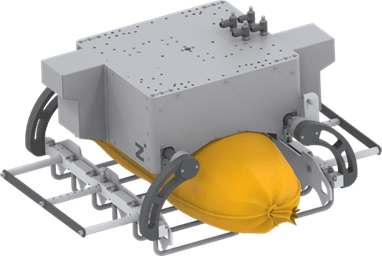

A yellow helmet is on top of a machine.

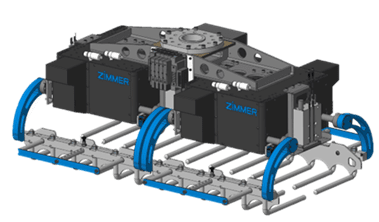

A 3 d image of the zamer machine

Options & Accessories for Bag Gripper

With Zimmer Group's bag grippers, handling large, heavy and delicate packages is no longer a problem.

A modular design enables the expansion with additional functions and different versions of the gripper, such as:

  • Top Press Unit (pressure unit/hold-down device)
  • Slip Sheet Lifter (intermediate layer)
  • Pallet Lifter

Layout for Bag Gripper

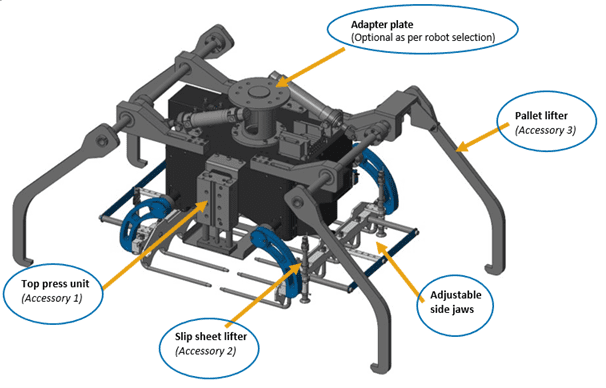

A spider-like robot with multiple parts attached to it.

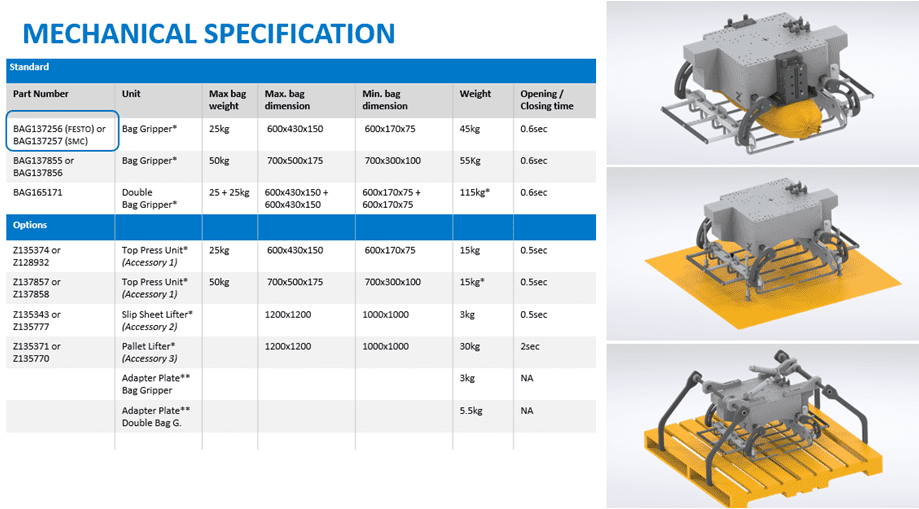

A table with three different types of machines.

Literature

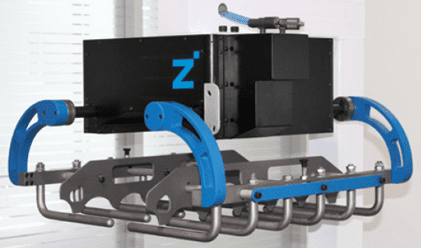

A machine with some blue handles on it

Bag Gripper Data Sheet
