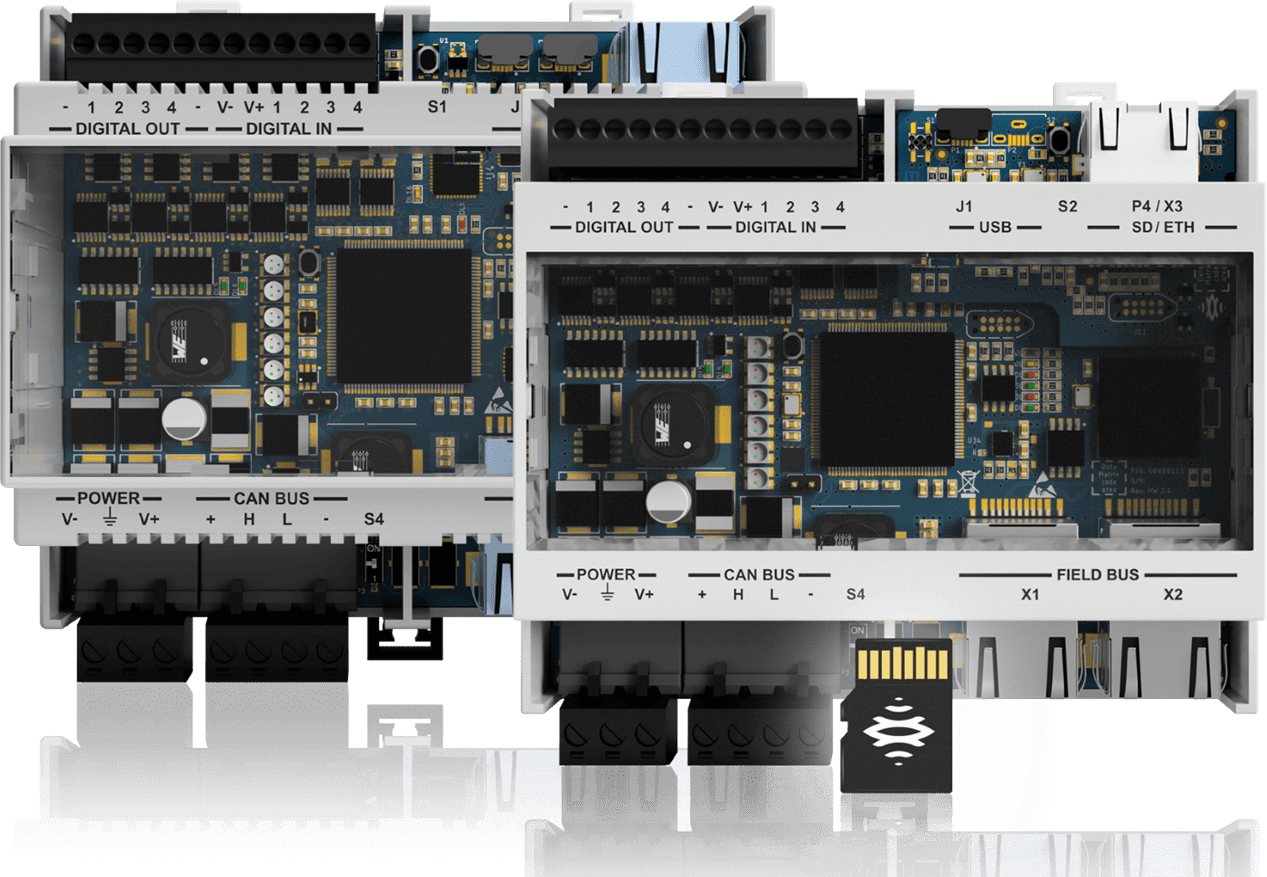

C201A-F & C201B-F Control Units by Inxpect

C201A | C201B

FSoE, Ethernet and digital I/O

C201 is the most advanced control unit for Inxpect safety radars, with the widest range of communication options. The Inxpect Safety Application allows the configuration of sensitivity levels, safety functions, size of detection fields, and the functionality of the I/O ports of the control unit.

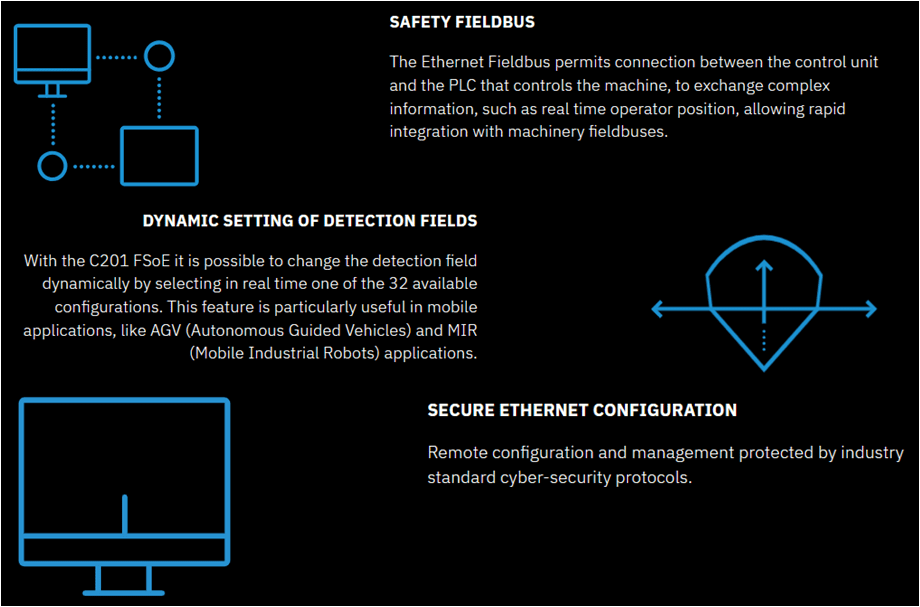

Safety fieldbus
Currently supporting Safety over EtherCAT® (FSoE) fieldbus protocol.
Secure Ethernet
Remote configuration and management protected by industry standard cyber security protocols.
USB
Local configuration option.

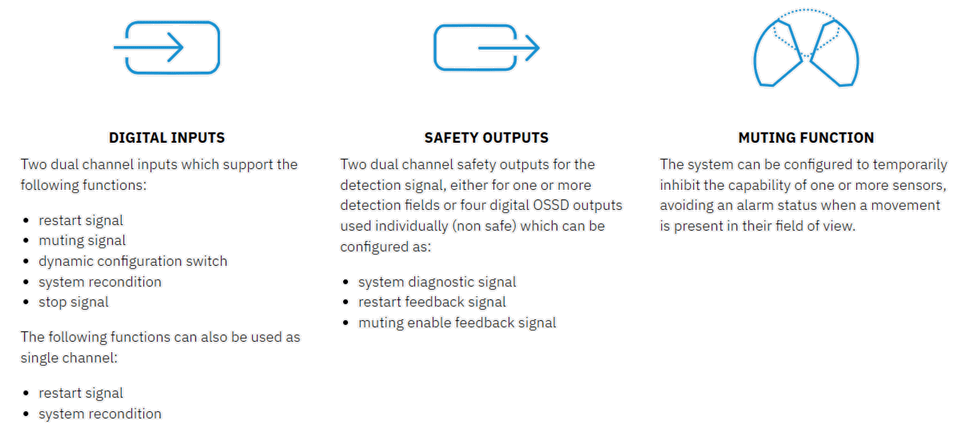

Digital inputs
The system has two TYPE3 dual channel inputs. Alternatively, the four channels can be used as single channel digital inputs (category 2). Supporting the following functions:
• muting signal
• emergency stop signal
• restart signal
Four Output Signal Switching Devices
As safety outputs:  two dual-channel safety OSSDs.
As auxiliary outputs:  four auxiliary outputs, which can be configured as signal restart feedback, fault, muting status.
Dynamic setting of detection fields
The FSoE connection allows to have up to 32 configurations switchable in real time.

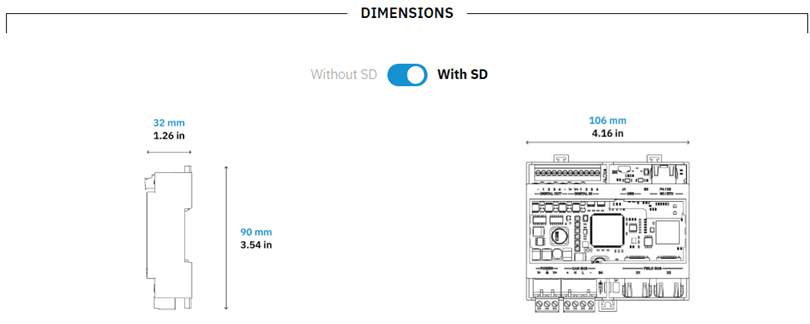

SD backup, SD restore
Configurations and login credentials can be saved and restored via microSD card (only for C201B).
