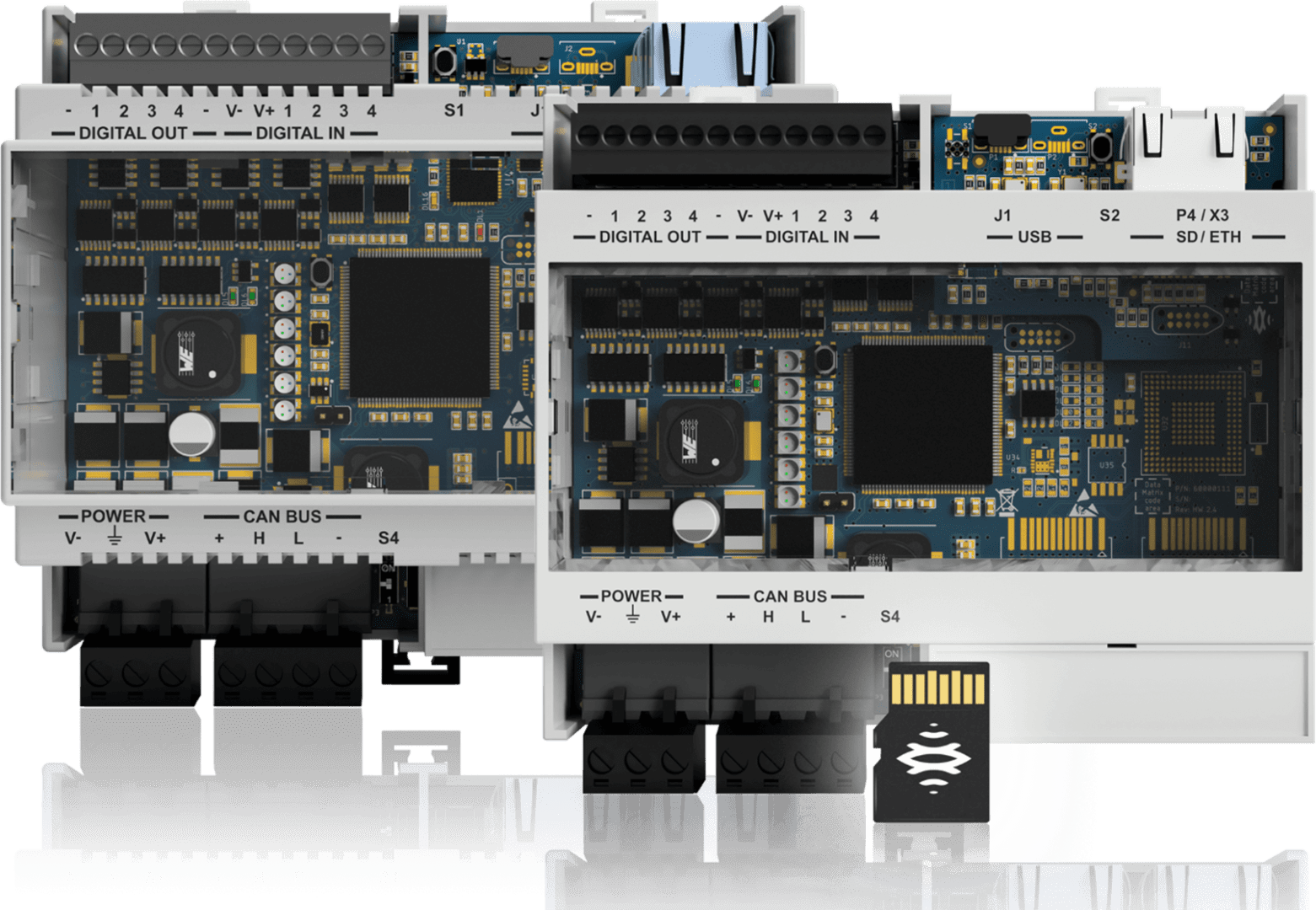

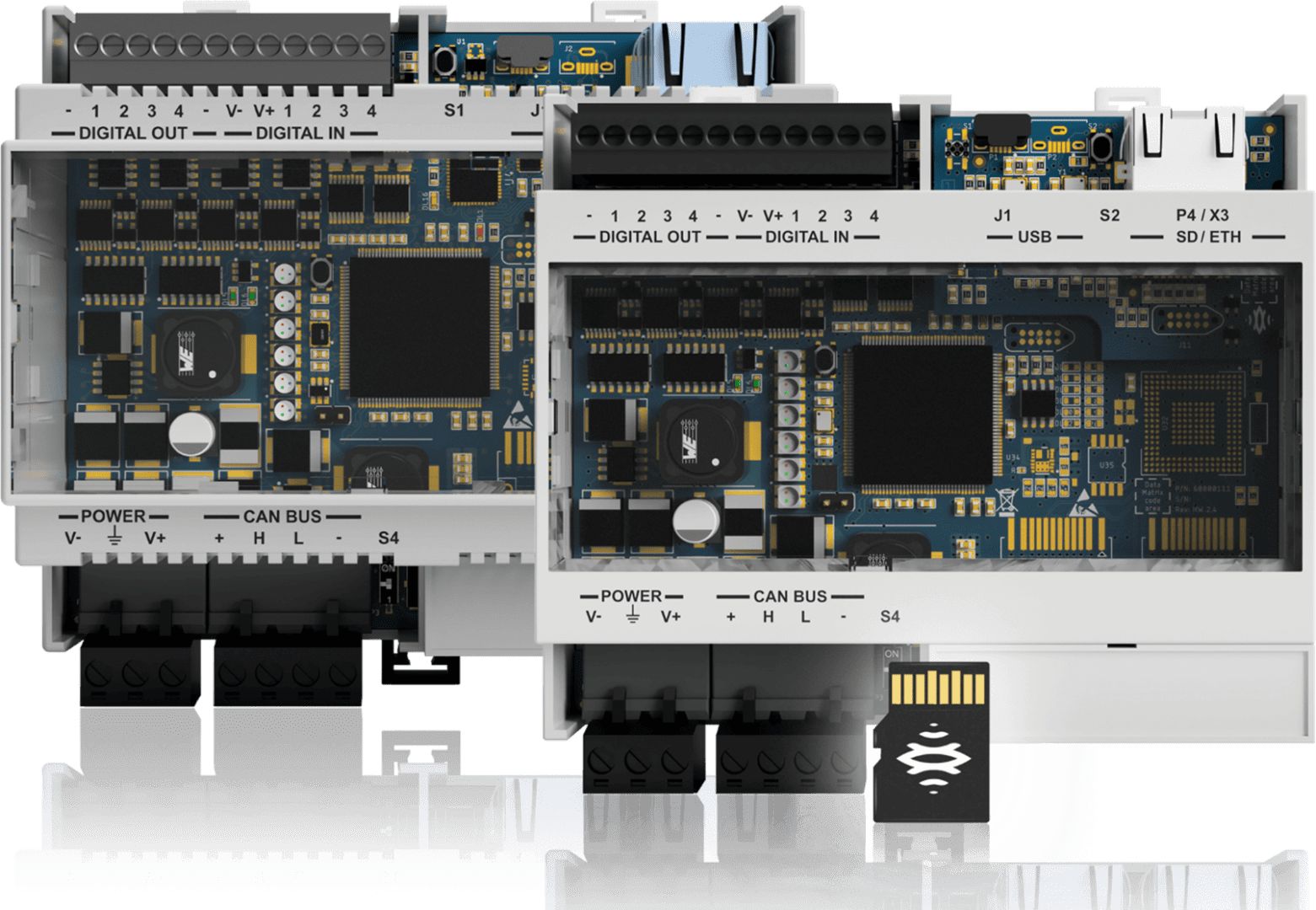

C202A & C202B Control Units by Inxpect

C202A | C202B

Ethernet and digital I/O

C202 offers both USB and Ethernet communication interfaces, providing local and remote configuration options. In both cases, the Inxpect Safety Application allows the configuration of sensitivity levels, safety functions, size of detection fields, and the functionality of the I/O ports of the control unit.
Secure Ethernet
Remote configuration and management protected by industry standard cyber security protocols.
USB
Local configuration option.

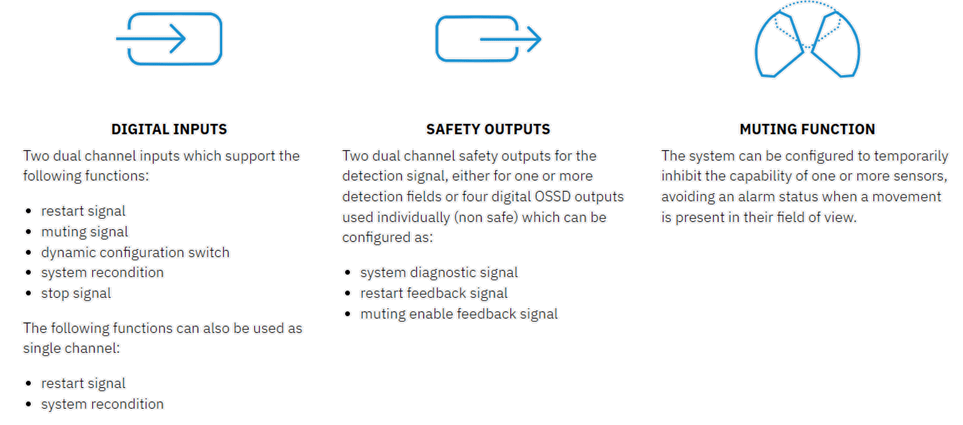

Digital inputs
The system has two TYPE3 dual channel inputs. Alternatively, the four channels can be used as single channel digital inputs (category 2). Supporting the following functions
• muting signal
• emergency stop signal
• restart signal
Four Output Signal Switching Devices
As safety outputs:  two dual-channel safety OSSDs.
As auxiliary outputs:  four auxiliary outputs, which can be
configured as signal restart feedback, fault, muting status.

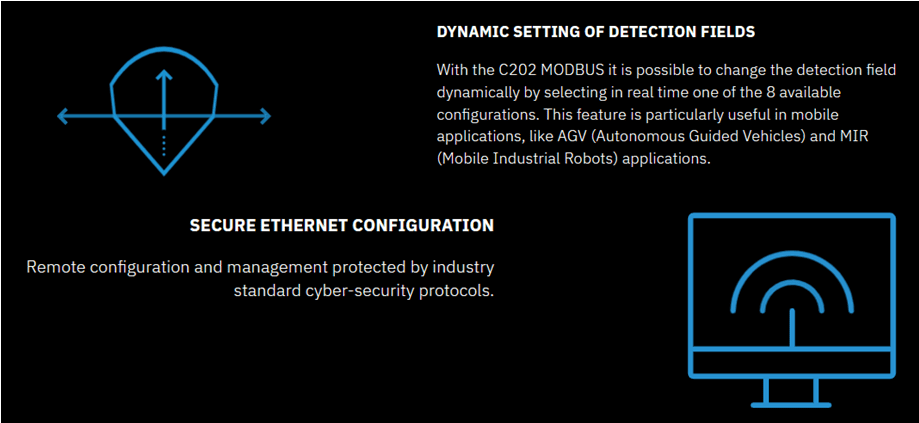

Dynamic setting of detection fields
There are up to 8 configurations switchable in real time.
SD backup, SD restore
Configurations and login credentials can be saved and restored via microSD card (only for C202B).
