C203A & C203B Control Units by Inxpect

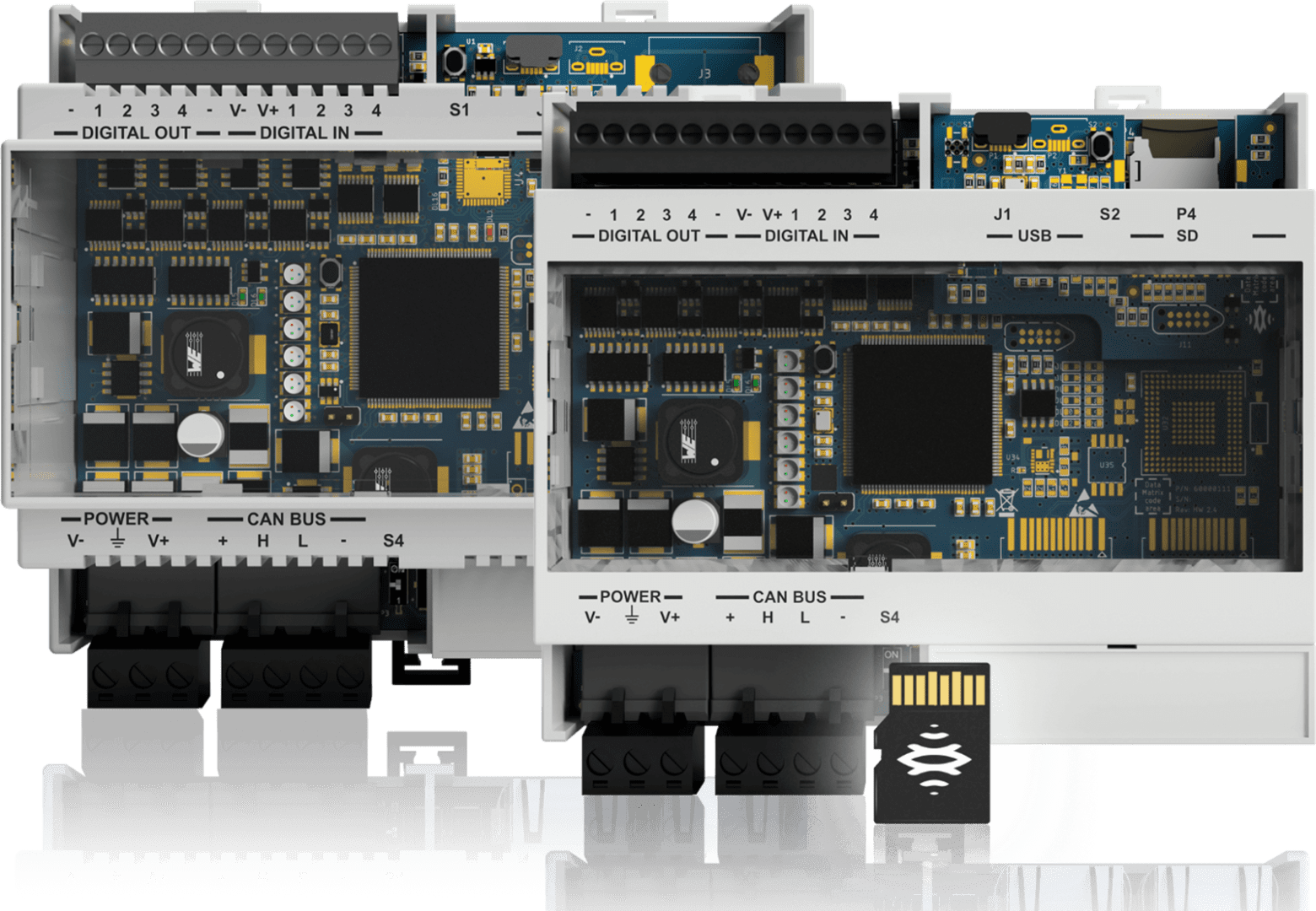

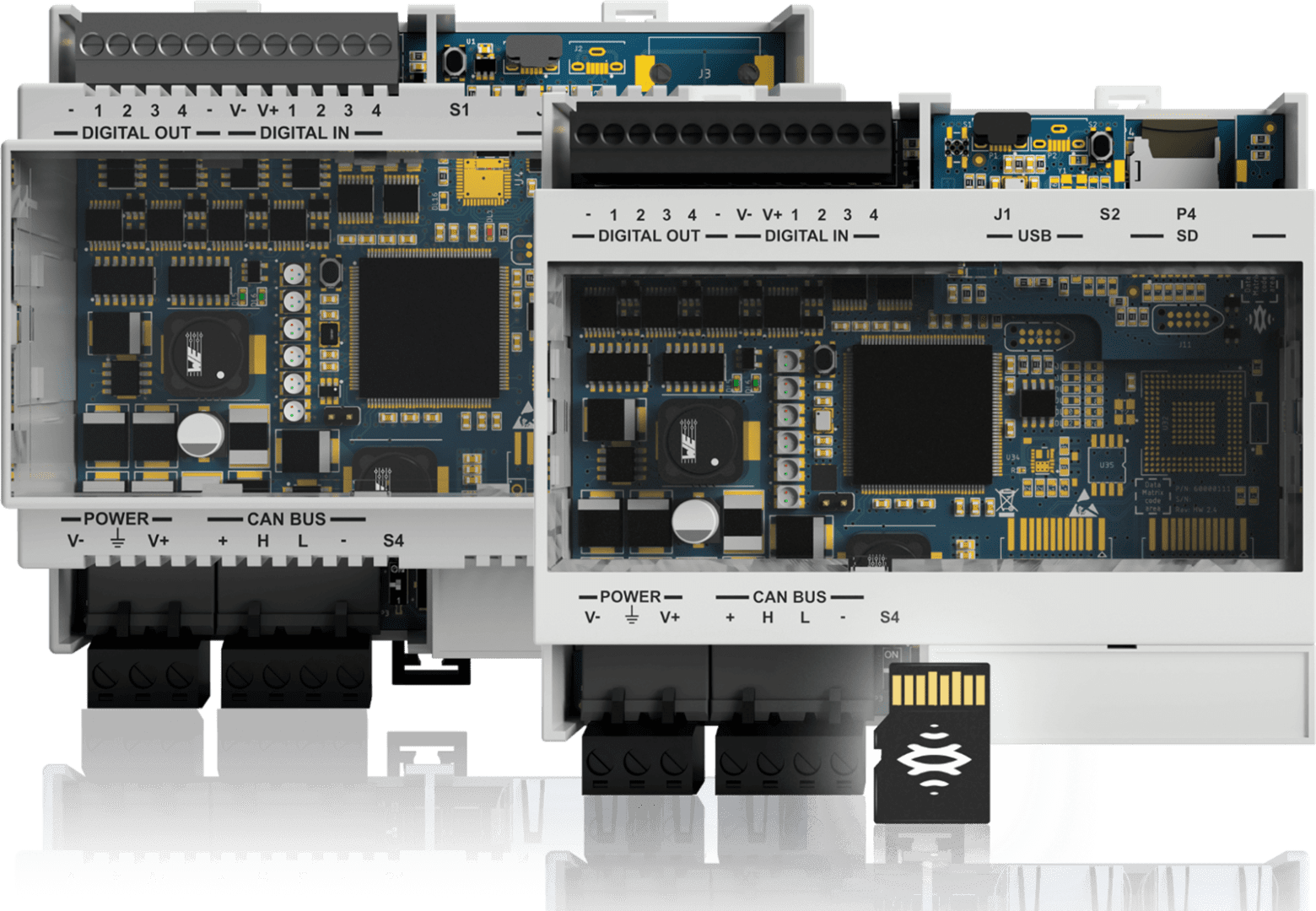

Close-up of two electronic circuit boards with connectors and chips.

C203A | C203B

Digital I/O

C203 provides basic but robust control functionality for any Inxpect safety radar sensor. The Inxpect Safety Application works via USB to configure the sensitivity levels, safety functions, size of detection fields, and the
functionality of the I/O ports of the control unit.
USB
Local configuration option.

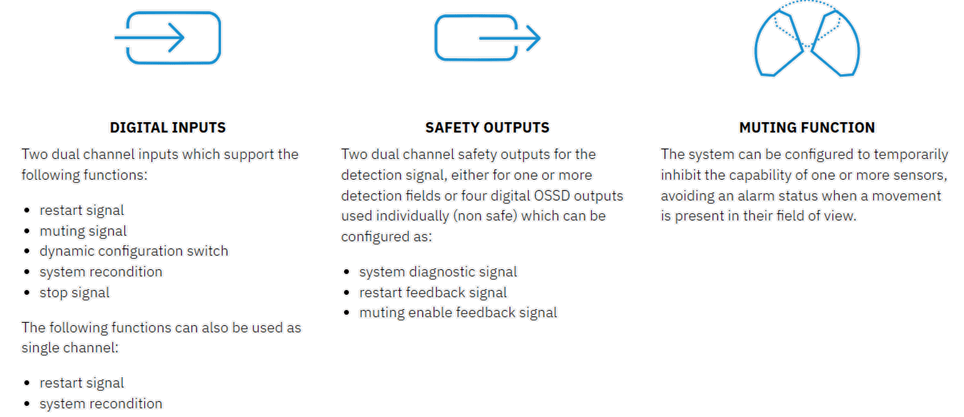

Digital inputs
The system has two TYPE3 dual channel inputs. Alternatively, the four channels can be used as single channel digital inputs (category 2).
Supporting the following functions:
• muting signal
• emergency stop signal
• restart signal
Four Output Signal Switching Devices
As safety outputs:  two dual-channel safety OSSDs.
As auxiliary outputs:  four auxiliary outputs, which can be configured as signal restart feedback, fault, muting status.

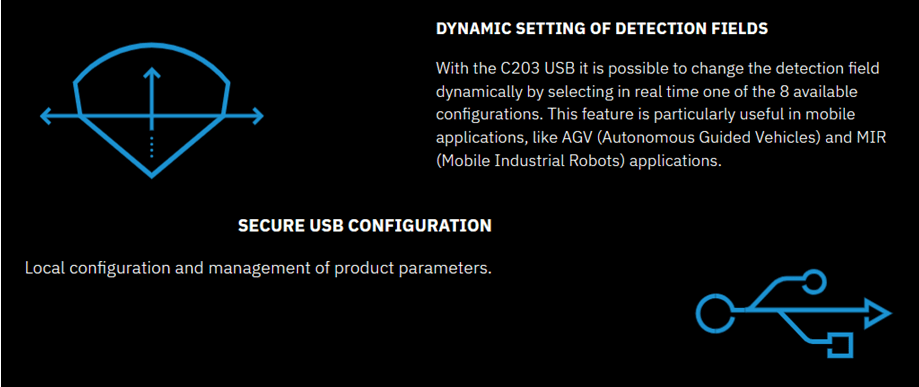

Dynamic setting of detection fields
There are up to 8 configurations switchable in real time.
SD backup, SD restore
Configurations and login credentials can be saved and restored via microSD card (only for C203B).

Close-up of technical text on a screen about dynamic setting and USB configuration.
Safety output wiring diagram with two dual-channel safety outputs and diagnostic signals.

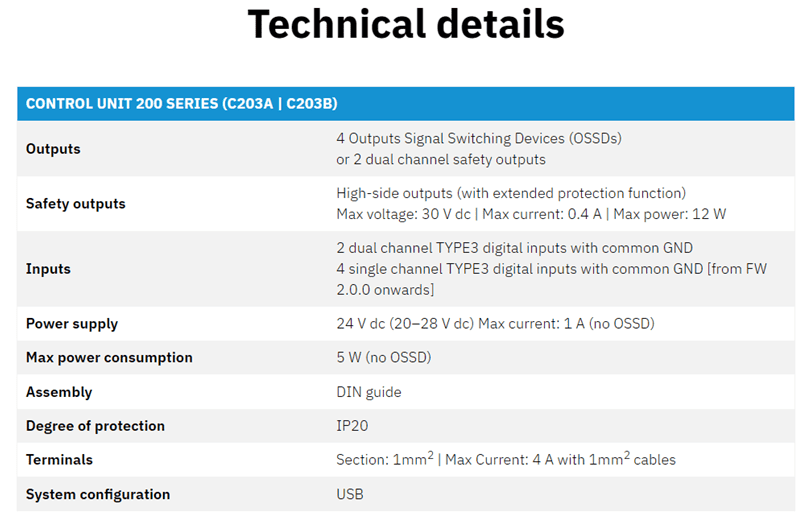

Technical specifications of a 4-channel signal switching device.

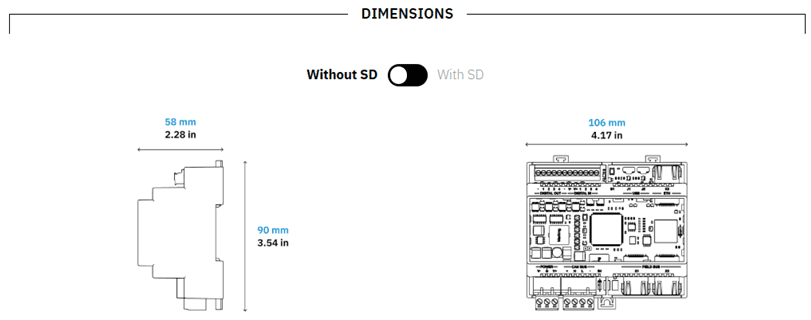

Technical drawing showing dimensions of a device, 90 mm wide.

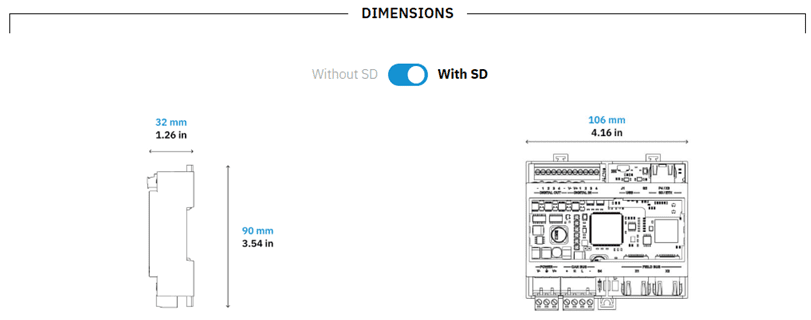

Dimensions diagram of a device with SD card slot shown in millimeters and inches.
