Composite Cylinders by Compact Air

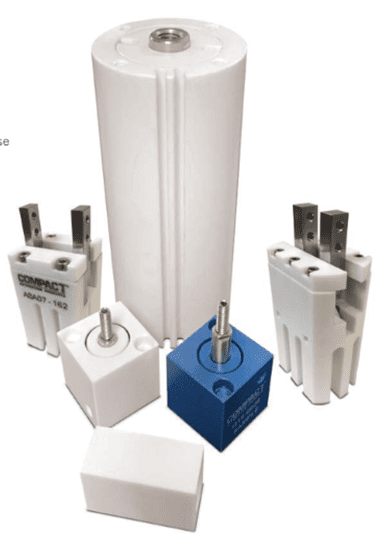

Compact Composite Cylinders are your complete motion control solution for medical and food grade applications, or wherever lightweight, washdown and corrosion resistance is required.

With a wide range of both imperial and metric composite cylinders to choose from, we can offer a completely configurable and repairable product to meet all of your motion control needs.

• Inch series – 1/2”, 3/4", 1-1/8”, 1-3/8”, 1-5/8” and 2” bore, round and square body styles with strokes lengths up to 4”.
• Metric series – 8mm, 12mm, 20mm, 25mm and 40mm bore, rectangle style body with strokes up to 100mm
• Magnetic pistons available
• Standard, Half-Husky and Full Husky duty types available
• Same envelope dimensions and mounting as the standard Inch and Metric series
• Operating pressure:

- 125 psi for 1/2", 8mm and 12mm bores
- 150 psi for 3/4”– 2” and 20mm – 40mm bores

• Dow 33 lubricant
• Standard mounting options as Inch and Metric Series Cylinders
• Custom options available
• Fully repairable composite cylinders
• FDA approved composite cylinders
