CTL Linear Unit by Unimotion

Manufacturer: Unimotion

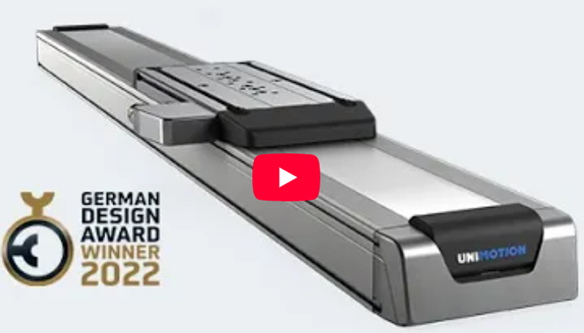

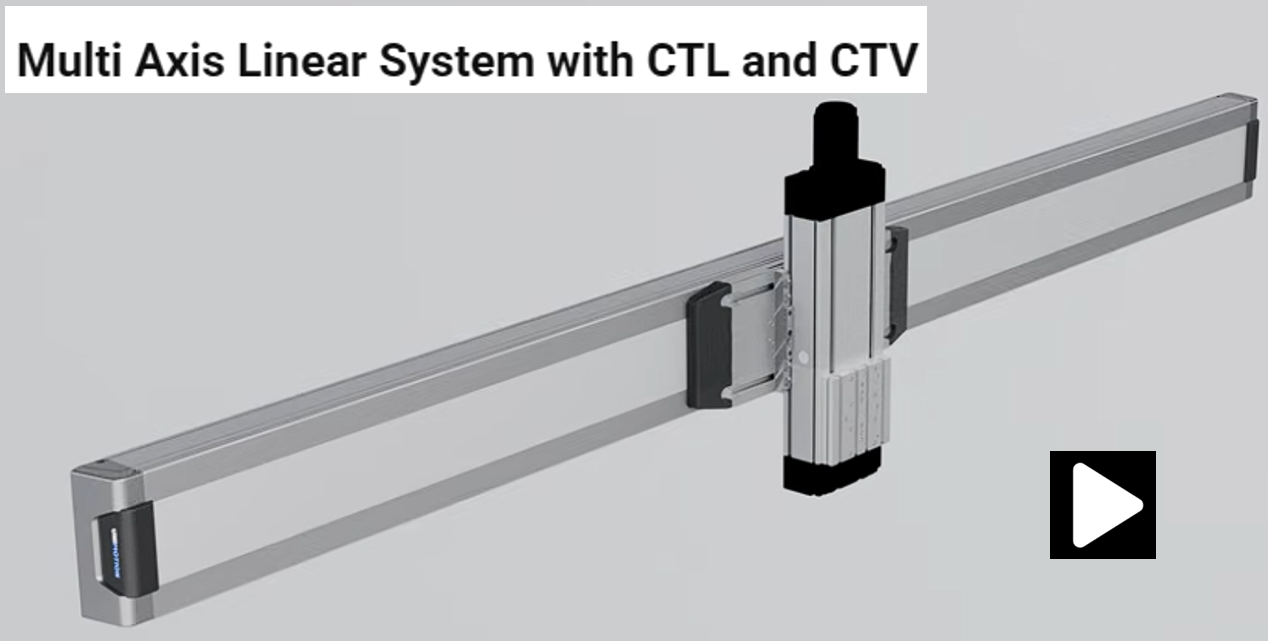

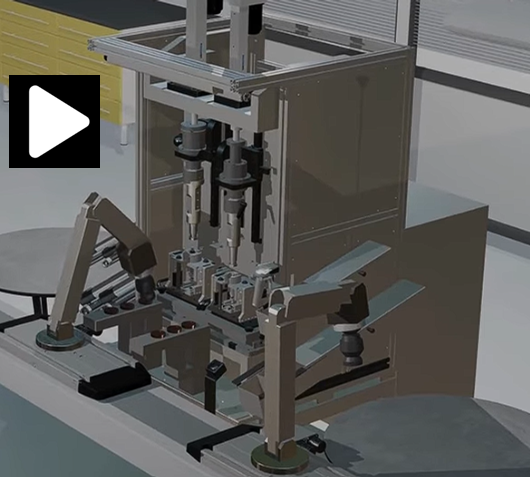

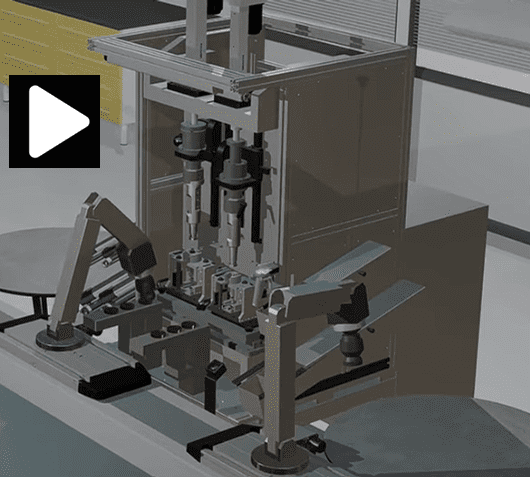

CTL linear units are the latest addition to the Unimotion linear unit sales program. CTL is a linear unit with integrated linear motor. High accuracy is achieved by using precision linear guides while the motor enables high dynamics. Due to the linear motor drive the CTL linear units are backlash free. Compact dimensions and different motor lengths cover a wide range of applications. Optionally they can be equipped with energy chains, specifically suitable for highly dynamic and low noise applications.

Key benefits:

• 3 different size series (145, 200, 250) each with long or short carriage
• Strokes up to 5970 mm
• Continuous force up to 1125 N
• Peak force up to 2475 N
• Low speed and high-speed option
• Repeatability precision down to 0,001 mm
• Lower moving mass
• Higher dynamics (in corelation with lower mass)
• Low maintenance
• optional: silent high-speed cable chain with stainless steel guiding channel

Optional Hall sensor

AD Hall Sensor

Universal Hall Sensor option with an Analog and Digital output.

Encoder compatibility

System integration

BISS-C
SSI + SinCos
Endat 2.2®
DriveCliQ®
HIPERFACE® + SinCos
HIPERFACE DSL®

Smooth integration with controllers from Siemens, Beckhoff, Bosch-Rexroth, Fanuc, Mitsubishi, Panasonic, and Yaskawa.

Multi encoder support

CTL linear units offer a wide range of standard incremental and absolute linear encoders interfaces, including safety (SIL2-PLd) types.

Measurement system

CTL linear units offer a wide range of different built-in measurement systems.

Repeatability precision

The combination of linear motor drive and measurement system offers a repeatability precision up to ±0,001 mm.

Different Built-in Measurement Systems

We offer a wide range of different built-in measurement systems. The combination of linear motor drive and measurement system offer a repeatability precision up to 0,001mm.
Unimotion CTL linear units come with Universal Hall Sensor option with an integrated Analog and Digital function.
Key benefits:
• In house developed linear motors
• Optional hall sensor

Cleanroom certified

UNIMOTION’s CTL Linear Units are now ISO 3 cleanroom certified, meeting rigorous environmental standards for highly controlled cleanroom operations.

Enhanced applications

ISO 3 clean room certification makes the units ideal for high-precision environments like semiconductor manufacturing, pharmaceuticals, medical technology and many more.
