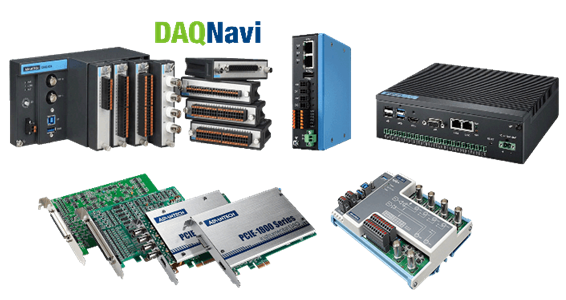

Data Acquisition (DAQ) by Advantech
Advantech DAQ offers a wide range of data acquisition and signal condition devices with various interfaces: PCI and PCIE cards, USB and iDAQ modules.

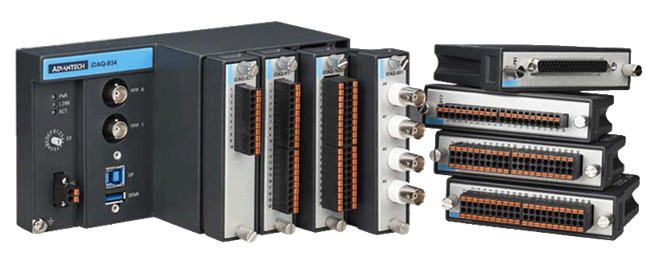

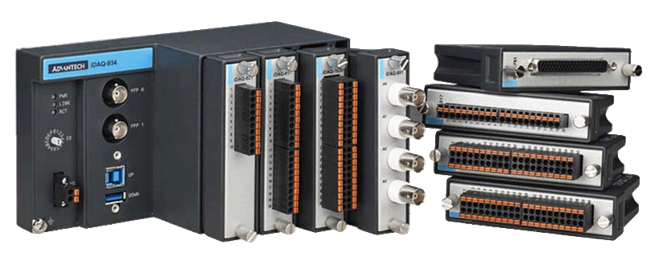

Modular DAQ System
The iDAQ series is a modular data acquisition system with chassis and I/O modules.
Modular High Speed DAQ Platform for Test & Measurement
Driven by the rise of edge computing, the industry is shifting toward modular DAQ systems for their flexibility, scalability, and edge-ready design—addressing key challenges such as long-range data transmission, complex multi-parameter component testing, and limited space within test setups.
Advantech’s iDAQ Series meets this demand with a rugged, modular platform that simplifies complex measurements through customizable I/O, seamless synchronization, and USB/Ethernet connectivity—delivering efficient, reliable mixed-signal acquisition in harsh environments.
Chassis/ Base Unit
iDAQ-900 Series base units (USB, Ethernet, standalone) offer plug-and-play setup and 10–30VDC input for easy deployment in industrial use.

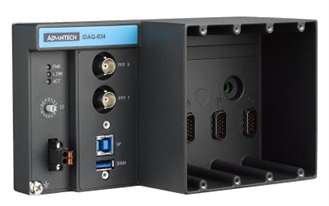

iDAQ-934
4-Slot USB 3.0 iDAQ Base Unit
- Built-in USB 3.0 SuperSpeed hub
- Wide-range power input
- LED status indicators
- Physical ID switch for multiple module identification
- 4 x iDAQ slots
- 2 x programmable function pins for timing signals (trigger, clock) input/output

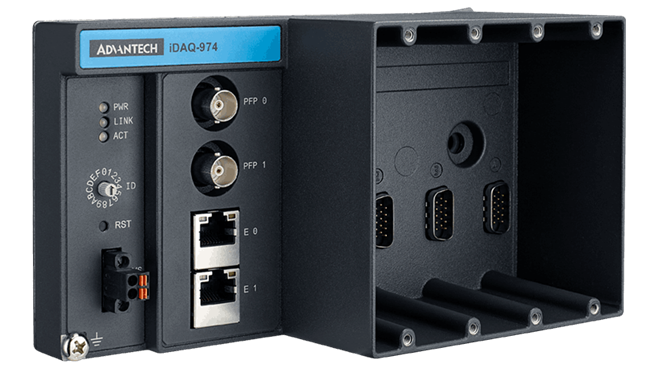

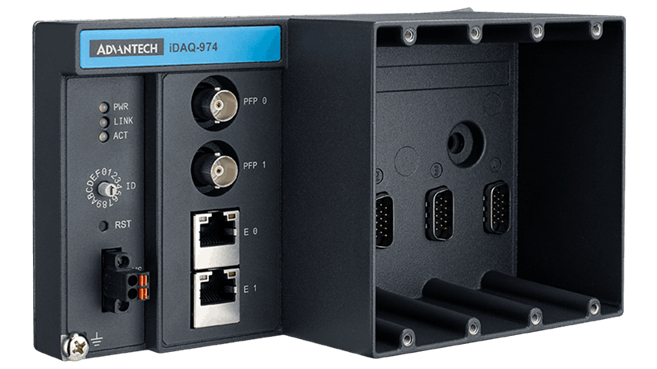

iDAQ-974
4-slot GbE Industrial DAQ Chassis
- Giga-bit Ethernet data interface, supporting daisy chain
- Wide range power input
- LED status indicators
- Physical ID switch for multiple module identification
- 4 x iDAQ slots
- 2 x programmable function pins for timing signals (trigger, clock) input/output

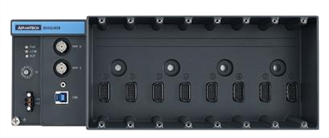

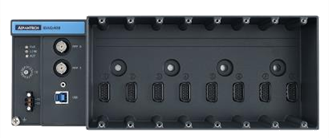

iDAQ-938
8-slot USB 3.0 iDAQ Base Unit
- USB 3.0 SuperSpeed
- Wide range power input
- LED status indicators
- Physical ID switch for multiple module identification
- 8 iDAQ slots
- 2 programmable function pin for timing signal (trigger, clock) input/output
iDAQ-964
4-slot Industrial DAQ Chassis Module for AMAX-5000
- PCIe interface connecting to AMAX-5000 series controllers
- LED status indicators
- 4 iDAQ slots
- 2 programmable function pin for timing signal (trigger, clock) input/output
Analog I/O Modules
iDAQ-800 Series delivers up to 24-bit, 1 MS/s acquisition with 600 VRMS isolation and sync, ideal for accurate, high-speed industrial measurements.

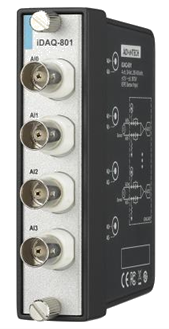

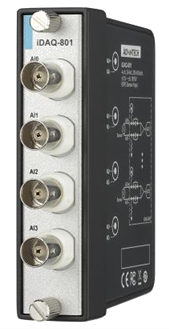

iDAQ-801
256kS/s/ch, 24-bit, 4-ch iDAQ Module for IEPE Sound and Vibration
- Hot-swappable in iDAQ system
- 4-ch simultaneous sampling up to 256kS/s
- 24-bit resolution
- Direct IEPE supply
- Anti-aliasing filter equipped
- High gain up to ±187.5mV input range

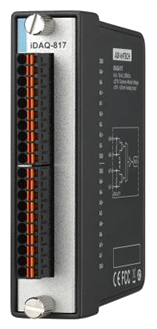

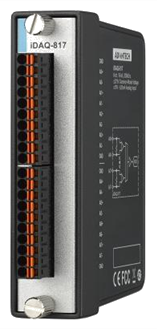

iDAQ-817
200kS/s, 16-bit, 8-ch Analog Input iDAQ Module
- Hot-swappable in iDAQ system
- Detachable Euro-type spring terminal connectors
- 8 x 16-bit analog input channels with 600VRMS isolation
- Supports voltage and current measurements
- Wide common-mode voltage range (±275 V)
iDAQ-871
4-ch, 24-bit, 25.6kS/s, Full/Half/ Quarter Bridge Input iDAQ Module
- High resolution (24-bit)
- All types of bridges supported (full, half and quarter)
- Software-configurable and multiple bridge completion flexibility
- Synchronization along with other iDAQ modules
- Multiple trigger modes for flexible configured acquisition timing
- Built-in digital filter for higher SNR

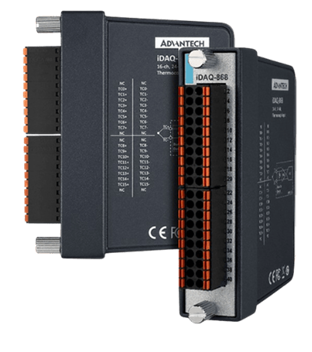

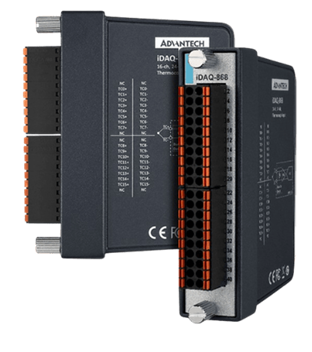

iDAQ-868
16-ch, 24-bit Thermocouple Input iDAQ Module
- Hot-swappable in iDAQ system
- 16-channel thermocouple sampling
- 24-bit resolution
- 50/60Hz rejection filter available
- Wide range of thermocouples supported
- Isolation protection up to 600VRMS
MORE OPTIONS AVAILABLE - CONTACT AIR-OIL SYSTEMS FOR DETAILS
Digital I/O Modules
iDAQ-700 Series offers 600 VRMS isolation, sync acquisition, debounce filtering, and precise triggering with counter and position comparison functions

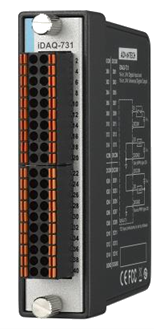

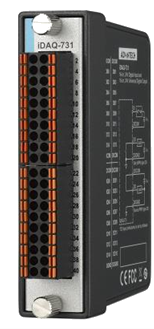

iDAQ-731
16-ch Isolated DI, 16-ch Isolated DO iDAQ Module
- Hot-swappable in iDAQ system
- Euro-type spring terminal blocks
- 32-ch isolated DI/O (16-ch digital input, 16-ch digital output)
- High output driving capacity
- Interrupt handling capability
- Digital output type changeable between sink (NPN) type and source (NPN) type
- Isolation protection of 600 VRMS
- Support buffered acquisition/update rate up to 10kHz

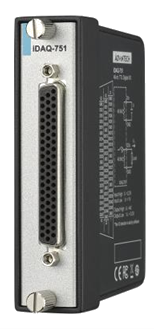

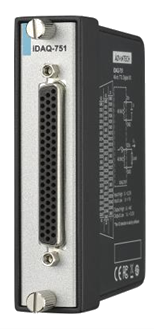

iDAQ-751
48-ch TTL DI/O iDAQ Module
- Hot-swappable in iDAQ system
- Detachable Euro-type spring terminal connectors
- 48-channel TTL digital I/Os
- Configurable digital I/O direction
- Isolation protection of 60 VDC
- Supports buffered acquisition/update rates up to 200kHz

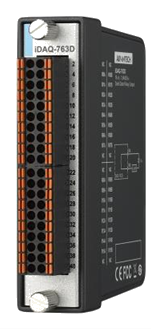

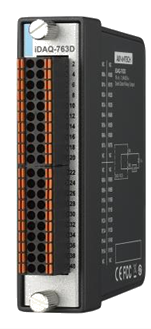

iDAQ-763D
16-ch SSR Output iDAQ Module
- Hot-swappable in iDAQ system
- Detachable Euro-type spring terminal connectors
- 8-ch Form A solid-state relay (SSR) output
- 600VRMS isolation for relay outputs
- Supports buffered update rates up to 500Hz

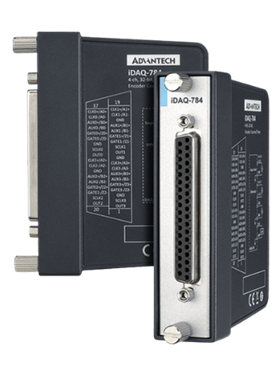

iDAQ-784
4-ch, 32-bit Encoder Counter/Timer iDAQ Module
- 4x 32-bit encoder/counter
- Support encoder modes: Quadrature (X1, X2, X4), Two-pulse (CW/CCW), Pulse-direction (Signed Pulse)
- Programmable trigger output (preload FIFO) for position comparison
- Compare output as trigger or conversion clock to iDAQ modules via iDAQ chassis
- Built-in digital filter
- Buffered acquisition synchronized with other iDAQ modules
DAQ-embedded Computer
MIC-1800 series units are standalone embedded computers with integrated data acquisition modules and signal conditioning.

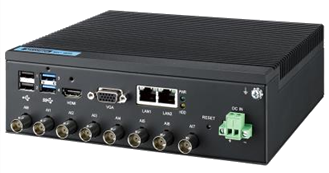

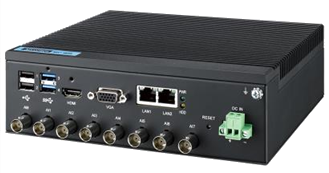

MIC-1842
12-Bit, 20MS/s, 8/4-ch AI Platform with Intel® Core™ i5/Celeron® Processor
- 8 x Simultaneously Analog Inputs, up to 20 MS/s, 12-bit resolution
- Supports digital and analog triggers
- 32-ch TTL digital I/O
- Onboard FIFO memory (16 K samples)
- 2 x RS-232 ports
- 2 x 10/100/1000 Base-T RJ-45 LAN ports
- 2 x USB 2.0 and 2 x USB 3.0 ports
- iDoor expansion supported

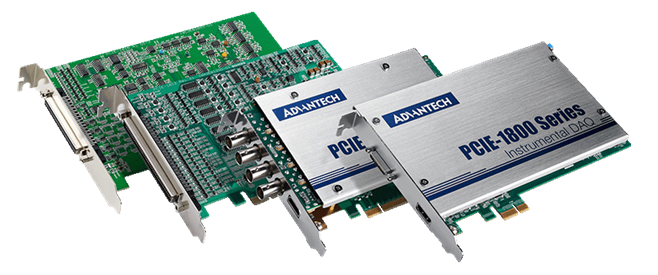

DAQ Cards
DAQ cards are high-speed yet cost-saving products, including PCI DAQ and PCIe DAQ that feature multifunction I/O selections such as analog I/O.
Multifunction
Multifunction cards provides analog input, analog output, digital input, digital output, and counter/timer for voltage measurements.
PC-based testing and measurement systems are widely used in IEM applications such as monitoring, control, data acquisition and automated testing. Dependable results require optimal matching of transducers, data acquisition systems, and software.
Advantech provides various PCIE cards to cover different applications such as voltage, current, and vibration measurement.Advantech's next-generation software and driver package, DAQNavi, helps programmers develop their own application programs. Delivering comprehensive hardware plus software solutions fully addresses customer needs.
PCIE-1812
250 kS/s, 16-bit, 8-ch, Simultaneous Sampling, Multifunction PCIE Card
- 8 differential simultaneous sampling analog inputs, up to 250 kS/s, 16-bit resolution
- 2 analog outputs, up to 3 MS/s, 16-bit resolution
- Full auto-calibration
- 2 analog triggers and 2 digital triggers for AI/O
- 32 programmable DI/Os with interrupt functions
- Four 32-bit programmable counters/ timers/ encoders
- Board ID switch
- Support for Microsoft Windows 10/11
PCIE-1816H
5 MS/s, 16-bit, 16-ch Multifunction PCIE Card
- 16 analog inputs, up to 5 MS/s, 16-bit resolution
- 2 analog outputs up to 3 MS/s, 16-bit resolution
- Support Analog and Digital Trigger for AI/O
- Support Waveform generation for AO
- 24 programmable digital I/O lines
- Two 32-bit programmable counter/timers
- Onboard FIFO memory (8k samples)
- Support for Microsoft Windows 10/11 and Linux
PCI-1710
100 kS/s, 12-bit, 16-ch Universal Multifunction PCI Card
- 16-ch single-ended or 8-ch differential or a combination of analog input
- 12-bit A/D converter, with up to 100 kHz sampling rate
- Onboard programmable counter
- Two 12-bit analog output channels
- 16-ch digital input and 16-ch digital output
- Automatic channel/gain scanning
- Onboard FIFO memory (4,096 samples)
- Programmable gain
- BoardID™ switch
PCI-1712
1 MS/s, 12-bit, 16-ch Multifunction PCI Card
- 16 single-ended or 8 differential or a combination of analog inputs
- 12-bit A/D converter, with up to 1 MHz sampling rate
- Two 12-bit analog output channels with continuous waveform output function
- 16-ch digital input and 16-ch digital output
- Three 16-bit programmable multifunction counter/timers on 10 MHz
- Programmable gain
- Automatic channel/gain scanning
- Onboard FIFO memory (AI: 1,024 samples AO: 32,768 samples)
- Auto-calibration (AI/AO)
- PCI-Bus for data transfer
- Pre-, post-, about- and delay-trigger data acquisition modes for analog input channels
- Flexible triggering and clocking capabilities
MORE OPTIONS AVAILABLE - CONTACT AIR-OIL SYSTEMS FOR DETAILS
Analog Input
Advantech analog input card provide AI channels that provide continuous, non-stop, high-speed, streaming A/D data conversion samples to host memory.
PC-based testing and measurement systems are widely used in IEM applications such as monitoring, control, data acquisition and automated testing. Dependable results require optimal matching of transducers, data acquisition systems, and software.
Advantech provides various PCIE cards to cover different applications such as voltage, current, and vibration measurement.Advantech's next-generation software and driver package, DAQNavi, helps programmers develop their own application programs. Delivering comprehensive hardware plus software solutions fully addresses customer needs.
PCIE-1805
1MS/s, 16-bit, 32-ch Analog Input PCIE Card
- 32-ch single-ended or 16-ch differential or a combination of analog input
- 16-bit A/D converter, with up to 1MHz sampling rate
- Multi-card synchronization
- Current measurement (0-20mA or 4-20mA)
- Support digital and analog triggers
- Auto calibration
PCIE-1840
125 MS/s, 16-bit, 4-ch Simultaneous Digitizer
- 4 simultaneous analog inputs, up to 125MHz, 16-bit resolution
- 500MHz Time Interleaved Sampling
- Non-stop data streaming capable
- 2 GB on-board memory
- 1M or 50 Ohm selectable input impedance
- On-Board tunable anti-aliasing filter
- AC/DC Coupling

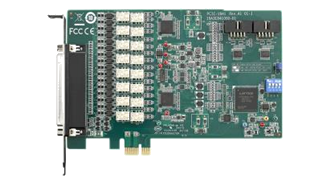

PCIE-1841
16/8-ch, 18-bit, 1MS/s/ch Simultaneous Analog Input PCI Express DAQ Card
- 16/8-ch simultaneous sampling up to 1 MS/s
- 18-bit resolution
- Software selectable low-pass filter
- Wide input range up to 40 Vpp (±20 V range)
- Support both voltage and current measurement
- Multiple selectable trigger modes
PCI-1713U
100 kS/s, 12-bit, 32-ch Isolated Analog Input Universal PCI Card
- 2,500 VDC isolation protection
- 32-ch single-ended or 16-ch differential or a combination of analog input
- 12-bit resolution for A/D conversion
- Programmable gain for each input channel
- Software, internal or external pacer sampling modes supported
- Onboard FIFO memory: 4,096 samples;
- Universal PCI bus
- BoardID™ switch
MORE OPTIONS AVAILABLE - CONTACT AIR-OIL SYSTEMS FOR DETAILS
Analog Output
Advantech analog output cards are ideal for DAQ applications where multiple analog output channels are required.
PC-based testing and measurement systems are widely used in IEM applications such as monitoring, control, data acquisition and automated testing. Dependable results require optimal matching of transducers, data acquisition systems, and software.
Advantech provides various PCIE cards to cover different applications such as voltage, current, and vibration measurement.Advantech's next-generation software and driver package, DAQNavi, helps programmers develop their own application programs. Delivering comprehensive hardware plus software solutions fully addresses customer needs.
PCI-1723
16-bit, 8-ch Analog Output PCI Card with 16-ch Digital I/O
- Auto calibration function
- A 16-bit DAC is equipped for each analog output channel
- Synchronized output function
- Output values retained after system hot reset
- 2-port (16-channel) user-defined digital input/output
- BoardID™ switch
PCI-1727U
14-bit, 12-ch Analog Output Universal PCI Card with 32-ch Digital I/O
- 12 independent analog output channels
- Fuse on each channel
- Universal PCI for 5 V and 3.3 V support
- BoardID™ switch
- Synchronized output function
PCI-1724U
14-bit, 32-ch Isolated Analog Output Universal PCI Card
- 32 high-density analog output channels
- Flexible Output Range: +/-10 V, 0 ~ 20 mA and 4 ~ 20 mA
- Synchronized output function
- Keeps output values after system hot reset
- BoardID™ switch
PCIE-1824
16-bit ,32/16-ch Analog Output PCIE Card
- 32/16 high-density analog output channels
- Flexible Output Range: ±10 V, 0 ~ 20 mA and 4 ~ 20 mA
- Synchronized output function
- Keep output values when hot system reset
- High ESD protection (2,000 VDC)
- Board ID switch
MORE OPTIONS AVAILABLE - CONTACT AIR-OIL SYSTEMS FOR DETAILS
USB Modules
The USB DAQ series include various USB I/O modules supporting multifunction industrial USB. They are easy to deploy and install.
USB-5860
8-ch Isolated Digital Input and 8-ch Relay USB 3.0 I/O Module
- USB 3.0 SuperSpeed
- Daisy chainable by built in USB hub
- 8-ch Isolated Digital Input and 8-ch Form A-type Relay Output
- Wide input voltage range (10 ~ 30 VDC)
- High-voltage isolation on input channel (2,500 VDC )
- Quick removable European type connector
- LED indicators for I/O status
- Supported operating systems: Windows 10/11
USB-5820
4-ch, 16-bit, 200 kS/s Isolated Analog Output USB 3.0 I/O Module
- USB 3.0 SuperSpeed
- Daisy chainable by built-in USB hub
- 4 x 16-bit analog output channels with 2,500 V DC isolation
- Multiple voltage and current output ranges
- Removable European-type connector
- Supported operating systems: Windows 10/11
USB-4704
48 kS/s, 14-bit, 8-ch Multifunction USB Module
- Supports USB 2.0
- Bus-powered
- 8 x analog input channels
- 14-bit resolution AI
- Sampling rate up to 48 kS/s
- 8-ch DI/8-ch DO, 2-ch AO and one 32-bit counter
- Portable
USB-5801
4-ch, 24-bit, 192 kS/s USB 3.0 I/O Module for Sound and Vibration (with AO and Tachometer)
- USB 3.0 SuperSpeed and daisy chainable by built-in USB hub
- 4x simultaneously sampled analog inputs, up to 192 kS/s
- 24-bit resolution ADCs with -94 dB total harmonic distortion plus noise (THD+N)
- Built-in anti-aliasing filter
- 2 mA integrated electronic piezoelectric (IEPE) excitation currents
- 2 analog outputs with update rate up to 192 kS/s
- 24-bit resolution DACs with -90 dB total harmonic distortion plus noise (THD+N)
- 2 tachometer inputs for period or frequency measurement
- 4-ch isolated digital input and 4-ch isolated digital output
MORE OPTIONS AVAILABLE - CONTACT AIR-OIL SYSTEMS FOR DETAILS
PC-104/PCI-104 DAQ & Communication Cards
PC/104 Single Board Computer modules include embedded DAQ, PC/104 DAQ, and PC 104 add-on peripheral modules - perfect for space limited applications.
PCM-3680
2-port CAN-bus PC/104 Module with Isolation Protection
- Operates two separate CAN networks at the same time
- High speed transmission up to 500 kbps
- Optical isolation protection of 1,000 VDC ensures system reliability
- 16 MHz CAN controller frequency
- Wide IRQ selection for each port: IRQ 3, 4, 5, 6, 7, 9, 10, 11, 12, 15
- LEDs indicate Transmit/Receive status on each port
- Direct memory mapping enables very fast access to the CAN controllers
- Windows DLL library and examples included
- Supports Windows 2000/XP/Vista and Linux
AIIS-1882
4-ch PWM Lighting Control for AIIS Vision System
- Designed specifically for machine vision applications
- 4-ch lighting control output with trigger input
- Programmable delay time, PWM high/low time, and output lighting duration
- Up to 350 mA and 40 VDC digital output capability by external power
- 12-ch isolated digital input and 16-ch isolated digital output
- Software configurable digital filter for isolated digital input and trigger
- Software selectable sink (NPN)/source (PNP) type for isolated digital output
- 2,500 VDC isolation protection for all I/O signals
PCM-3612I
4-port RS-232/422/485 PCI-104 Module
- Automatic RS-485 data flow control
- LED indicators: TX, RX
- Standard PC ports: COM1, COM2, COM3, COM4 compatible
- Supports Windows 7/8/10
- Linux driver
- Powerful and easy-to-use utility (ICOM Tools)
PCM-3724
48-ch Digital I/O PC/104 Module
- 48 TTL digital I/O lines
- Output status read-back
- Channels simulate 8255 PPI mode 0
- Interrupt triggering, rising/falling edge
Signal Conditioning Modules and Terminal Boards
Signal conditioning modules are cost-saving, isolation-based, easily installed, and field configurable. Ideal for industrial applications.
Signal Conditioning Modules
Signal conditioning modules provide signal conditioning on a per-module basis for various types of sensor or signal.
ADAM-3016
Isolated Strain Gauge Input Module
- 1000 VDC 3-way optical isolation
- Switch configurable mV or V input of full bridge
- Switch configurable voltage and current outputs
ADAM-3014
Isolated DC Input/Output Module
- 1000 V DC , fully isolated
- Easy input/output range configuration
- Low power consumption, 0.85 W (Voltage Output)
- Wide input/output range
- Flexible DIN-rail mounting
- Operates from single +24 VDC
- Temperature range 0 to 70°C
ADAM-3112
Isolated AC Voltage Input Module
- 0 ~ 450 VAC to 0 ~ 5 VDC
- AC voltage measurement
- 1,000 VDC isolation between output and power
- 2,500 VAC isolation between output and input
- Input impendent: 2 Mohm
- Multi input modes
- Accuracy: ±0.1% FSR
- Flexible Din-rail mounting
- Operates from a single +24VDC
I/O Wiring Terminal Boards (ADAM-3900 & PCLD Series)
ADAM-3000 series consists of cost-effective, configurable, isolated signal conditioning modules. They are able to operate in harsh environments.
ADAM-3909
DB9 DIN-rail Wiring Board
- Low cost universal DIN-rail mounting screw terminal module for PC-LabCard™ products with DB9 connector
- Case dimensions (W x L x H): 77.5 x 45 x 51 mm (3.1" x 1.8" x 2.0")
- To Be Used With PCI-1714U/UL, PCL-728, PCL-740, PCL-741, PCL-743B, PCL-745B
ADAM-3951
50-pin DIN-rail Wiring Board w/ LED Indicators
- Low-cost DIN-rail mounting wiring terminal module for PCI-1752/1754/1756 with 50-pin SCSI female connector
- Screw-clamp terminal blocks allow easy and reliable connections
- Each LED indicates its current bi-directional I/O logic status with either green or red light
- Case dimensions (W x L x H): 77.5 x 179.5 x 41.5 mm (3.1" x 7.1" x 1.6")
- To Be Used With PCI-1752U, PCI-1754, PCI-1756
ADAM-3968/50
68-Pin to Two 50-Pin Converter Module
- DIN-rail mounting terminal for industrial applications with 68-pin SCSI-II female connector
- Converts one 68-pin SCSI-II connector to 50-pin Opto-22 compatible box headers
- Case dimensions ( W x L x H) : 77 x 101 x 54.3 mm (3.0 " x 4.0 x 2.1)
- To be used with PCI-1751,PCI-1753,PCI-1753E
PCLD-8710
DIN-rail Wiring Terminal Board with CJC Circuit
- Low-cost screw-terminal with 68-pin SCSI-II connector
- Onboard CJC (Cold Junction Compensation) circuits for direct thermocouple measurement
- Reserved space for signal-conditioning circuits such as low-pass filter, voltage attenuator and current shunt
- Industrial-grade screw-clamp terminal blocks for heavy-duty and reliable connections
- DIN-rail mounting case for easy mounting
- Supports PCI-1710U/UL, PCI-1710HGU, PCI-1711U/UL, PCI-1716/L
MORE OPTIONS AVAILABLE - CONTACT AIR-OIL SYSTEMS FOR DETAILS
