ERD Electric Rod-style Actuator by Tolomatic Axidyne Electric Motion Control

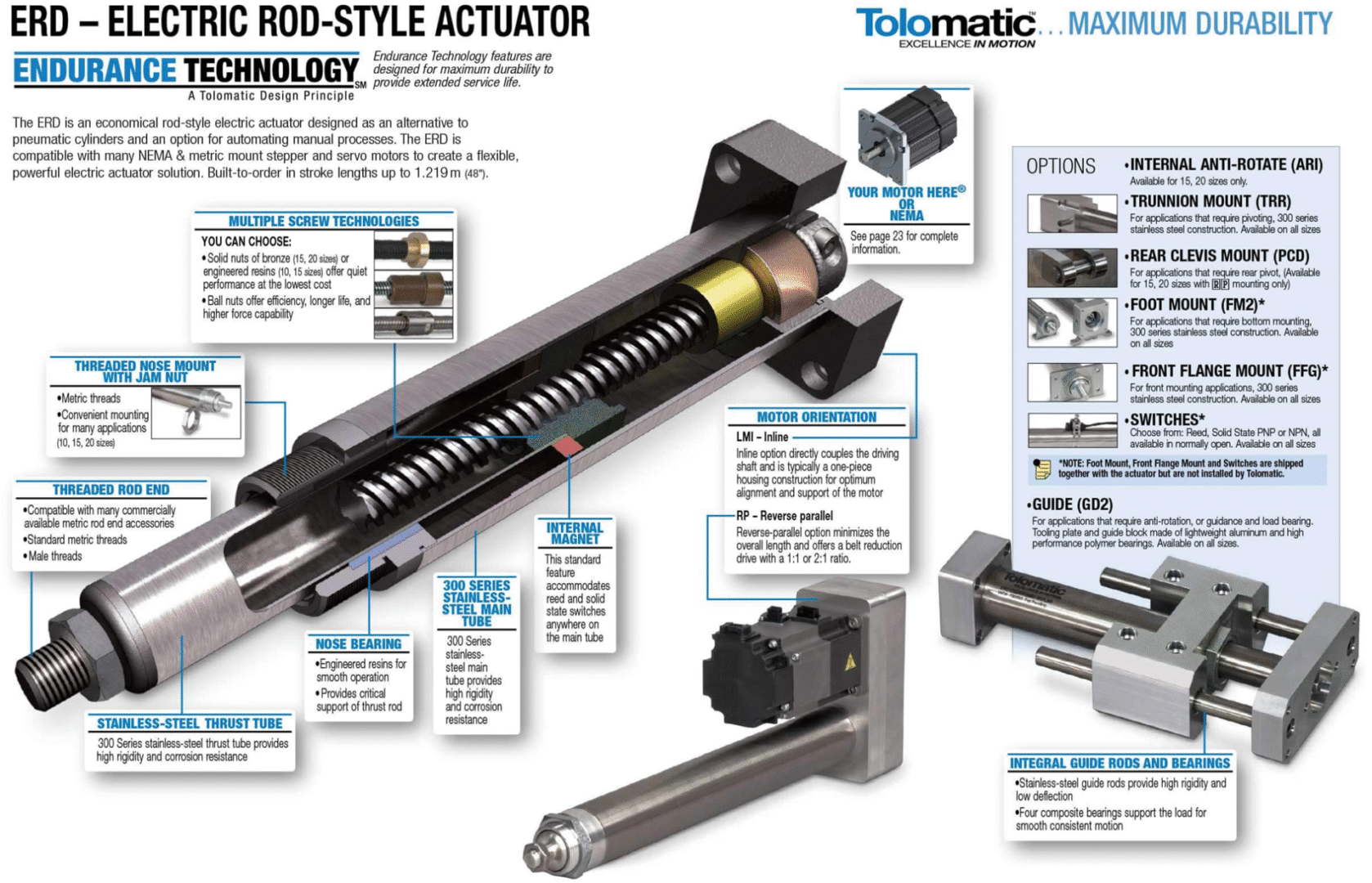

The ERD is a low cost rod-style electric actuator designed as an alternate to non-repairable pneumatic cylinders and an option for automating manual processes. The ERD electric cylinder is compatible with many NEMA and Metric standard stepper and servo motors to create a low cost, electric actuator solution. The ERD electric actuator is offered as follows:

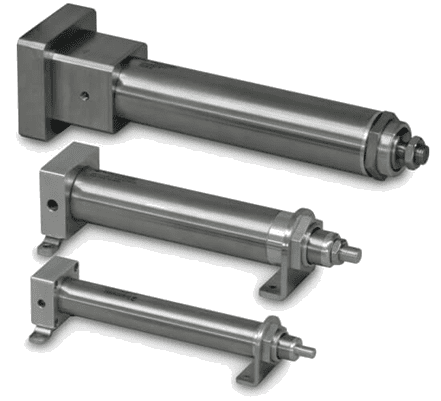

• 4 body sizes
• Ball or Acme screw choices
• Force / thrust capabilities up to 500 lbs
• Stroke lengths configurable up to 24”
• Guide / Anti-rotate option
• Stepper Drive / Controller & Motor solutions
• IP67 option

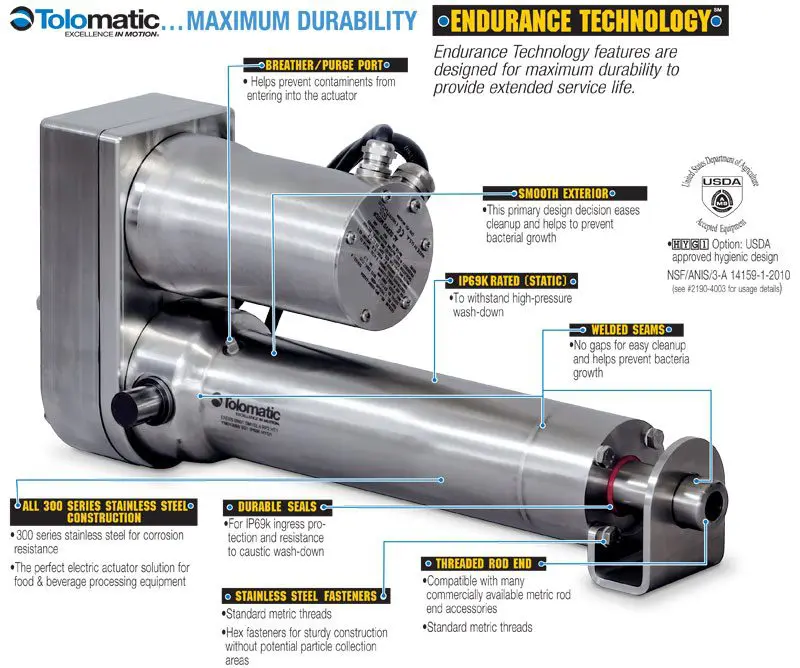

• All Stainless Steel body construction with protective motor enclosure
