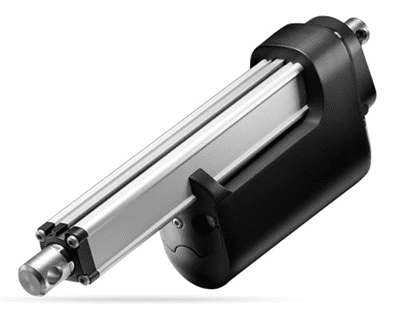

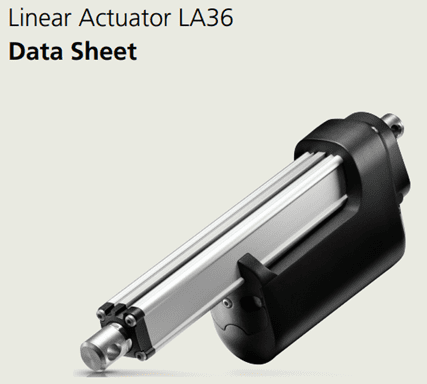

LA36 Linear Actuators by Linak
Manufacturer: Linak
Extremely powerful linear actuator made by LINAK. Up to 6,800 N thrust, or up to 168 mm/s. Designed to operate in extreme conditions. Solid choice for industrial and agricultural applications.
The actuator LA36 is one of the most solid and powerful LINAK® actuators, designed to operate under extreme conditions.
The LA36 is a maintenance-free product with a long service life and a high IP rating, available with an optional ATEX/IECEx approval for use in dust-explosive environments.
This high-quality actuator offers a very strong alternative to hydraulic solutions.
- Max. load: 6,800 N
- Max. speed: 168 mm/s
- Stroke length: 100-1200 mm
- Motor voltage: 12 V, 24 V, 36 V and 48 V
- IP ratings: IP66 dynamic and IP69K static
The LA36 is part of the IC Integrated Controller™ range, designed to integrate seamlessly with existing control systems in both industrial and off-highway applications. It offers a variety of industrial interfaces for smart and reliable movement.
You can choose the universal LINAK® I/O™ interface or select from a comprehensive range of communications protocols, including:
Fieldbus:
Industrial Ethernet:
