LoPro® Robot Transfer Units by Bishop Wisecarver
Manufacturer: Bishop Wisecarver
Both traditional and collaborative robots can benefit from Bishop-Wisecarver 7th Axis Robot Transfer Units. LoPro® RTU-L and LoPro® RTU-M are available for light and medium capacity applications. Each system is designed for durability, ease of installation, and low total cost of ownership. Our expert application engineers can help you select the complete 7th axis system solution that is right for you, or customize a solution to meet your exact requirements.
Add extremely durable 7th axes and robot transfer units (RTUs) for your favorite robot brands
Support and transfer robot arms of any size with Bishop-Wisecarver’s suite of robot transfer solutions. We provide reliable, long-lasting RTUs and 7th axis systems for all your favorite brands of cobots and industrial arms.
Our expertly designed robot transfer systems excel in even the harshest environments and most extreme applications. Each system is built on DualVee Motion Technology® for self-cleaning guidance, low maintenance, and unparalleled dependability.
Many solutions that run on DualVee guide wheels require no maintenance over the planned life of the machine. This ability to excel in critical applications makes Bishop-Wisecarver's solutions ideal for drilling, welding, painting, and more.

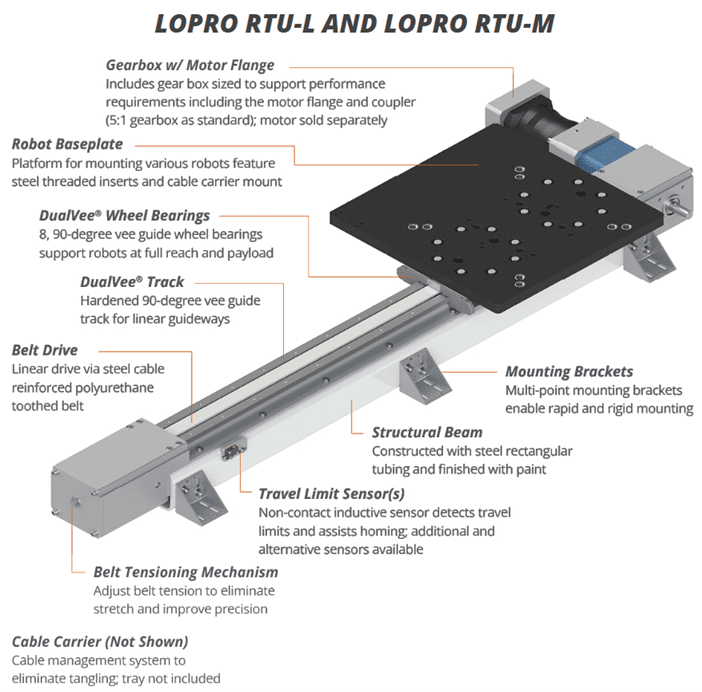

Includes:
- Belt-driven actuator with single wheel plate (RTU-L) or double wheel plate (RTU-M)
- Mounting plate with hole pattern matched to your robot
- Travel limit switch to assist homing
Accessories (sold separately):
- 5:1 planetary gearbox with motor mount matched to your drive motor of choice
- Motor package with servo, drive, and motor / encoder cabling
- Cable carrier kit for standard or inverted system mounting
- Additional homing / travel limit switches
You can get a complete RTU solution - simply provide the robot and its cabling!
Standard Features:
- Debris-resistant and extremely durable DualVee wheels
- Ready-to-mount bracketing assembled on a rigid steel base
- Belt tensioning and wheel adjustment systems designed for easy maintenance
- Painted base and anodized plates/brackets
Need customization? Talk to us!
- Custom lengths
- Removing included elements
- Alternate gearbox or motor package
- Cable carrier with pre-installed cables or alternate configurations
- Additional drive shaft (opposite the motor mounting side, for coupling etc.)
- Additional machining or alternate finishing

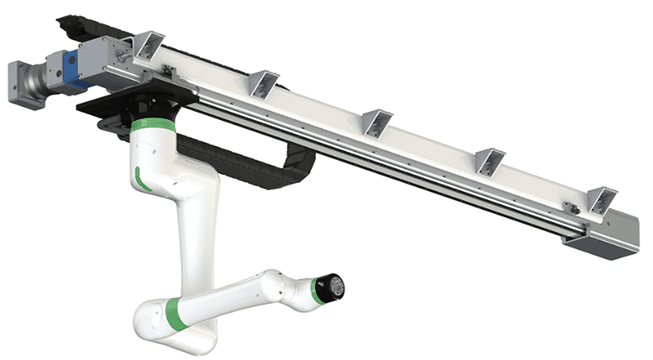

Inverted Mounting
The LoPro RTU is capable of inverted mounting with several robot configurations. Cable carrier kits suited to this orientation make inverted installation even easier. Try out a LoPro RTU inverted to save space in your application!
