MLZ Hygienic RFID Guard Locking Switch by IDEM Safety
Manufacturer: IDEM Safety
MLZ is the World’s Smallest Type 4 Hygienic Guard Lock with RFID. This Compact Hygienic Safety Interlock Switch is manufactured from mirror polished 316 Stainless Steel and Tested to IP67 and IP69K for Extreme Washdown Environments.
The MLZ Hygienic RFID Guard Locking Switch is a 30mm-wide Stainless Steel safety interlock switch that houses three entry actuation points. The device’s super-compact size means it is compatible with the narrowest of machine guard rails and requires no mounting plate, making it simple to install.
With actuation capability on three sides, this small but mighty device is also incredibly versatile making it applicable for a vast range of guarding applications.
Manufactured from mirror-polished 316 Stainless Steel to Ra4 standard, the device’s diminutive size belies its strength and durability. Tested to IP67 and IP69K and suitable for SIP and CIP cleaning, this robust interlock is ideal for outdoor use as well as for strict washdown environments, particularly food contact, beverage, and pharmaceutical manufacturing.
Rubber gasket accessory prevents liquid from entering behind the MLZ Safety Interlock Switch, reducing contamination and improving hygiene qualities.
Combine a silicon gasket to your MLZ install for additional hygiene.
The MLZ hygienic compression gasket accessory is manufactured from silicon with 316 stainless steel spacers to ensure reliable sealing and prevent unwanted contaminant build up underneath the safety locking switch.
Prevent liquid from getting behind the MLZ and remaining.
Silicone’s contamination-resistant properties stem from its inertness, temperature, and UV resistance, water repellency, ease of cleaning, biocompatibility, and minimal leaching. Its flexibility, longevity, and sealant capabilities make it versatile for industries requiring effective contamination prevention.
Make your install easier with our range of handle accessories for the MLZ Hygienic RFID Safety locking device.

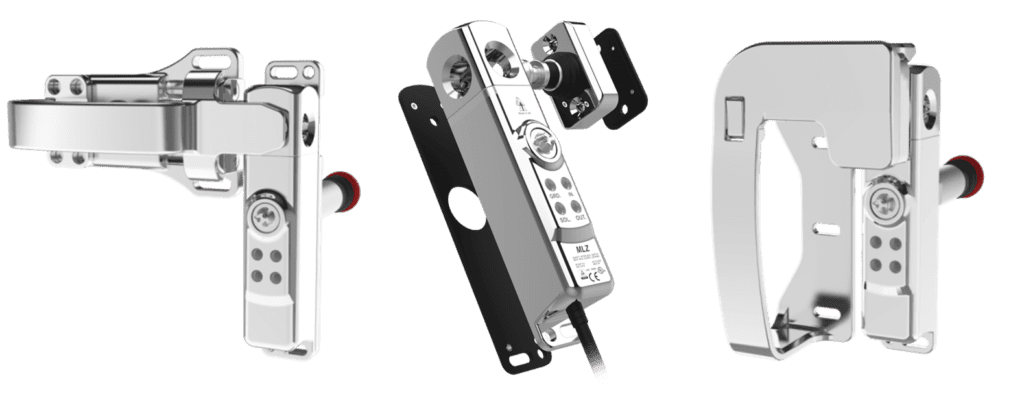

The MLZ type 4 RFID safety guard interlock is available with gate bolt handle accessories.
- Robust design with hygienic 316 stainless steel
- Easily mount to any guarding profile and machine covers
- No additional handle necessary

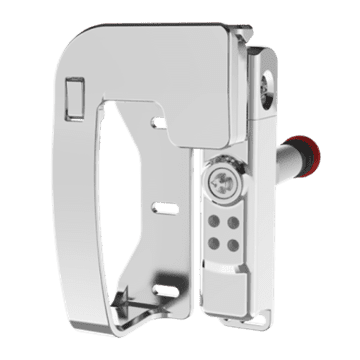

Sliding handle with lockout tagout holes.
The MLZ sliding handle accessory is manufactured from robust 316 stainless steel. It features an anti-tamper tab that blocks access to the plunger. The handle has compatibility with lockout tagout hasps.

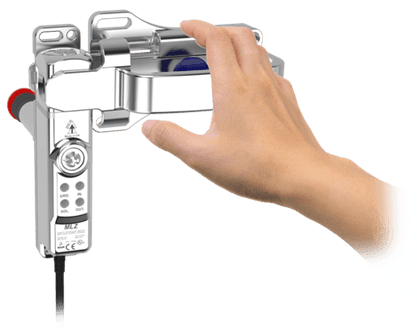

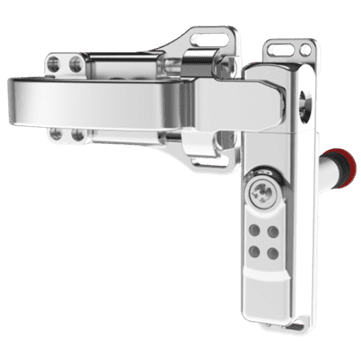

Hinge handle with anti-latching mechanism.
The MLZ hinge handle accessory is manufactured from robust 316 stainless steel. The handle features a patented anti-latching technology that requires a button to be pressed in order to close the guard.
