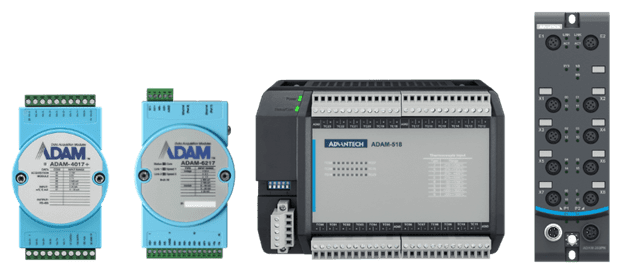

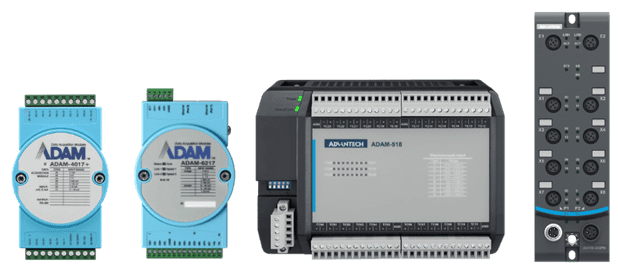

Remote I/O by Advantech
ADAM remote I/O are categorized into 5 families: IoT/OPC UA Ethernet I/O, Modular I/O system, RS-485 I/O and Serial/USB Converters/Repeaters.

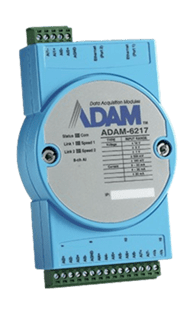

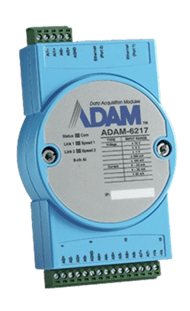

IoT Ethernet I/O Modules: ADAM-6000/6200
Advantech's Ethernet I/O Modules, ADAM-6000 series, accomplishes this integration easily through the latest internet technology, so that it can remotely monitor the device status more flexibly. ADAM-6000 modules are empowered by Peer-to-Peer (P2P) and Graphic Condition Logic (GCL), and can perform as standalone products for measurement, control and automation with Advantech's P2P and GCL technology.
The ADAM-6000/6200 Secure Cloud I/O series enables seamless Ethernet I/O control from the cloud. Users without a cloud service can quickly start by registering for an EdgeHub account. With the familiar ADAM utility, managing and configuring ADAM I/O is effortless. The ADAM I/O also integrates advanced security features, including X.509 certificates, TLS encryption, and allowlisting, ensuring robust protection and reliability.
In the era of IoT, secure Cloud I/O facilitates the management of numerous assets across diverse applications, spanning smart factories, logistics, green energy, utilities, transportation, telecommunications, and smart cities.

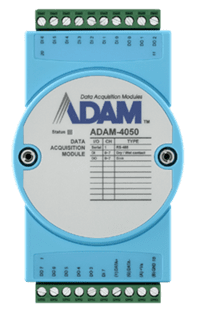

RS-485 I/O Modules: ADAM-4000/4100
Cost-effective remote RS-485 data acquisition modules offer analog, RTD, thermocouple, digital, relay and counter I/O with Modbus RTU protocol.
The ADAM-4000/ 4100 series featuring rugged industrial-grade cases are specially designed for reliable operation in harsh environments. Built-in microprocessors independently provide intelligent signal conditioning, analog I/O, digital I/O, data display, and RS-485 communication through Modbus RTU protocols.

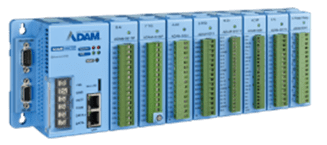

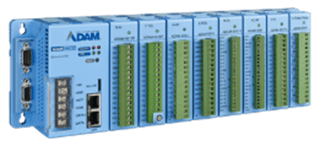

Modular I/O System: ADAM-5000 Series
ADAM-5000 PC-based controllers, including the ADAM I/O series system, and ADAM-5560CE/KW Micro PAC, feature an Intel Atom D510 CPU along with control specific features such as watchdog timer, battery backup RAM and deterministic I/O. ADAM-5560KW PC-based controllers support 5 standard IEC 61131-3 programming languages in CE 5.0. With the optional HMI Software and built-in VGA port, this remote I/O module can avoid using additional SCADA PC’s in their applications.
Controllers
The ADAM-5560CE/KW Micro PAC is useful for up to 224 I/O point applications. It features an Intel Atom D510 CPU along with control specific features such as watchdog timer, battery backup RAM and deterministic I/O. The ADAM-5560KW also supports 5 standard IEC 61131-3 programming languages in Microsoft Windows CE 5.0. With the optional HMI Software and built-in VGA port, users no longer need to use additional SCADA PC’s in their applications.
ADAM-5630
4-slot Edge Intelligent DAQ controller
- Support Modbus/RTU, Modbus/TCP Client and Server function libraries
- C and Python programming based on Linux operating system
- Support Web server for I/O configuration and monitoring
- Built-in real-time clock and watchdog timer
- 4 serial communication ports onboard
- 2 Ethernet Ports
- 4 or 8 I/O slot expansion
- 1 micro SD slot expansion for data storage
I/O Rack
ADAM-5000/485 and ADAM-5000E are Modular I/O System, as well as 4-slot / 8-slot Distributed DA&C centralized i/o systems which conform to the EIA RS-485 communication standard. RS-485 was specifically developed for industrial applications to transmit and receive data at high rates over long distances. The ADAM-5000L/TCP and ADAM-5000/TPC are both Ethernet-based I/O systems. Without a repeater, they can cover a communication distance up to 100M.
ADAM-5000/485
4-slot Distributed DA&C System for RS-485
- RS-485 communication for easy installation and networking
- 4 slots for up to 64 points data monitoring card control in one module
- Supports ADAM ASCII protocol or Modbus®/RTU protocol
- Supports Modbus/RTU protocol with user-defined Modbus address
- Extensive software support, includes windows DLL drivers, OCX drivers, OPC server and popular HMI/SCADA software drivers
- Seamlessly integrated with easy-to-use ADAMView data acquisition software
ADAM-5000E
8-slot Distributed DA&C System for RS-485
- RS-485 communication for easy installation and networking
- 8 slots for up to 128 points data monitoring card control in one module
- Supports ADAM ASCII protocol or Modbus®/RTU protocol
- Supports Modbus/RTU protocol with user-defined Modbus address
- Extensive software support, includes windows DLL drivers, OCX drivers, OPC server and popular HMI/SCADA software drivers
- Seamlessly integrated with easy-to-use ADAMView data acquisition software
ADAM-5000/TCP
8-slot Distributed DA&C System for Ethernet
- 10/100Base-T auto-negotiation high-speed communication port
- Supports Modbus/TCP for easy integration
- Supports UDP event handling function
- 1500 VDC isolation for Ethernet communication
- Provides C and .NET class library to develop applications
- Built-in watchdog timer for system auto-reset
- Windows utility- I/O modules configuration and calibration- Network auto searching- Data stream setting- Current status monitoring and alarm trigger
- 8 I/O slots for up to 128 points data monitoring and control
- Allows concurrent access for 8 host PCs
- Allows remote configuration via Ethernet
- Up to 100 m communication distance w/o repeater
- ARM 32-bit RISC CPU
ADAM-5000L/TCP
4-slot Distributed DA&C System for Ethernet
- 10/100Base-T auto-negotiation high-speed communication port
- Supports Modbus/TCP for easy integration
- Supports UDP event handling function
- 1500 VDC isolation for Ethernet communication
- Provides C and .NET class library to develop applications
- Built-in watchdog timer for system auto-reset
- Windows utility- I/O modules configuration and calibration- Network auto searching- Data stream setting- Current status monitoring and alarm trigger
- 4 I/O slots for up to 64 points data monitoring and control
- Allows concurrent access for 8 host PCs
- Allows remote configuration via Ethernet
- Up to 100 m communication distance w/o repeater
- ARM 32-bit RISC CPU

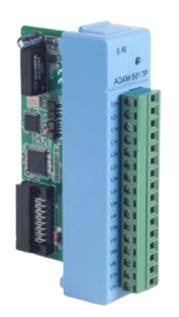

Analog I/O Modules
ADAM-5000 AI/O modules offer different voltage and current ranges, thermal coupling, and RTD to fulfill multiple applications.
ADAM-5013
3-ch RTD Input Module
- Accuracy: ±0.1% or better
- Effective resolution: 16-bit
- Input connections: 2, 3 or 4 wire
- Sampling rate: 10 samples/sec. (total)
- Isolation voltage: 3000 VDC
- Input type: PT100 or Ni RTD
- Channels: 3
ADAM-5017
8-ch Analog Input Module
- Accuracy: ±0.1% or better
- Effective resolution: 16-bit
- Input range: ±150 mV, ±500 mV, ±1 V, ±5 V, ±10 V; ±20 mA
- Sampling rate: 10 samples/sec. (total)
- Isolation voltage: 3000 VDC
- Fault and overvoltage protection: withstands overvoltage up to ±35 V
- lnput type: mV, V, mA
- Channels: 8 differential
ADAM-5017H
8-channel High-speed Analog Input Module
- Accuracy: ±0.1% or better
- Effective resolution: 12-bit plus sign bit
- 1000 Hz bandwidth
- High sampling rate:ADAM-5000/485&5000E: 100 samples/sec, ADAM-5510 & ADAM-5511: 8000 samples/sec max
- 3000VDC Isolation voltage protection
- Distinct range settings allowed on each channel
- Input type: mV, V, mA

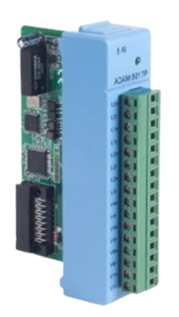

ADAM-5017P
8-ch Analog Input Module with Independent Input Range
- Accuracy: Voltage mode : ±0.1% or better, Current mode : ±0.2% or better
- High Common Mode: 200 VDC
- Over Voltage Protection: ±60 VDC
- Built-in TVS/ESD Protection
- Isolation Voltage: 3,000 VDC
- CMR @ 50/60 Hz: 92 dB min.
- Channels: 8 differential and independent configuration channels
- Input Impedance: Voltage: 800kΩ, Current: 120Ω (Build-in 120Ω. register for Current Input) for Curren
- lnput Type: mV, V (supports uni-polar and bipolar), mA
- Sampling Rate: 10 samples/sec
ADAM-5018
7-Ch Thermocouple Input Module
- Accuracy Bandwidth: ±0.1% or better, 13.1 Hz @ 50 Hz, 15.72 Hz @ 60 Hz
- Sampling Rate: 10 samples/sec. (total)
- High Common Mode: 2000 VDC
- Isolation Voltage: 3,000 VDC
- Fault and Overvoltage Protection: Withstands over voltage up to ±35 V
- CMR @ 50/60 Hz: 92 dB min
- Input Impedance: 20 MΩ. (Build-in 120 Ω Register for Current Input)
- Built-in TVS/ESD Protection
- Filter function: Yes
ADAM-5018P
7-ch Thermocouple Input Module with Independent Input Range
- Accuracy Bandwidth: ±0.1% or better, 13.1 Hz @ 50 Hz, 15.72 Hz @ 60 Hz
- Sampling Rate: 10 samples/sec. (total)
- High Common Mode: 2000 VDC
- Isolation Voltage: 3,000 VDC
- Fault and Overvoltage Protection: Withstands over voltage up to ±35 V
- CMR @ 50/60 Hz: 92 dB min
- Input Impedance: 20 MΩ. (Build-in 120 Ω Register for Current Input)
- Built-in TVS/ESD Protection
- Filter function: Yes
- Channels: 7 differential with Independent Input Range
ADAM-5024
4-ch Analog Output Module
- Accuracy: ±0.1% of FSR for current output
- Effective resolution: 12-bit
- Isolation voltage: 3000 VDC
- Output range: 0 ~ 20 mA, 4 ~ 20 mA, 0 ~10 V
- Resolution: ±0.015% of FSR
- Channels: 4
- Output type: mA, V
Digital I/O Modules
ADAM-5000 DI/O modules are equipped with high density channels, isolation, short circuit protection, failure protection and hot swap functionality.
ADAM-5051D
16-ch Digital Input Modules
- Input voltage: 30 Vmax
- Circuit type: Pull-Up current: 0.5 mA (Source Type)
- LED indicator: Yes
- Power consumption: 0.84 W(max.)
- Channels: 16
ADAM-5051S
16-ch Isolated Digital Input Modules
- 50 Vmax Input Voltage
- 2500 Vdc Optical Isolation
- 70 Vdc Over Voltage Protection
- 16-channel
ADAM-5052
8-ch Isolated Digital Input Module
- Digital input level: Logic level 0: +1 V max.
- Isolation voltage: 5000 VRMS
- Power consumption: 0.27 W (max)
- Channels: 8
ADAM-5055S
16-ch Isolated Digital I/O Module with LED
- I/O Type: 8 DO & 8 DI
- Optical Isolation: 2500 Vdc
- Power Consumption: 0.68 W (Typical)
- 16-channel
ADAM-5056D
16-ch Digital Output Modules
- Operating voltage: 30 Vmax
- Digital output: Open collector to 30 V, 100 mA max. load
- Output status hold function
- Power consumption: 0.5 W (typical); 0.84 W (max.)
- Power dissipation:300 mW for each channel
- LED indicator: On: Output logic level "1"
- Channels: 16
ADAM-5056S
16-ch Digital Output Modules
- Over Voltage Protection: 70 Vdc
- Optical Isolation: 2500 Vdc
- Power Consumption: 0.6 W (typical)
- Power Dissipation: 300 mW
- 16-channel
ADAM-5056SO
16-ch Source-type Isolated Digital Output Module with LED
- Optical Isolation: 2500 Vdc
- Over Voltage Protection: 70 Vdc
- Power Consumption: 0.6 W (max.)
- 16-channel
Counter/Frequency Modules
ADAM-5000 frequency and counter modules are bi-directional and can be remotely configured to up/down, counter, frequency, and alarm setting modes.

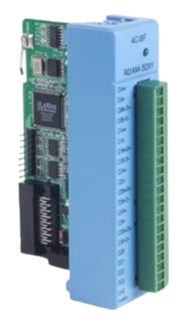

ADAM-5081
4-ch High Speed Counter/Frequency Module
- Minimum Pulse Width: 1μ sec. (Frequency/Counter Mode)
- Function Mode: Counter (Up/Down, Bi-direction, Up, A/B Phase) Frequency
- Input Frequency: Frequency Mode: 5Hz ~1MHz Counter Mode: 1MHz max.
- Isolated Voltage: 2500 Vdc
- Programmable Digital Noise Filter: 1~65000μ sec.
- 4 channels for Counter, 8 channels for Frequency
- Counter Aux. Function: Initial preset, hi-low alarm setting, alarm digital output mapping, overflag

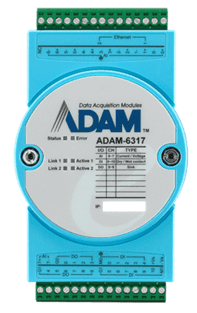

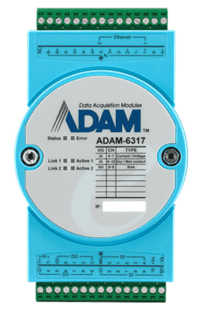

OPC UA Ethernet I/O Modules: ADAM-6300
Industrial OPC UA Ethernet I/O Modules with Modbus protocol converge OT/IT with security, linking to SCADA and the cloud for remote monitoring.
Serial/USB Converters/Repeaters: ADAM-4500 series
Serial conversion and isolation products covering RS-232 to RS-422/485 converters, USB to RS-232/422/485 converters, and fiber optic converters.
ADAM-4510
RS-422/485 Repeater
- Automatic RS-485 data flow control
- Surge protection RS-485 data line
- Transmission speed up to 115.2 Kbps
- Networking up to 1200 meters (4000 feet)
- LED indicator to monitor status
ADAM-4562
Isolated USB to RS-232 Converter
- Power from the USB port
- Hot swap function supported
- Isolation protection 3000 VDC provided
- Automatic RS-485 data flow control
- Transmission speed up to 115.2 kbps
ADAM-4510I
Isolated Wide Operation Temperature RS-422/485 Repeater
- Wide Operating Temperature: -40 ~ 85° C
- Automatic RS-485 data flow control
- 3000 VDC isolation protection
- Surge protection RS-485 data line
- LED indicator to monitor status
ADAM-4541
Multi-mode Fiber Optic to RS-232/422/485 Converter
- 2 x ST fiber connector
- Operation mode: Point-to-Point, and Ring (half-duplex)
- Half/Full-duplex, bidirectional transmission mode
- Automatic RS-485 data flow control
- LED indicator to monitor status
ADAM-4510S
Isolated RS-422/485 Repeater
- Automatic RS-485 data fl ow control
- 3000 VDC isolation protection
- Surge protection RS-485 data line
- Transmission speed up to 115.2 Kbps
- LED indicator to monitor status
ADAM-4542+
Single-mode Fiber Optic to RS-232/422/485 Converter
- 1 x SC fiber connector
- Operation mode: Point-to-Point,Redundant and Ring(half-duplex)
- Half/Full-duplex, bidirectional transmission mode
- Automatic RS-485 data flow control
- LED indicator to monitor status
ADAM-4561
Isolated USB to RS-232/422/485 Converter
- Power from the USB port
- Hot swap function supported
- Isolation protection 3000 VDC provided
- Automatic RS-485 data flow control
- Transmission speed up to 115.2 kbps

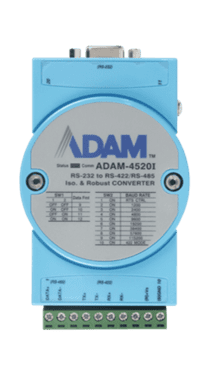

ADAM-4520
Isolated RS-232 to RS-422/485 Converter
- Automatic RS-485 data flow control
- 3000 VDC isolation protection
- Surge protection RS-485 data line
- Transmission speed up to 115.2 Kbps
- LED indicator to monitor status
High Density I/O Module: ADAM-500 Series
Remote I/O modules for multi-channel thermocouple data acquisition with Modbus RTU/TCP support, ideal for precise temperature monitoring.

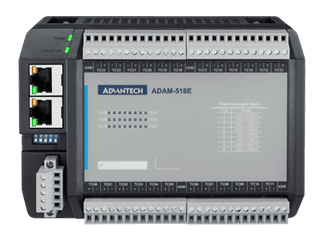

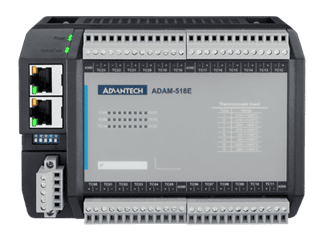

ADAM-518E/518
24-ch RS-485 T/C Input Module 24-Ch Ethernet T/C Input Module
- 24-channel thermocouple input reduces module count, saving wiring and cabinet space
- Supports widely used thermocouple types for general industrial and environmental applications
- Thermocouple type and input range can be easily configured using ADAM Utility with no programming required
- Delivers 16-bit resolution and ±0.5 °C CJC accuracy for stable and precise measurements
- Wide temperature measurement range supports a variety of application needs
- Dual LAN ports support Ethernet daisy-chain connection to simplify wiring and reduce switch costs (ADAM-518E)
- Auto-bypass keeps network connection during power loss, reducing downtime and maintenance costs (ADAM-518E)
- Built-in Graphic Condition Logic (GCL) allows simple control logic to run directly on the module without a PLC or PC (ADAM-518E)
Rugged IP67 Machine Mount IoT Remote I/O
Rugged machine-mount IP67 I/O device with PROFINET and Modbus/TCP and IoT Protocol, diagnostics and M12 connectors, ideal for harsh environments.
Outdoor and harsh environments such as mining, oil and gas, ports, railways, energy sites, and factory floors face constant dust, moisture, vibration and 24/7 operational pressure. To keep SCADA and MES data stable and secure, industrial users need IP67, cabinet-free, vibration-resistant I/O that installs easily and delivers reliable field performance.
Advantech’s ADAM-200PN Series is designed for these demands with IP67 protection, wide-temperature endurance, robust M12 machine-mount connectivity and multi-protocol support including PROFINET and IoT options. Its durable and user-friendly design ensures dependable operation in mission-critical environments.
ADAM-250PN
16 DI/O IP67 Machine Mount M12 PROFINET/Modbus IoT Ethernet Remote I/O
- 16-ch configurable DIO and 2-port power/ethernet daisy chain
- IEC 61131-2 type 3 sink DI and fast response source DO
- Support I/O and power diagnostic and DO safety value protection functions
- Printable marking label & LED indicator monitoring system/network/diagnostic/power status
- Enables cabinet-free front and side wall & machine mounting
- Compatible with M12 Screw lock and Push-pull fast-locking
- Rugged IP67 design resists EMC, vibration, dust, oil, and humidity from harsh/outdoor
- Built in Sensor/Actuator/Encoder Power Supply from each I/O port
- Supports PROFINET and Modbus/TCP, with extensible design for MQTT integration
Rugged for Harsh Environment
- IP67, -40-60℃ for variable outdoor environments
- High vibration endurance : 30G shock & 20G vibration
- High level industrial EMC class A, level 3-4 Protection
- EN50155 Compliance : Shock/vibration IEC 61373 body mount class B and EMC EN 50121-3-2 & EN 50121-4
