Robo Cylinder ERC Series by IAI Intelligent Actuator
![iai_intelligent_actuator-robo_cylinder_erc_series Air-Oil Systems](http://airoil.com/wp-content/uploads/2021/11/iai_intelligent_actuator-robo_cylinder_erc_series.gif)
Manufacturer: IAI Intelligent Actuator
- Easy to Use, Low Cost Alternative to Air Cylinders
- Electric actuator utilizing a ballscrew, linear guide, and stepper motor.
- Can help raise your production efficiency level and save you 67% in running costs compared with pneumatic cylinders.
- Specifically designed to be easy to use for anyone. You can be up and running in minutes.
- Gives you the ROI you desire with prices starting from $560.
- Allows for multi-point positioning of up to 8 points.

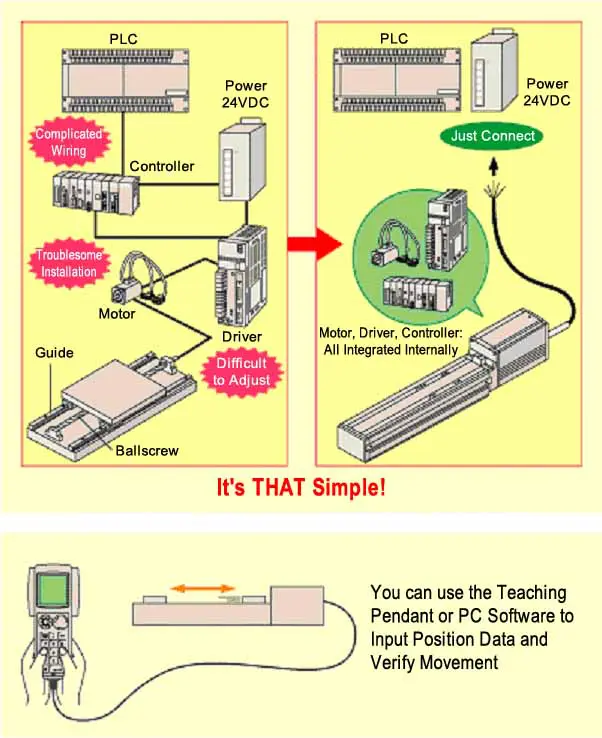

Ease of Installation / Operation
The ERC is easy to set up and operate because the controller is integrated into the motor compartment. Just connect the actuator to your PLC with an I/O Cable, supply it with 24V DC power, and you're ready to go! Even without connection to a PLC, you can verify movement and Position Complete inputs with the teaching pendant or PC software.
![install Air-Oil Systems](http://airoil.com/wp-content/uploads/2021/11/install.jpeg)
Multi-point Positioning of up to 8 Points
Complex movements can be performed swiftly with either the Slider type or Rod type, thanks to a maximum of 8 positioning points. Also, the ERC is equipped with standard functions such as Pause and Zone Output, making difficult operations for air cylinders look extremely easy.
![8pnts Air-Oil Systems](http://airoil.com/wp-content/uploads/2021/11/8pnts.jpeg)

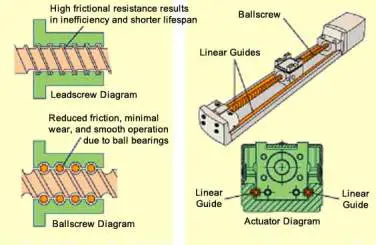

High Accuracy
The ERC utilizes a highly accurate ballscrew usually available only in more expensive actuators. Compared to a leadscrew, a ballscrew features less frictional resistance resulting in minimal wear. Smooth operation and highly accurate positioning can be maintained over the long term.
![ballscrew Air-Oil Systems](http://airoil.com/wp-content/uploads/2021/11/ballscrew.jpeg)
Compact Space
The controller is located in the motor compartment, thus eliminating the space requirement for the controller in the electrical panel.
![compact Air-Oil Systems](http://airoil.com/wp-content/uploads/2021/11/compact.jpeg)
