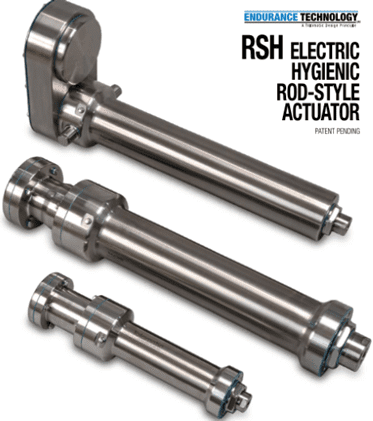

RSH Hygienic Electric Actuator by Tolomatic

RSH pic

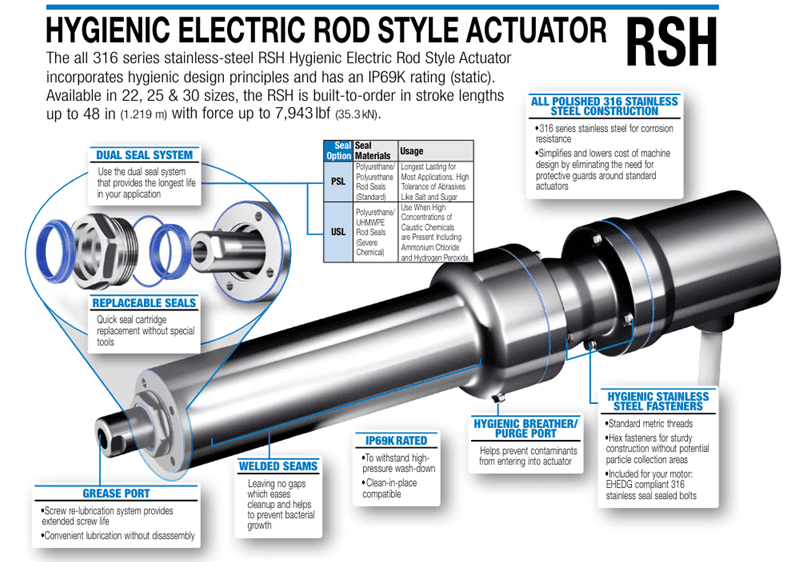

RSH hygienic electric actuators feature 316 stainless steel construction and IP69K

Tolomatic’s line of hygienically designed all stainless steel electric actuators offer up to 7,943 lbf (35.3 kN) and they are the perfect solution for food and beverage applications where higher forces are required for pressing, pumping, cutting or slicing. Use the Tolomatic Your Motor Here® database to select from a wide variety of stainless steel motor manufacturers for a complete all stainless package.

  • 3 body sizes with 316 series stainless steel construction
  • Ball and roller screw options

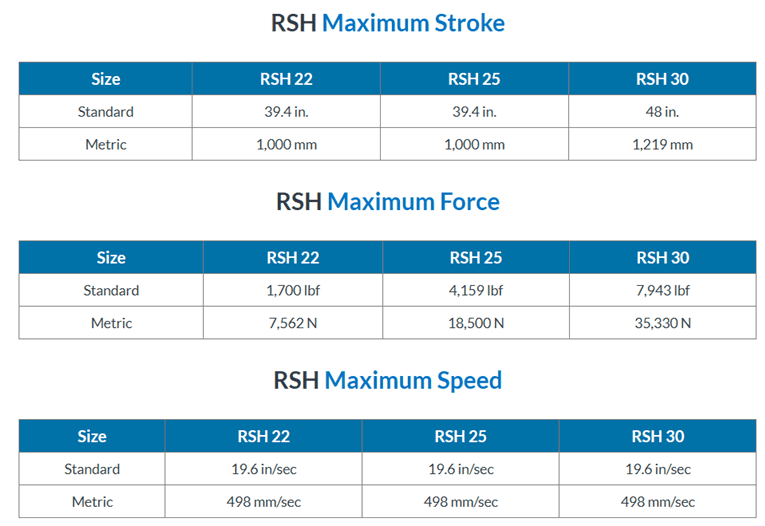

  • Force/thrust capabilities up to 7,943 lbf (35.3 kN)
  • Stroke lengths up to 48 inches (1.2 m)
  • IP69K, clean in place compatible

Watch Video
