S101A 4m Range Sensor by Inxpect

Manufacturer:  Inxpect Safety Radar Equipment

The first safety radar sensor in the world with SIL2 certification for use in industrial safety applications.

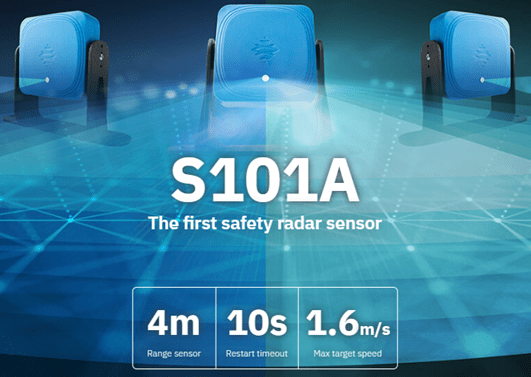

S101A safety radar sensor with advanced detection capabilities.

The S101A sensor is a smart FMCW (Frequency Modulated Continuous Wave) radar device based on proprietary Inxpect detection algorithms. The sensor sends 24 GHz radio waves and recovers motion information, analyzing the signals reflected by both static and moving objects in the operative range.
The sensors perform the following primary functions:
• Motion and scenario analysis.
• Communication to the control unit of processed

High-sensitivity detection

When a sensor detects an operator entering a dangerous area, it starts to function in high-sensitivity mode, which also detects operator micro-movements from breathing and prevents accidental machine restart.

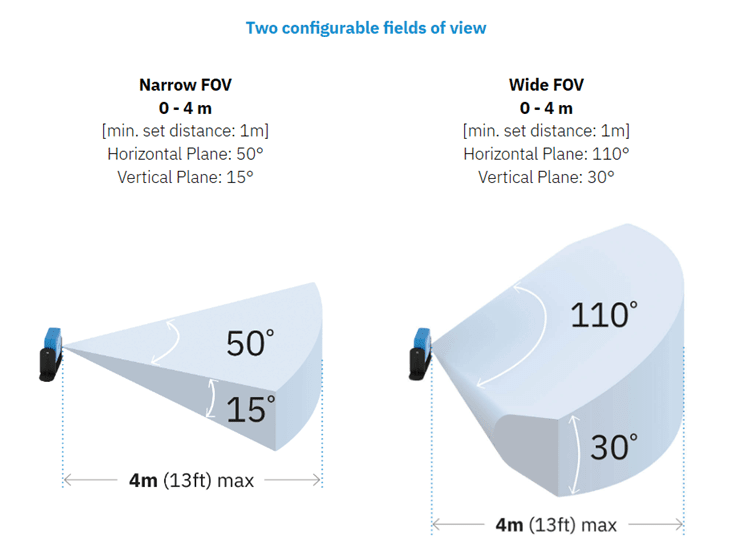

Comparison of narrow and wide camera fields of view with distance and angle details.
Illustration of two detection fields with fixed angles, one wide and one narrow.
Radar technology explained with a focus on 3D scanning and safety certifications.

Dimensions

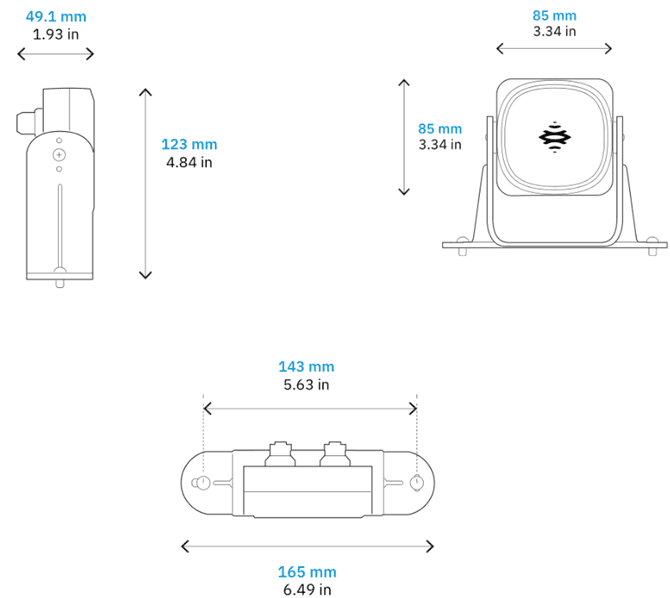

Technical drawing of a square device with mounting bracket and dimensions.

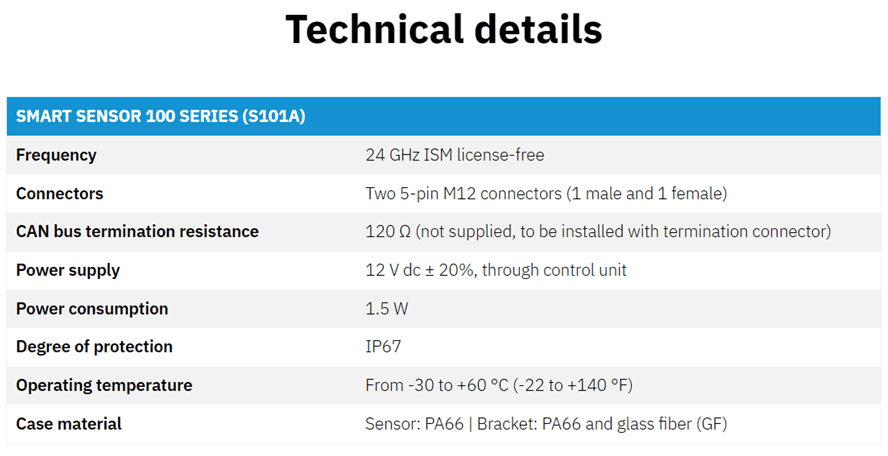

Technical specifications of the S5101A device including frequency, connectors, and power requirements.
