Safety Controllers and Interfaces by ReeR Safety
Manufacturer: ReeR Safety

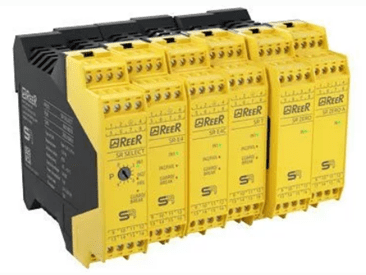

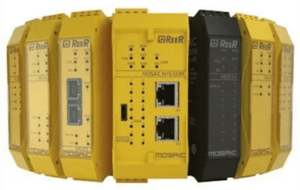

Configurable Safety Controllers and Interfaces for safety devices
Safety controllers are capable of monitoring several safety sensors and commands, such as safety light curtains, laser scanners, photocells, mechanical switches, mats, emergency stops, two-hand controls, concentrating management of these in a single, flexible device. Safety interfaces are a dedicated interfaces between safety devices equipped with self-controlled safety static outputs and control circuits of the machine or plant.
Main characteristics
SAFETY INPUTSWe can categorize different types of input:
- Digital inputs
- Inputs for Restart / EDM feedback
- Inputs for proximity switches and incremental encoder
- Analogical input
SAFETY OUTPUTS- OSSD (static semiconductor safety outputs) dual channel
- OSSD (static semiconductor safety outputs)single channel
- High Current Safety Outputs single channel (2A max per channel)
TEST OUTPUTSTest output signals are used to monitor overloads and short circuits on input lines
STATUS OUTPUTSThe status output signal is a programmable SIL1 / PL c output that can indicate the status of: an input. an output or a node of the logic diagram
SAFETY RELAYSafety relays with guided contacts. Safety relay provides two N.O. contacts and one N.C. contact in addition to the N.C. feedback contact
