Series 625 Proportional Pressure Valve by Numatics/Aventics
Manufacturer: Numatics Air Valves

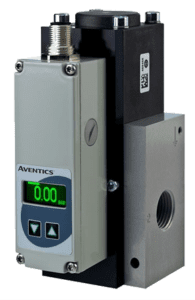

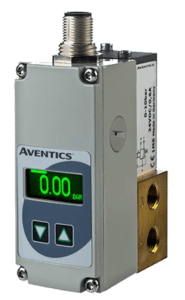

The AVENTICS Sentronic Series 625 is a 3-way proportional highly dynamic “direct acting" proportional pressure control valve platform that accurately adjusts pressure to control air or inert gases. The Series 625 is a full range proportional platform, offering pressure ranges from vacuum up to 50bar / 725 psi. Various sizes of mechanic supporting flow capability from 55l/min up to 5600l/min (1.94 up to 197.76 SCFM).
The new AVENTICS Series 625 proportional
pressure valve is designed with multiple features
for high-precision manufacturing:
✅Highly dynamic proportional pressure control
✅Pressure ranges from vacuum up to 50 bar / 725 psi
✅Flow capacity from 55 l/min up to 5600 l/min
✅5 sizes of mechanic in various materials Brass
✅Cascade control function
✅Exhausting in case of losing power supply
✅Data Acquisition software (DaS)
Specifications
- Function
- 3 way - 3/2 Normally Closed
- Valve Actuation
- Proportional coil
- Port Type
- G – NPT Threat or Pad mount
- Port Size
- 1/8" / 1/4" / 1/2" or 1"
- Pressure Range
- Vacuum up to 50 bar / 725 psi
- Body Material
- Brass, Aluminum or Stainless Steel
- Inert Parts
- Stainless Steel, Brass
- Sealing
- FKM and NBR
- Voltage
- 24 VDC
- Media
- Air, Inert Gases according to ISO 8573-1:2010 [7:4:4]
- Standard & Regulations
- CE, UKCA, RoHs
