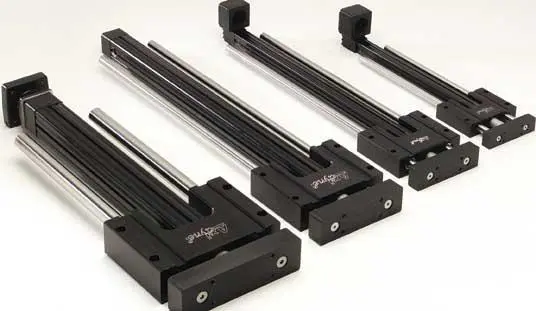

Tolomatic GSA/GSM Series Guided Screw Drive Actuators by Tolomatic Axidyne Electric Motion Control
![tolomatic_axidyne_electric_motion_control-gsagsm_series_guided_screw_drive_actuators Air-Oil Systems](http://airoil.com/wp-content/uploads/2021/11/tolomatic_axidyne_electric_motion_control-gsagsm_series_guided_screw_drive_actuators.jpg)
Manufacturer: Tolomatic Axidyne Electric Motion Control
The Tolomatic GSA/GSM series of guided screw actuators combines a rod screw actuator with mounting blocks, guide rods and bearings. A complete selection of sizes, options and system components are available. The GSA/GSM series offers high performance, dependability and mounting flexibility for pivotal applications.
- 4 english and metric body sizes
- Thrust capacities range from 70 to 2700 lbs
- Good resistance to side loading
- Wide tooling plate for end effector mounting
- Choice of linear ball or composite bearings with internal lubrication of guide rods for increased bearing life
- Standard or oversized guide rod diameter for increased rigidity and lower deflection
- Strokes in any incremental length up to 36 inches depending on body size.
Literature
![eden_noncontact_sensor Air-Oil Systems](https://airoil.com/wp-content/uploads/2021/09/eden_noncontact_sensor.jpg)

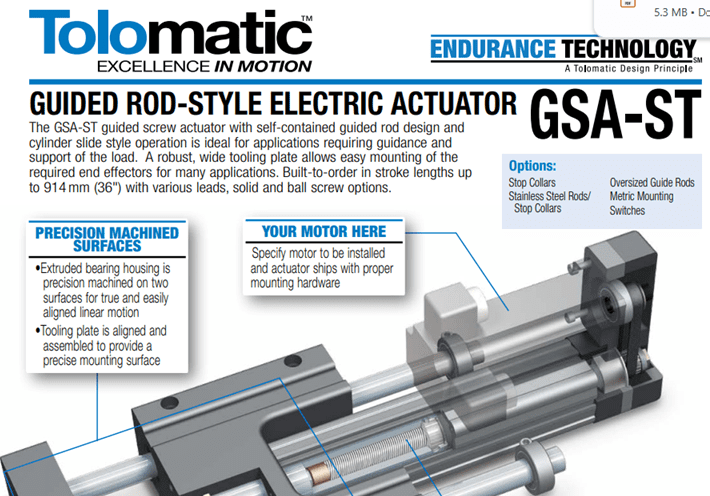

Tolomatic GSA Actuator Specs
Manufacturer: Tolomatic Axidyne Electric Motion Control
Literature

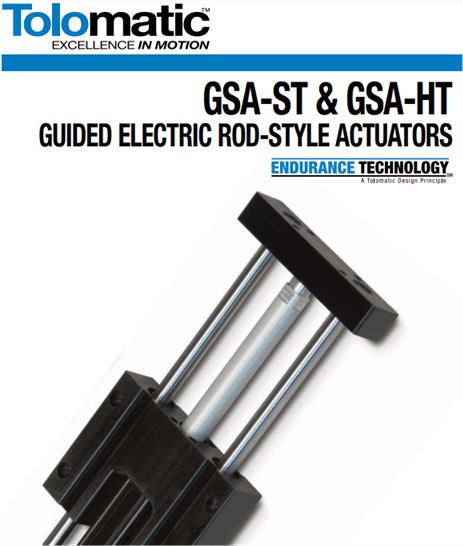

Guided Screw Actuators
[ Download ] (2968kb)
