TRS Twin Profile Rail Precision XY Stages by Tolomatic

Three different types of linear motion devices.

Manufacturer: Tolomatic Axidyne Electric Motion Control

The TRS twin profile rail XY linear stage actuator has an enclosed design built for precision, accuracy and high rigidity. This linear stage is designed to minimize overall machine footprint and is stroke configurable to maximize motion table design flexibility. Available in 100, 165, & 225 sizes and capable of handling loads up to 4,320lb (1,960 kg).

  • Strokes up to 86.6in (2,200mm)
  • Travel speeds up to 50in/s (1,270 mm/s)
  • Load carrying capacities up to 4,320lb (1,960 kg).
  • Mount your motor of choice with Tolomatic’s Your Motor Here® program
  • Roller Nut Lead Accuracy: ± 0.0004in/ft (± 0.0102mm/300mm)
  • Ball Nut Lead Accuracy: ± 0.004in/ft (± 0.100 mm/300mm)

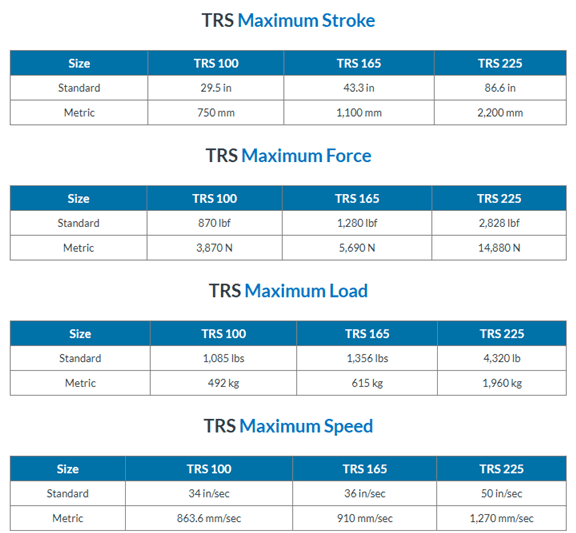

A table showing the different types of engines.

Watch Video

Literature

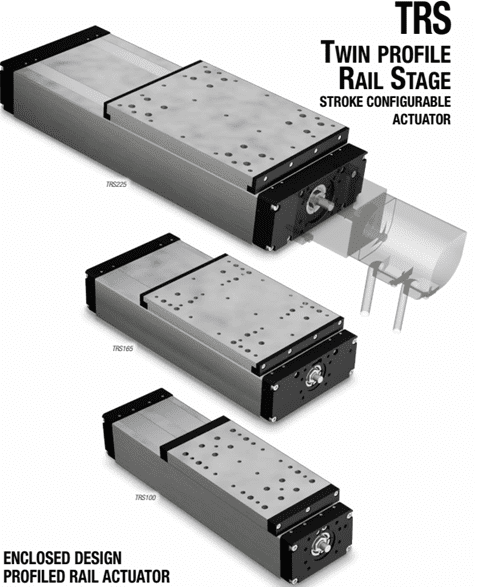

A series of three identical rectangular modules with the same size and type of actuator.

Download Brochure

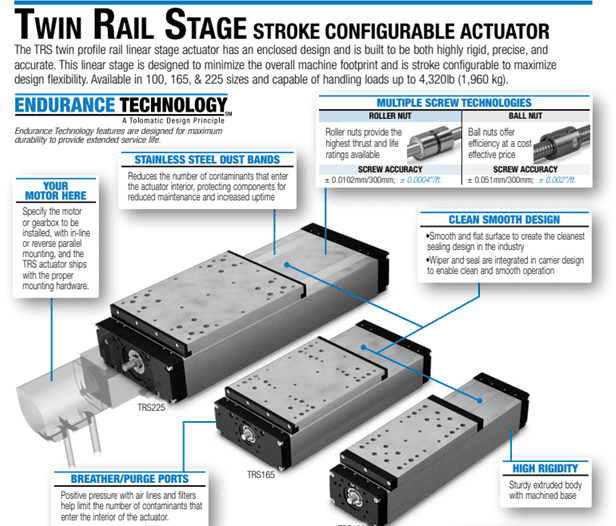

A diagram of the different stages of an actuator.
