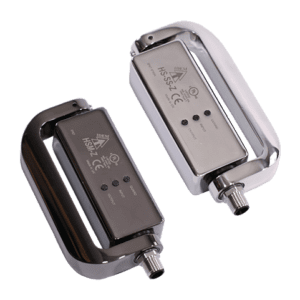

Z-Range Hinge Safety Switches with OSSD Outputs by IDEM Safety

• Maintains PLe safety level even when connected in series.
• LED diagnostic functions and auxiliary outputs for extra diagnostic signals to PLCs.
• A maximum of 30 switches can be connected in series.
• HS-SS-Z’s hygienic design is perfect for high pressure washdowns with detergents.
• Uses rotating action of an enclosed cam profile and sensing components to operate.
• Can be adjusted upon installation to provide guard-open output signal anywhere between 0 to 10 degrees.
• 800N Axial holding force

The HS-Z have been designed to be mounted for interlock position sensing of hinged moving guards. They are fitted to the hinged axis of machine guard doors to provide a robust hinge function in addition to interlock position sensing.

All HS-Z switches are factory set to provide the guard open output signal at 3 degrees. Once set during installation the HS-Z is permanently pinned in order to provide a fully tamper-resistant switching point.

Daisy Chain Connectivity – ISO/TR 24119 – Performance Level E – Safety Integrity Level 3 – SIL3 – ISO13849 – EN14119 – Machine Risk Assessment – IEC61508 – ISO61511 – ANSI 84.00.01 – IEC 60947-5-3
