Epson VT6L All in one Robot by EPSON Robots

Air-Oil Systems

Manufacturer: Epson 6-axis Robots

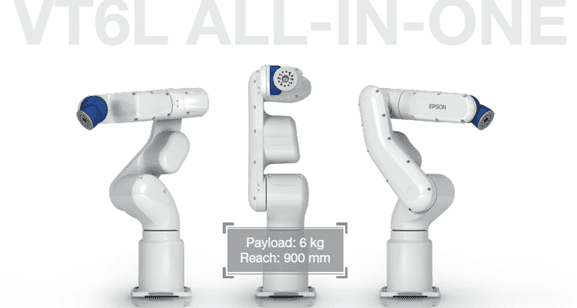

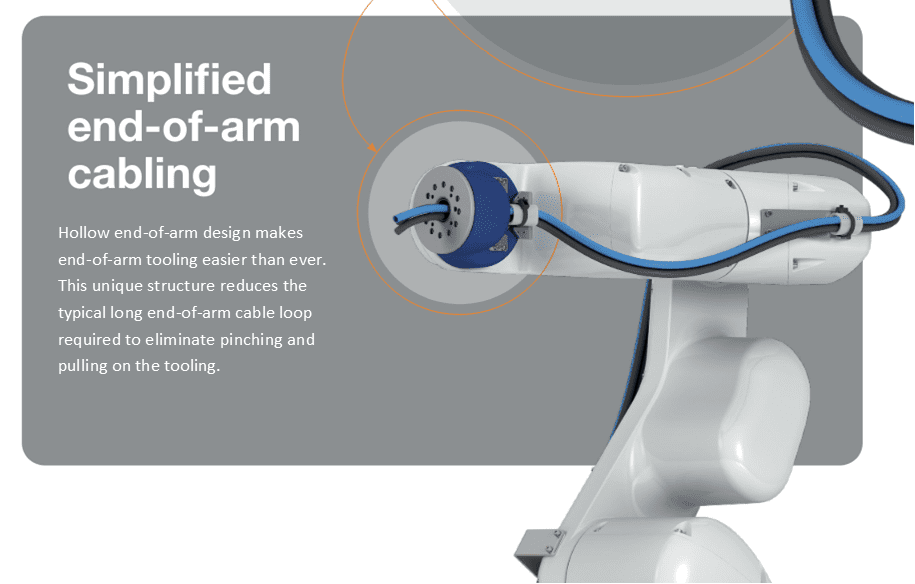

Next-level technology at an incredible price, the VT6L All-in-One 6-Axis robot is ideal for a wide variety of simple applications. Delivering many of the features found in Epson’s high-end robots, including powerful Epson RC+® and Epson RC+ Express development software, and integrated options such as Vision Guidance, the VT6L offers a reach of 900 mm and a payload of 6 kg. A feature-packed performer, it includes a built-in controller plus simplified cabling with a hollow end-of-arm design in a compact SlimLine structure—all at a remarkably low cost. The VT6L installs in minutes and is available with 110 V and 220 V power, or as a 48 V DC-powered version for mobile applications. Plus, there’s no battery required for the encoder, reducing the overall cost of ownership.



vt6l new pic 2024
vt6 new pic 2024 - 2
vt6l new pic 2024 - 3
vt6l new pic 2024 -4

Full featured; ultra low cost·

  • Up to 900 mm reach, payload up to 6 kg
  • Easy-to-use Epson RC+ programming software

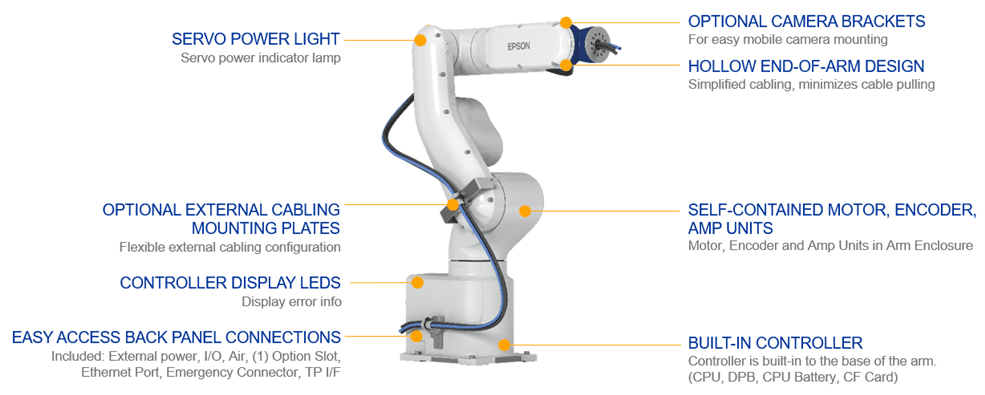

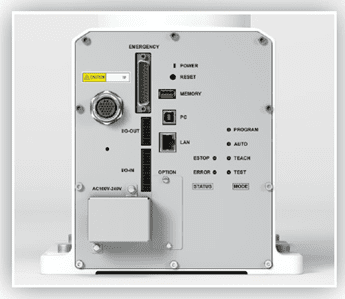

  • Compact, all-in-one design; built-in controller
  • Comes standard with 110 V and 220 V power

CAD Files

Air-Oil Systems

VT6 CAD File .step

Manufacturer: Epson 6-axis Robots

CAD File

Epson VT6 CAD file .step

[ Download ] (2536kb)

Air-Oil Systems

Epson VT6 CAD file iges

Manufacturer: Epson 6-axis Robots

CAD File

Epson VT6 .iges file

[ Download ] (5043kb)

Files

Air-Oil Systems

VT6 Introduction Video

Manufacturer: Epson 6-axis Robots

Software File

Learn more about the VT6 in this introduction video

[ Download ] (34093kb)

Literature

Air-Oil Systems

VT6L Manual

Manufacturer: Epson 6-axis Robots

Literature

Complete manual for Epson VT6L Robot

[ Download ] (12978kb)

Air-Oil Systems

VT^L Setup Guide

Manufacturer: Epson 6-axis Robots

Literature

Easy to use VT6L robot setup Guide

[ Download ] (12978kb)

Air-Oil Systems

VT6 All in One Robot Specifications

Manufacturer: Epson 6-axis Robots

Literature

New all-in-one six axis robot from Epson Specifications

[ Download ] (12978kb)
