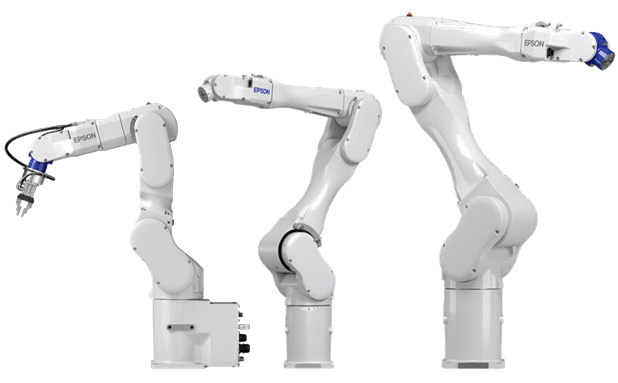

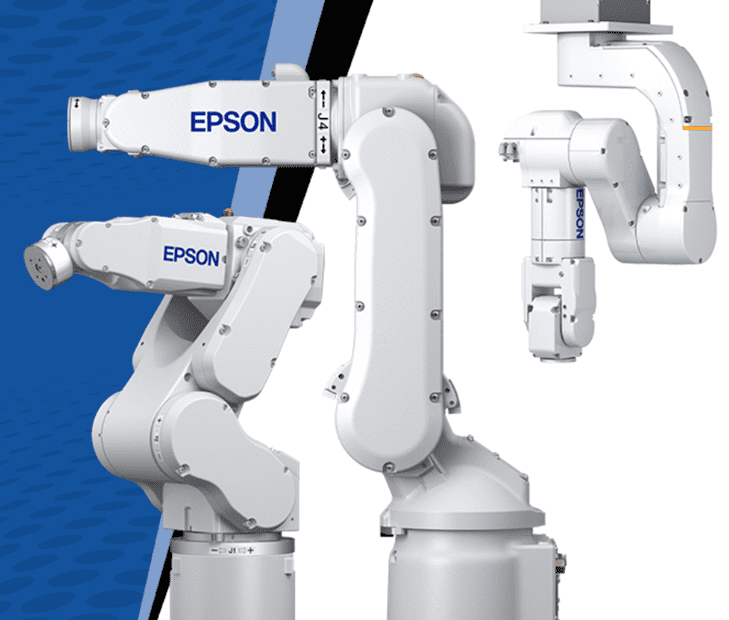

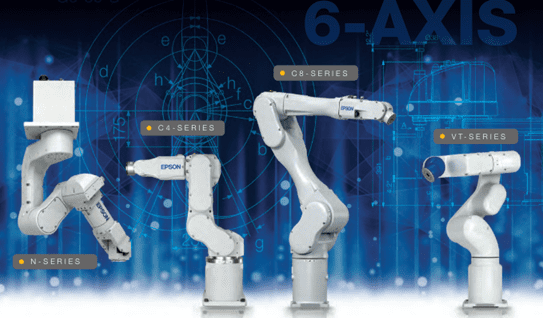

Air-Oil Systems supports Epson VT6L All-in-One, C-Series and N-Series 6-axis robot families. The VT6L is a value-focused all-in-one robot with a built-in controller. The C-Series provides a wider range of payload, reach, performance and environmental options. The N-Series uses a folding-arm design for efficient motion in compact or restricted workspaces.

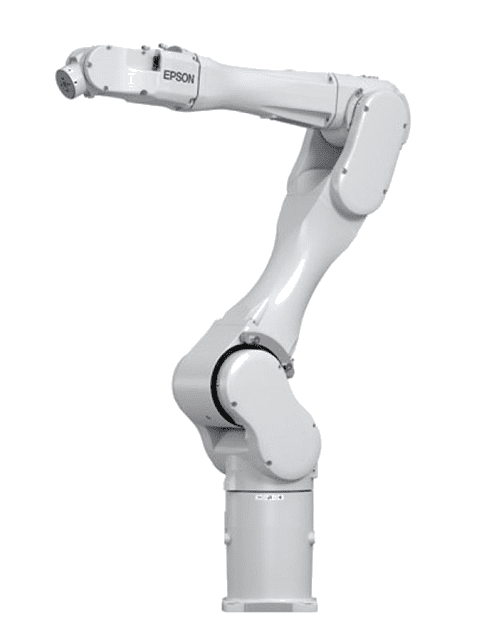

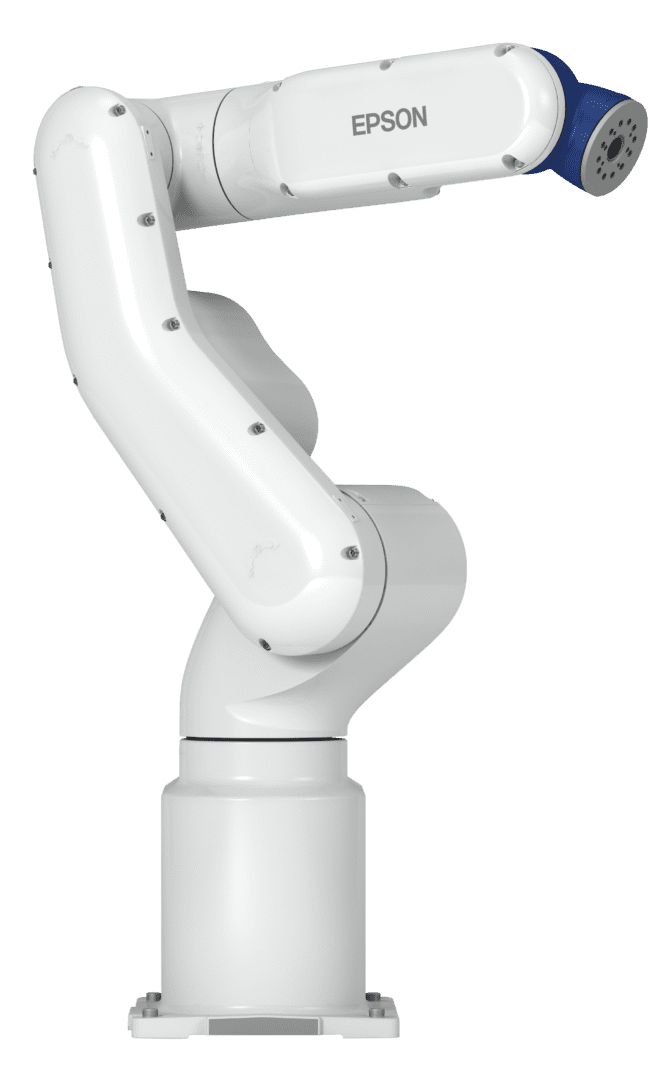

The VT6L is a strong starting point for straightforward, value-focused 6-axis applications where simple installation is important. The C-Series is better suited to applications requiring higher performance, additional payload or reach, or specialized environmental configurations. The N-Series is designed for space-efficient motion and can be especially useful in compact workcells and vertical load-and-unload applications.

Potential applications include machine loading and unloading, assembly, packaging, laboratory automation, medical-device manufacturing, material handling, inspection, dispensing, testing and applications that require a part or tool to approach from multiple angles. The correct model depends on the complete motion path, payload, reach, cycle time, tooling and workcell layout.

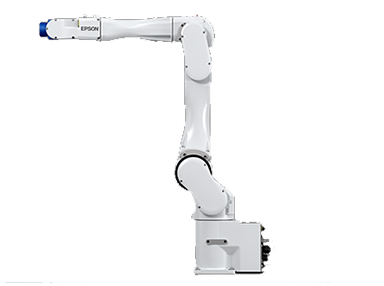

Epson offers compact 6-axis robots for lighter payloads as well as C-Series models with payload capability up to 12 kg. Robot payload must include the part, gripper, tooling plate, adapters, sensors, cables and anything else carried by the robot. Air-Oil Systems can help calculate the complete working payload before a final model is selected.

Epson 6-axis robots cover compact applications through longer-reach workcells. Depending on the family and model, Epson's C-Series reaches up to 1,400 mm, the VT6L reaches up to 900 mm, and the N6 is available in 850 mm and 1,000 mm reach configurations. Reach alone does not confirm application fit; orientation, joint travel, tooling, interference and mounting must also be reviewed.

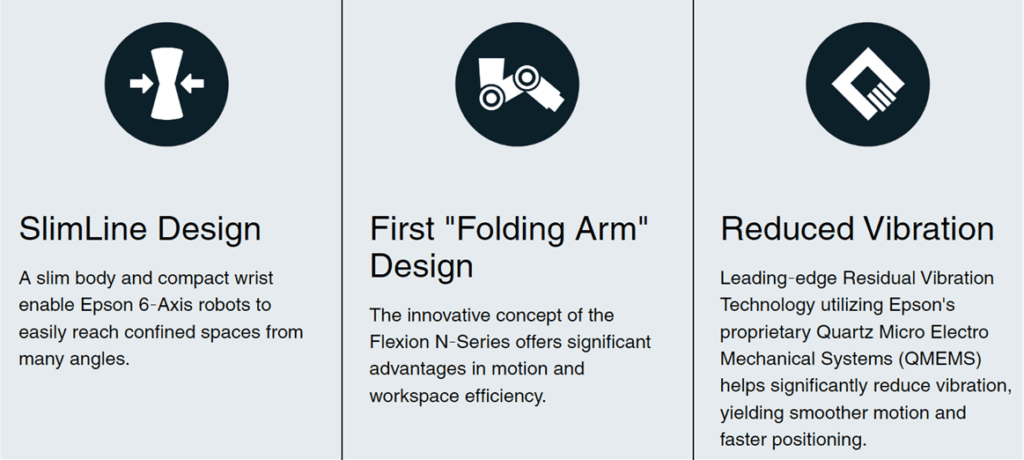

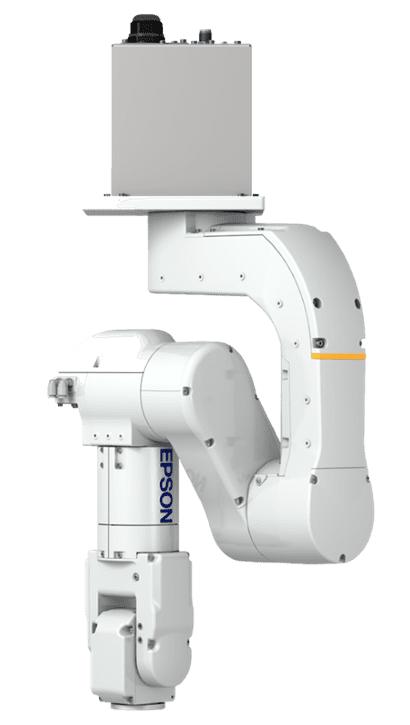

Consider the N-Series when floor space is limited, a traditional articulated arm creates interference, or the robot must efficiently load and unload vertically. Its folding-arm design allows the arm to fold underneath itself, helping it move through compact workspaces while reducing unnecessary intermediate motion.

A SCARA robot is often selected for fast horizontal-plane pick-and-place, assembly, packaging and insertion applications. A 6-axis robot provides additional articulation and orientation control, allowing it to approach parts from multiple directions and follow more complex motion paths. The best choice depends on the required motion, speed, payload, reach, tooling and workcell layout.

Certain Epson C-Series models are available in standard, Clean/ESD and protected configurations. Environmental requirements should be identified early because available configurations vary by robot model. Air-Oil Systems can review cleanroom classification, ESD, dust, moisture, temperature and other operating conditions during the application review.

Yes. The Air-Oil Systems Epson 6-Axis Robot Configurator provides preliminary family-level screening for the VT6L, C-Series and N-Series. It also helps estimate labor savings, simple payback, throughput opportunity and a preliminary CAPEX justification. Final robot selection should be confirmed through an application review.

Yes. Air-Oil Systems can review the application, payload, reach, tooling, mounting, safety, controls, environment, cycle-time requirements and preliminary automation economics. Use the configurator to organize the initial information, then submit the results for review by an Air-Oil automation specialist.
