Intelliflex by Epson SCARA Robots

Air-Oil Systems

Manufacturer: Epson SCARA Robots

High-performance parts-feeding solution with easy integration.

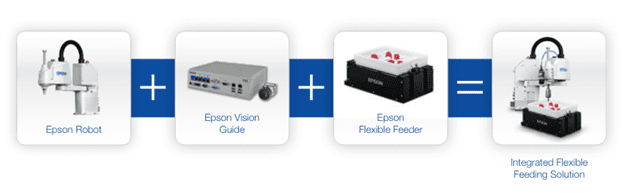

Powered by Epson® robots, IntelliFlex Software, and Vision Guide, the IntelliFlex Feeding System delivers a simplistic feeding solution to accommodate a wide variety of parts. Integrated with Epson RC+® Development Software, the IntelliFlex Feeding System offers easy setup and configuration. Its point-and-click interface helps reduce the typical development time required for advanced applications. Available in four feeder sizes, it accommodates parts ranging from 3 mm to 150 mm. Intelligent auto-tuning offers fast setup for flexible parts changeover and, multi-axis vibration technology provides optimized parts control and singulation.

  • High-performance parts-feeding solution — powered by Epson robots, IntelliFlex Software, and Vision Guide
  • Simple setup and configuration — fully integrated with Epson RC+ Development Software
  • Point-and-click interface — helps reduce the typical development time required for advanced applications
  • Flexible parts handling — four feeder sizes; supports parts from 3 to 15 mm, 5 to 40 mm, 15 to 60 mm and 30 to 150 mm
  • Quick parts changeover — feeder offers easy setup to accommodate different parts to help reduce the total cost of ownership
  • Compatible with a wide range of parts — supports simple to complex parts, as well as delicate materials
  • Smart auto-tuning — automatically adjusts the feeder parameters for new parts setup
  • Unique directional vibration capabilities — multi-axis vibration technology for optimized parts control and singulation
  • Backlight options — red, green, blue, white and infrared available
  • Tray configuration options — ESD, anti-static and anti-rolling available (varies by model)

Flexible Feeder:


Feeders Available:

  • 80
  • 240
  • 380
  • 530

Communication:Ethernet (TCP/IP)

Part Size Dimensions:

  • 80: 3 – 15 mm
  • 240: 5 – 40 mm
  • 380: 15 – 60 mm
  • 530: 30 – 150 mm

Power Supply:

  • 80: 24 V / 6 A
  • 240: 24 V / 8 A
  • 380: 24 V / 20 A
  • 530: 24 V / 20 A

Vibration Platform (Length x Width):

  • 80: 65 x 52 mm
  • 240: 195 x 150 mm
  • 380: 254 x 325 mm
  • 530: 427 x 371 mm

Footprint (Length x Width x Height):

  • 80: 320 x 61 x 138 mm
  • 240: 300 x 171 x 132 mm
  • 380: 499 x 257 x 307 mm
  • 530: 600 x 372 x 320 mm

Compatible Robots:

  • G-Series
  • LS-Series
  • RS-Series
  • T-Series
  • C-Series
  • N-Series
  • VT-Series

Compatible Vision Systems:Vision Guide CV2 and PV1

Integrated Backlight LED Options:

  • Red
  • White
  • Green
  • Blue
  • Infrared

Tray Configuration Options:ESD (Anti-static), Anti-stick, Anti-rolling, Medical, Black

Hopper Options:

  • 80: 0.16 Liters
  • 240: 2 Liters, 3 Liters
  • 380: 10 Liters
  • 530: 15 Liters

Literature

Air-Oil Systems

Epson Intelliflex

Manufacturer: Epson SCARA Robots
Literature

Intellifex Catalog

[ Download ] (3669kb)

Air-Oil Systems

Intelliflex Brochure

Manufacturer: Epson SCARA Robots
Literature

Epson Intelliflex Brochure

[ Download ] (480kb)

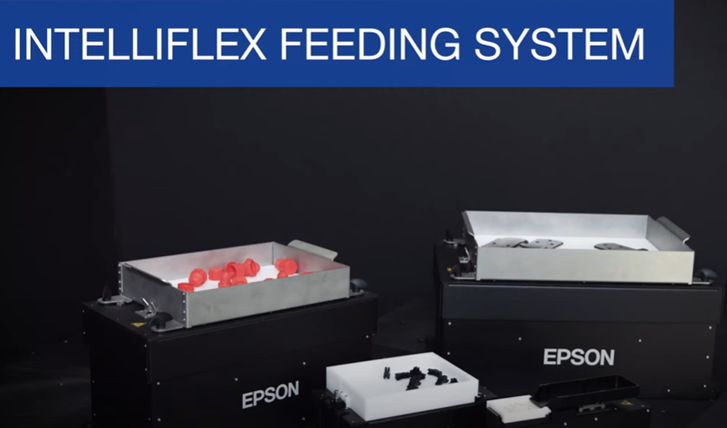

Intelliflex video pic
