MXB-S Actuators by Tolomatic

Manufacturer: Tolomatic Axidyne Electric Motion Control

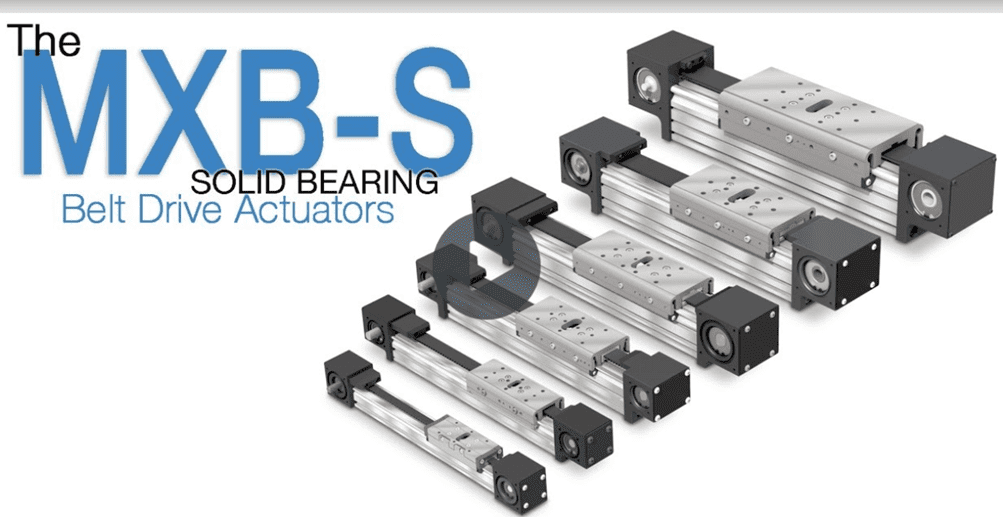

MXB-S linear belt drive actuators provide optimal performance, rigidity and life.

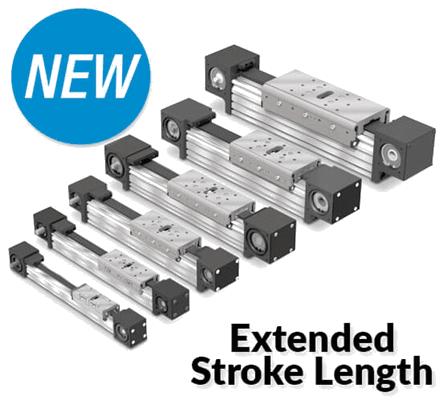

New Capabilities: Stroke Lengths 400 inches +

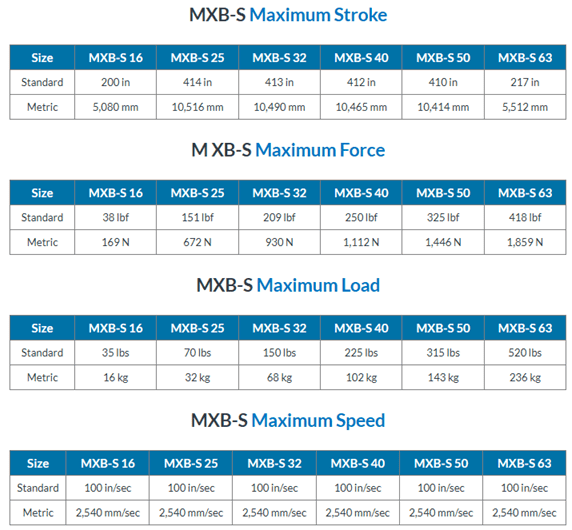

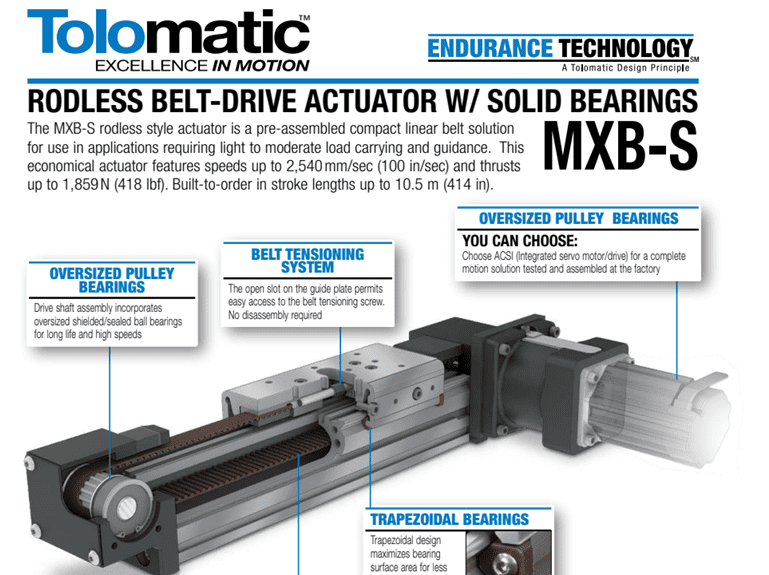

The MXB-S is a compact belt drive linear actuator for use in applications requiring light to moderate load carrying and guidance. The bearing system of the MXB-S linear belt drive utilizes two field-replaceable solid bearings that optimize performance, rigidity and life. Featuring a trapezoidal, self-cleaning bearing system, the MXB-s linear belt drive a good choice for applications in paper production or sawmills. This low-cost, economical belt drive actuator features speeds up to 100 in/sec (2540 mm/sec) and thrusts up to 418 lbf (1860 N). All MXB-S linear belt drive actuators are built-to-order in stroke lengths up to 414 inches (10,516 mm).
- 6 body sizes
- Oversized pulley bearings for longer life
- High-power polyurethan belt resists stretching
- Easy access belt tensioning system with no disassembly required
- Field replaceable bearings for extended service life
- Large, flexible carrier mounting surface
- Your Motor Here® compatible for easy direct drive motor installation
