MXB-U Actuators by Tolomatic

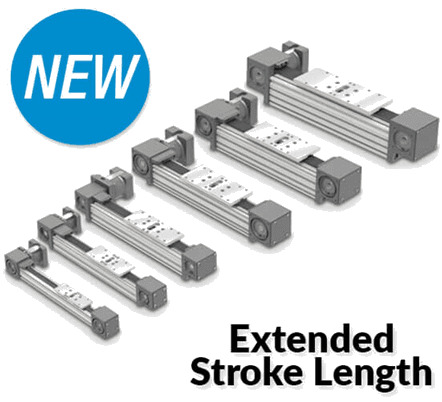

A graphic of four different sized cylinders with the words " new extended stroke length ".

Manufacturer: Tolomatic Axidyne Electric Motion Control

MXB-U belt driven actuators are designed for applications where loads are externally guided and supported.

New Capabilities: Stroke Lengths 400 inches +

The MXB-U belt driven actuator is a compact linear belt solution for use in applications where higher speeds are desired but loads are supported by existing guides & supports.

  • High speed and acceleration capabilities up to 1200 in/sec2 (30.5 mm/sec2)
  • 6 body sizes accommodate a wide range of forces and loads
  • Polyurethane belt with steel members resists stretching
  • Excellent repeatability, high duty cycle performance
  • Choose MXB belt drive for longer strokes than screw drive actuators

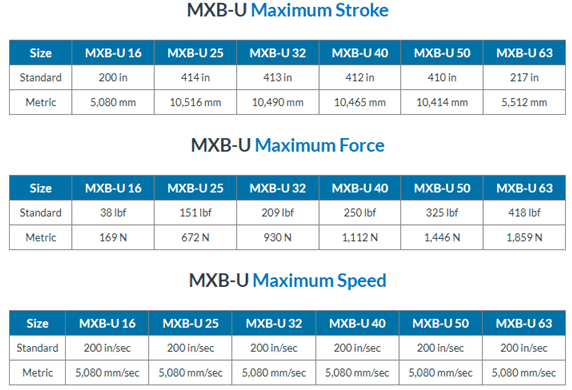

A table showing the different types of motor speeds.

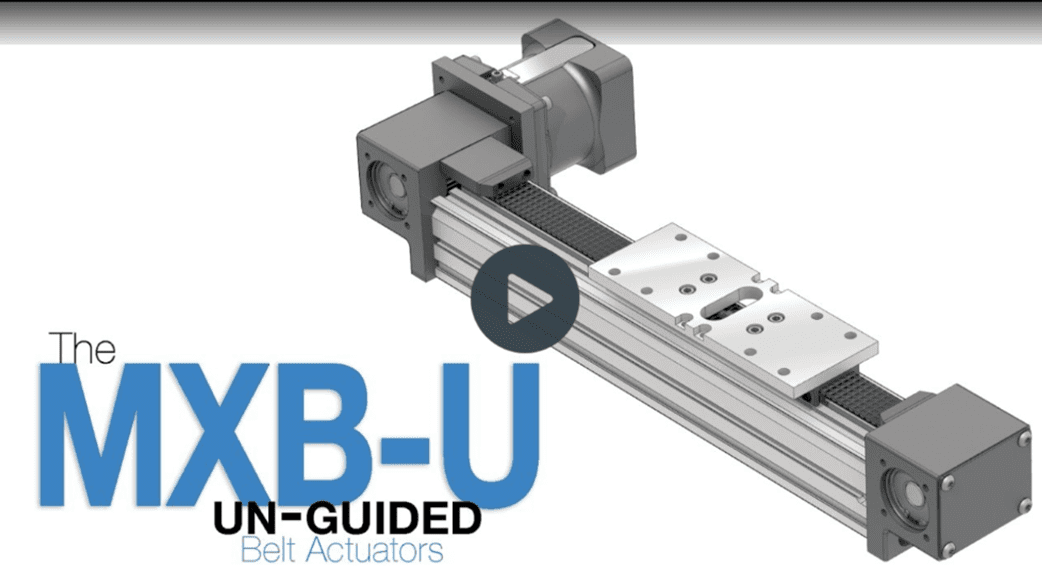

Watch Video

Literature

A series of three different types of actuators.

Download Catalog

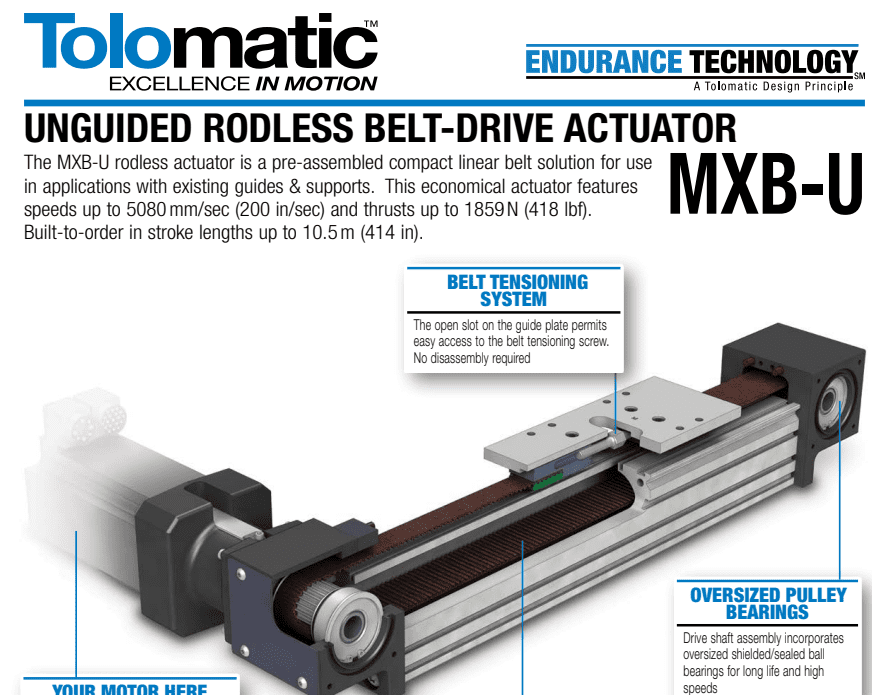

A diagram of an actuator with the text " guided rotless belt-drive actuator mxe ".

Download Flyer
