Clippard is now Compact Air for Round Cylinders

Manufacturer:  Compact Air Products

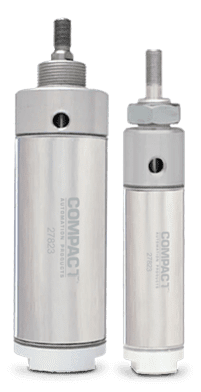

Round cylinder pic

The Compact Round Line Stainless Steel Air Cylinders are manufactured to the highest standards of quality and reliability in a small, durable, and configurable package. Featuring a precision rolled body construction, this line is designed for long life, leak-free, low maintenance performance.

With a wide range of bore sizes from 5/16" up to 3" as well as a variety of mounting styles and accessories we have the product to meet your critical motion control needs.

  • Wide range of bore sizes available from 5/16” to 3”

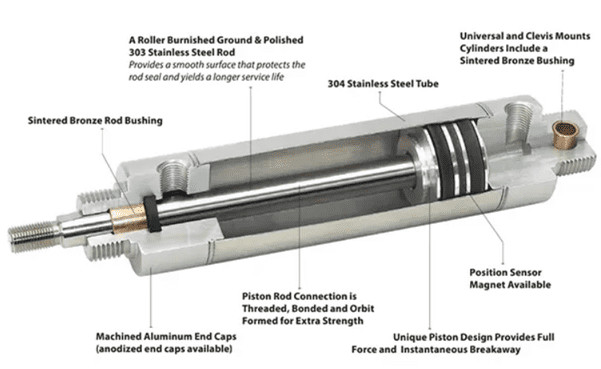

  • Polished I.D. 304 stainless steel tubes for low breakaway
  • Precision rolled construction for a solid, leak-proof cylinder at a reasonable price
  • Rods are threaded, bonded and orbit formed to pistons
  • Ground, polished and roller burnished 303 stainless rods provide long life
  • Nitrile "U"-cup piston seals for full power, low friction and trouble-free performance
  • Sintered bronze rod bushings
  • Wide range of standard options available
  • Cylinder can also be customized for a specific customer application
  • Fast Delivery - same lead time as other standard Compact® products
  • Manufactured in the USA

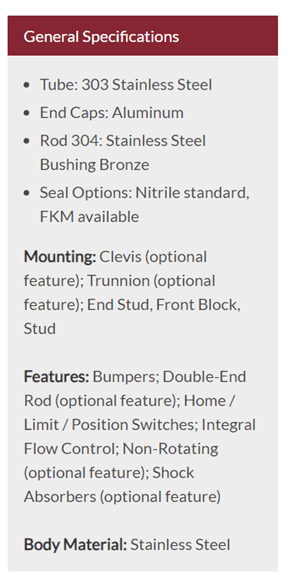

Round gen specs
