Series 227 Poppet Valves by Aventics/Numatics
Manufacturer: Aventics
Product Description

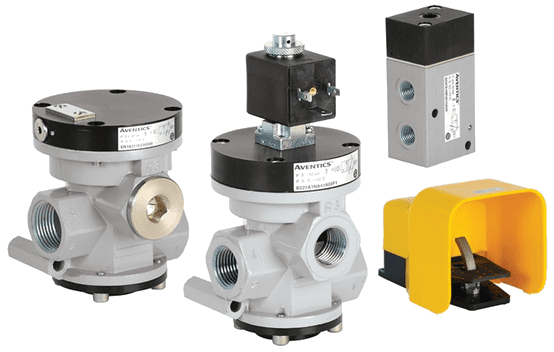

The AVENTICS Series 227 is a line of poppet valves designed for single-acting cylinders, air bellows, and vacuum material handling. The high-flow valves come in solenoid and air pilot-operated for compressed air and vacuum and are ideal for automotive, bottling, press room and metal stamping, and tire manufacturing applications.
Specifications
- Valve Actuation
- Pneumatic - Air Pilot, Solenoid - Air Pilot, Manual Foot Pedal
- Pipe / Port Size
- 1/8, 1/4, 3/8, 1/2, 3/4, 1, 1-1/2
- Port Type
- NPTF or G
- Function
- 2/2 Normally Closed, 3/2 Normally Closed, 3/2 Normally Open (Solenoid,Air Pilot)
- Standards / Regulations
- cURus
- Operating Environment
- Indoor, Outdoor
- Media
- Air, Inert Gas
Features
- High-flow poppet valves can be used in air or neutral gas service
- Rugged design for harsh and challenging environments
- UL and CSA Approved coils (cURus )
- AC and DC voltages available for a wide range of applications
Literature
