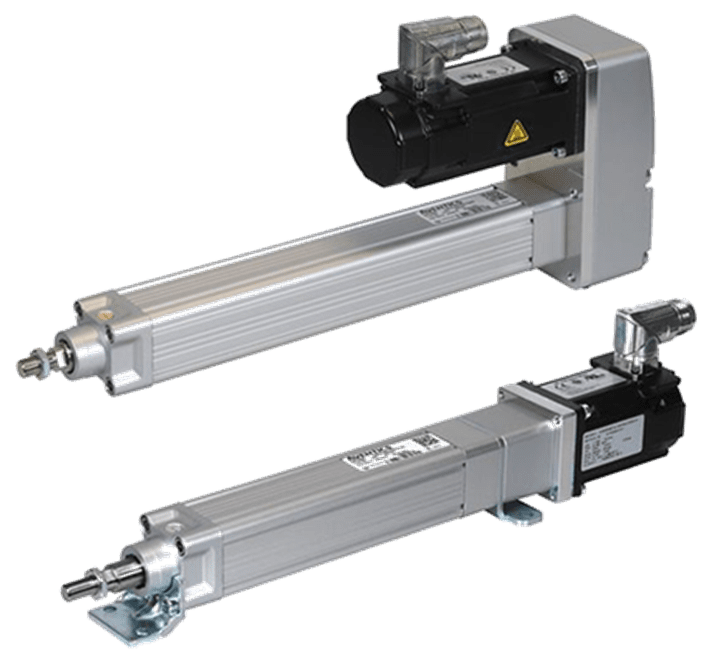

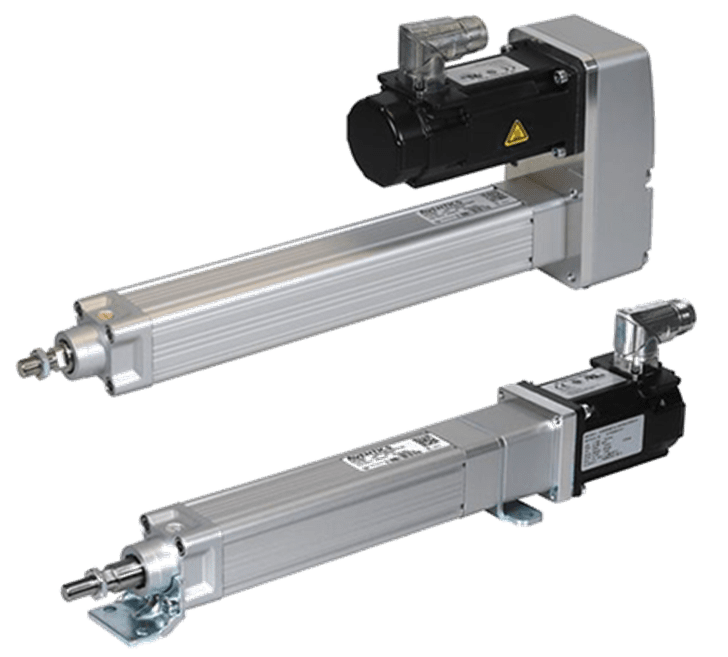

Series SPRA Electric Rod-Style Actuators by Aventics
Manufacturer: Aventics
The AVENTICS Series SPRA electric rod-style actuators are the ideal solution to perform fast and powerful linear movements. They are very flexible, precise and energy efficient, improving sustainability and Total Cost of Ownership (TCO). The modular concept of the Series SPRA enables easy connection to your preferred motor and control system, saving you time and costs on design and programming. The Series SPRA is ISO 15552 compliant and uses high-grade materials – such as a IP54S sealing system, ensuring a high level of reliability even in harsh conditions.
Specifications
Standard
- ISO 15552
- Max. dynamic axial force
- 82 kN
- Max. static axial force
- 82 kN
- Dynamic load capacity
- 106 kN
- Max. linear speed
- 1 m/s
- Max. acceleration
- 12 m/s²
- Duty cycle
- up to 100%
- Screw type
- lead screw, ball screw or roller screw
- Stroke max
- 2000 mm
- Efficiency
- up to 86%
- Degree of protection
- IP54S
Features
- Multi-positioning with high level of precision and repeatability
- Available in size 32, 40, 63 and 100
- High product versatility with three different screw technologies to cover a wide range of application requirements
- Flexibility in mounting cylinders - Compliant with ISO 15552 standard and wide range of accessories available
- Easily size and customize your electrical actuator solution with inter-connected online tools and configurator
