Tolomatic B3S/M3S Series Rodless Screw Drive Actuators by Tolomatic Axidyne Electric Motion Control

Air-Oil Systems

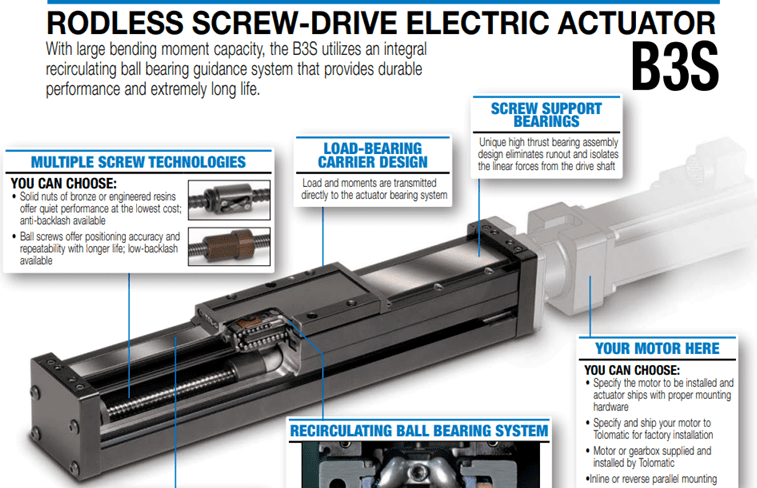

The Tolomatic B3S Series of rodless electric linear actuators is capable of accommodating heavy loads
and handleing high moment loads with consistent, smooth operation. It is a cost-effective alternative to cumbersome auxiliary rail systems. The B3S delivers consistent load tracking and a 100% duty cycle.

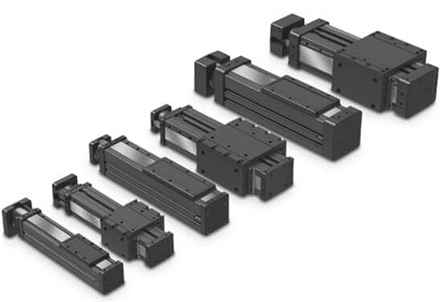

  • 3 english and metric body sizes
  • Same envelope size as the BCS series but has higher load capacities
  • 20 english body size screw/nut combinations
  • 12 metric body size screw/nut combinations

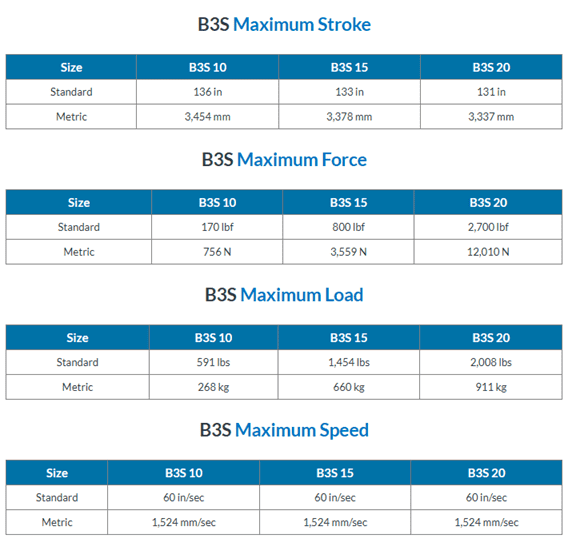

  • Strokes in any incremental length up to 120 inches depending on screw selections
