Human Machine Interfaces by Advantech
Section One
Advantech HMI series contains high-performance Touch Panel PCs, low-power industrial thin clients, and web terminals for smart factory applications.

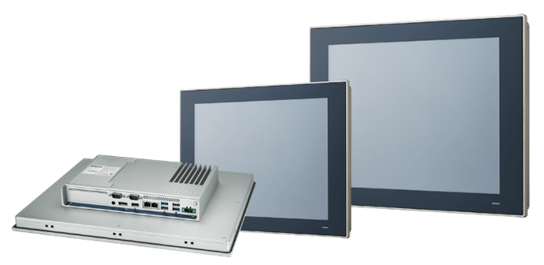

Control Panel
Control panels are high-performance industrial PCs, serving as PC-based automation control platforms supporting fieldbus and process visualization.
TPC-312
12.1" XGA TFT LED LCD Touch Panel Computer with 8th Gen. Intel® Core™ i3/ i5/ i7 Processor, built-in 8G DDR4 RAM
- Industrial-grade 12.1 XGA TFT LCD with 50K lifetime and LED backlight
- 8th Gen. Intel® Core™ i3- 8145UE dual-core/ i5-8365UE quad-core/ i7-8665UE quad-core processor with built-in 8 GB DDR4 SO-DIMM
- Dual channel memory slots support up to 64G in total
- Compact, fanless embedded system with aluminum alloy front bezel and chassis grounding protection
- True-flat touchscreen with 5-wire resistive touch control and IP66-rated front panel
- Support expansion via Full-size Mini PCIe and two M.2 slots (NVMe, 5G)
- Diverse system I/O and isolated digital I/O via iDoor technology
- Support fieldbus protocols/GPS/GPRS/Wi-Fi capabilities via iDoor technology
- Support TPM2.0 hardware security
TPC-315
15" XGA TFT LED LCD Touch Panel Computer with 8th Gen. Intel® Core™ i3/ i5/ i7 Processor, built-in 8G DDR4 RAM
- Industrial-grade 15" XGA TFT LCD with 70K lifetime and LED backlight
- 8th Gen. Intel® Core™ i3- 8145UE dual-core/ i5-8365UE quad-core/ i7-8665UE quad-core processor with built-in 8 GB DDR4 SO-DIMM
- Compact, fanless embedded system with aluminum alloy front bezel and chassis grounding protection
- True-flat touchscreen with 5-wire resistive touch control and IP66-rated front panel
- Supports expansion via Full-size Mini PCIe and NVMe
- Diverse system I/O and isolated digital I/O via iDoor technology
- Supports fieldbus protocols via iDoor technology
TPC-317
17" SXGA TFT LED LCD Touch Panel Computer with 8th Gen. Intel® Core™ i3/ i5/ i7 Processor, built-in 8G DDR4 RAM
- Industrial-grade 17" SXGA TFT LCD with 50K lifetime and LED backlight
- 8th Gen. Intel® Core™ i3- 8145UE dual-core/ i5-8365UE quad-core/ i7-8665UE quad-core processor with built-in 8 GB DDR4 SO-DIMM
- Dual channel memory slots support up to 64G in total
- Compact, fanless embedded system with aluminum alloy front bezel and chassis grounding protection
- True-flat touchscreen with 5-wire resistive touch control and IP66-rated front panel
- Support expansion via Full-size Mini PCIe and two M.2 slots (NVMe, 5G)
- Diverse system I/O and isolated digital I/O via iDoor technology
- Support fieldbus protocols/GPS/GPRS/Wi-Fi capabilities via iDoor technology
- Support TPM2.0 hardware security

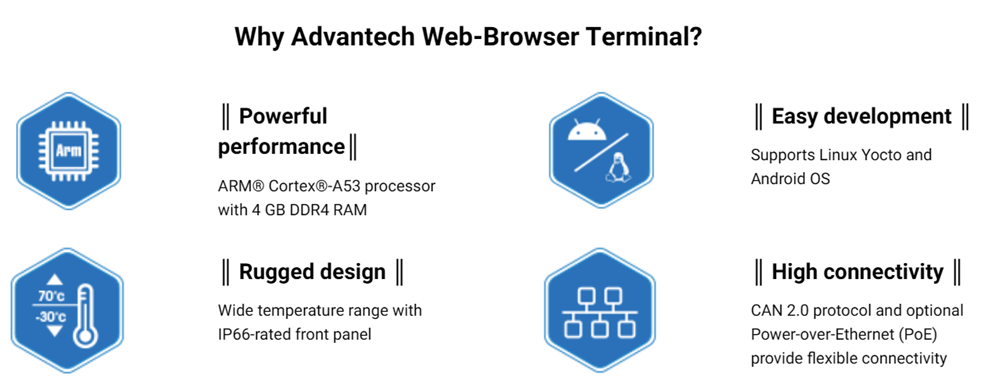

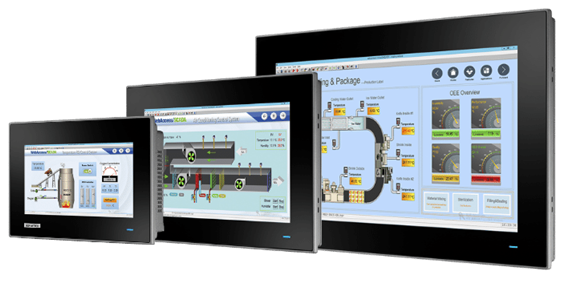

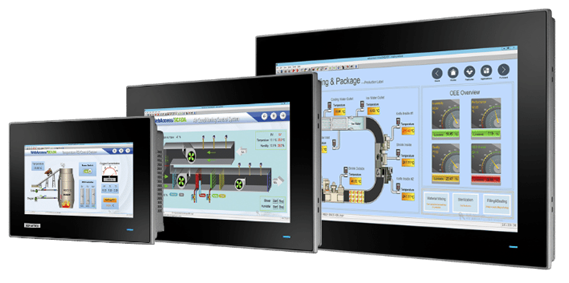

Web-Browser Terminal

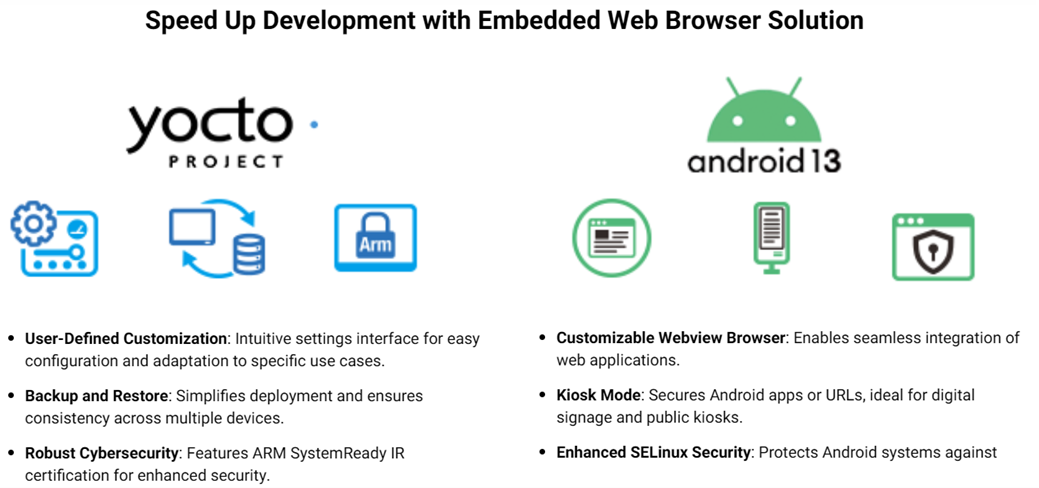

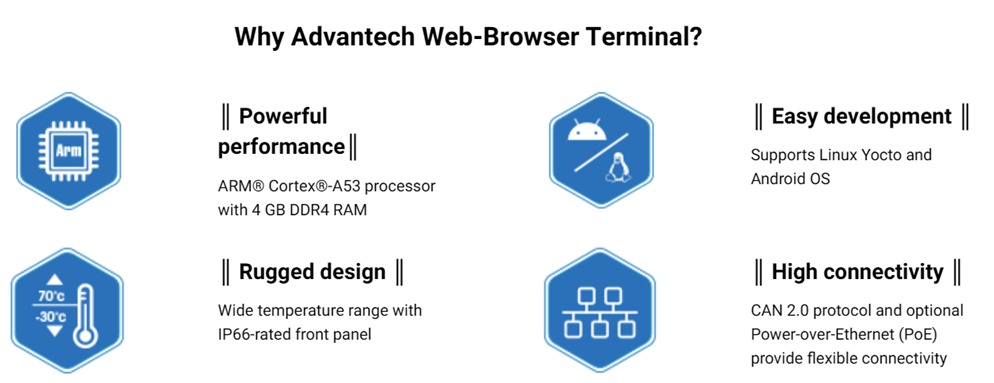

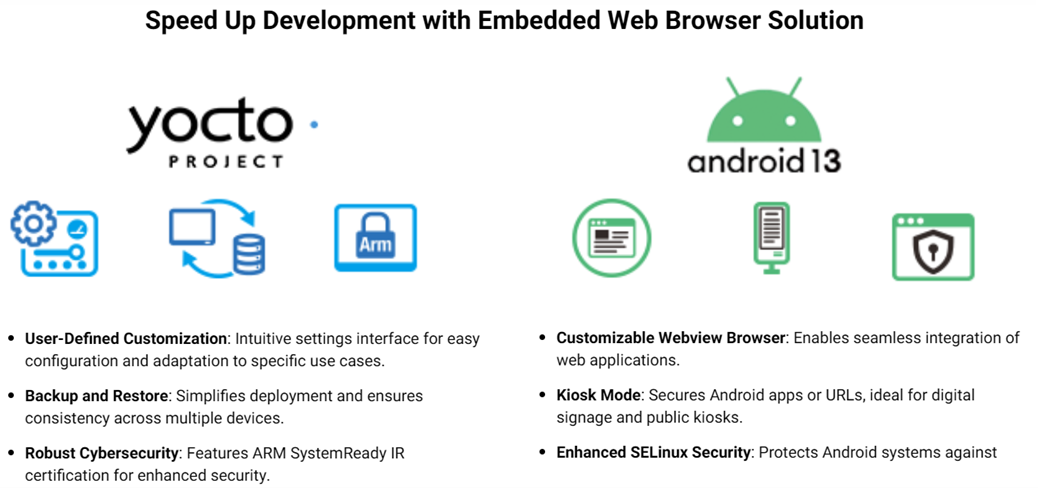

Built on ARM architecture, it delivers versatile web terminal functionality with Linux Yocto and Android support for quick deployment
Arm® SystemReady IR Certified HMI Provides Ready-to-Deploy Solution
Reinforcing Security in Industrial IoT
Advanced security protection secure Boot with PKI ensures trusted software execution.
Enhancing Interoperability and StandardizationReliable system operation guarantees high uptime and fast recovery for industrial applications.
Extensive OS support certified for multiple Linux distributions with standardized architecture.

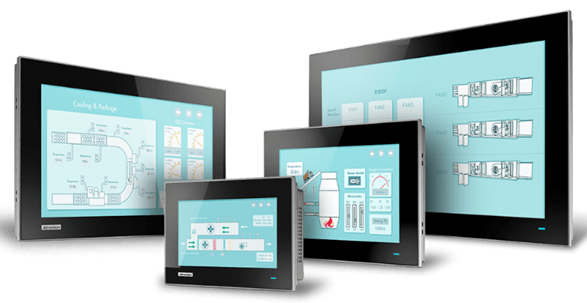

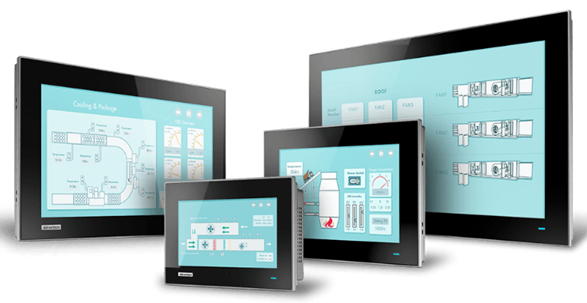

Standard Series
TPC-100W Series offers versatile web terminals in 7", 10", 15.6" and 21" displays, designed for factory control systems
TPC-121W
[Yocto/Android] 21.5" Touch Panel Computer with ARM Cortex™-A53 Processor
- arm SystemReady IR certified
- NXP® ARM® Cortex™-A53 i.MX 8M Mini quad-core processor
- 16:9 LCD with multi-touch P-CAP and true-flat IP66-rated front panel
- Up to 4 GB DDR4 RAM and 16 GB eMMC storage onboard
- 1 mb FRAM backup memory for unexpected power interruptions
- 2 x Serial port with 120Ω termination resistor that one supports the CAN 2.0B protocol and offers a programmable bit rate of up to 1 Mb/sec
- Embedded browser and for rapid Web App development
- Supports Linux Yocto and Android
- Compatible with VESA and panel mounting
TPC-61T
[WinCE] 5.7" QVGA TFT LED LCD TI Cortex-A8 Touch Panel Computer
- TI Cortex-A8 processor on board
- 5.7" QVGA TFT LED LCD
- Super slim and compact design with plastic housing
- Fanless cooling system
- IP65 compliant front panel
- Built-in micro SD card with Windows® CE OS
- 1 x SD card slot
- Automatic data flow control RS-485
- Supports 1Mbit FRAM for data back-up
MORE SIZES AVAILABLE - CONTACT AIR-OIL SYSTEMS FOR DETAILS

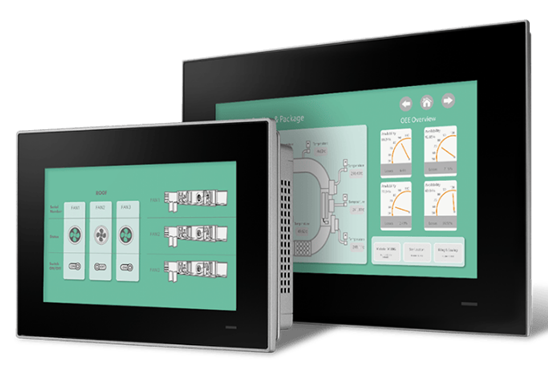

Power-Energy Control Series
TPC-100WX Series feature wide-temperature support and high-brightness displays, for outdoor environments with high durability and reliable performance
Engineered for Excellence in Harsh Environments
Clear Vision, Solid Control
TPC-100WX Series delivers rugged outdoor HMI solutions engineered for extreme environments. Featuring high brightness displays (up to 1200 nits), wide temperature range (-30~70°C), and IP66/IK08 protection, these touch panel computers excel in outdoor applications. With ARM Cortex-A53 processing power and versatile OS support for Linux Yocto and Android, they ensure reliable operation under harsh conditions.
Robust Solutions for Energy Infrastructure: From Storage to Distribution
Designed specifically for energy infrastructure, the TPC-100WX Series provides comprehensive solutions for power management applications. From EV charging stations and energy storage systems to power distribution facilities, these rugged touch panels deliver clear visibility and stable performance. Their robust design and advanced features make them the ideal choice for modern energy control and monitoring requirements in outdoor installations.
TPC-107WX
[Yocto/Android] 7"High Brightness Touch Panel Computer with ARM Cortex™-A53 Processor
- arm SystemReady IR certified
- NXP® ARM® Cortex™-A53 i.MX 8M Mini quad-core processor
- 7", 10.1" 16:9 High brightness LCD with multi-touch P-CAP and true-flat IP66-rated front panel
- Supports Linux Yocto 4.0
- Wide operating temperature range (-30~70°C/ -22~158°F)
TPC-110WX
[Yocto/Android] 10.1" High Brightness Touch Panel Computer with ARM Cortex™-A53 Processor
- arm SystemReady IR certified
- NXP® ARM® Cortex™-A53 i.MX 8M Mini quad-core processor
- 10.1" 16:9 High brightness LCD with multi-touch P-CAP and true-flat IP66-rated front panel
- Supports Linux Yocto 4.0
- Wide operating temperature range (-30~70°C/ -22~158°F)

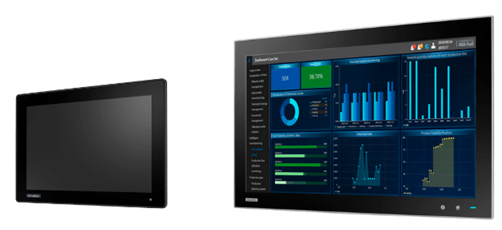

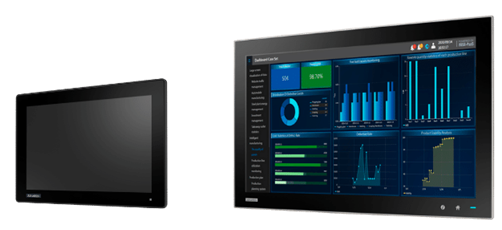

Industrial Thin Client
Advantech’s compact, fan-less and low-power Industrial thin client modules mainly used as process visualization tool monitoring work flow.

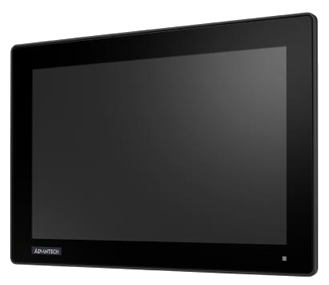

TPC-310W
10.1" WXGA TFT LED LCD Thin-Client Terminal with Intel® Celeron®/ Intel Atom® processors
- Industrial-grade 10.1" WXGA TFT LCD with 50K lifetime and LED backlight
- Intel® Elkhart Lake (EHL) Atom® x6425E Quad-core / Celeron® J6412 Quad-core
- Compact, fanless embedded system with aluminum alloy front bezel
- Wide operating temperature range -20 ~ 60 °C (-4 ~ 140 °F)
- True-flat ultra slim bezel design with IP66 water proof of front panel
- Support high speed M,2 2280 NVMe
- Touchscreen with P-CAP multi-touch control
- Supports AC/DC input with optional power adapter
- Chassis grounding protection
TPC-317 EHL
17" SXGA Elkhart Lake Thin-Client Terminal with Intel® Atom™/ Celeron® Processor
- Intel® Elkhart Lake (EHL) Atom™ x6425E 2.00 GHz quad-core / Celeron® J6412 2.00 GHz quad-core processor with 4 GB DDR4 SDRAM
- True-flat touchscreen with 5-wire resistive touch control and IP66-rated front panel
- Wide operating temperature range (-20 ~ 60 °C/-4 ~ 140 °F)
- Front-facing LED indicators to show operating status
- Built-in Advantech iDoor technology, SSD/HDD bay and VESA mount
- Compact, fanless system with aluminum alloy front bezel and chassis grounding protection
- Supports Advantech’s SNMP Subagent software
- Supports Advantech’s WISE-PaaS/RMM remote management software

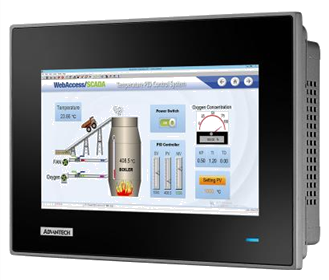

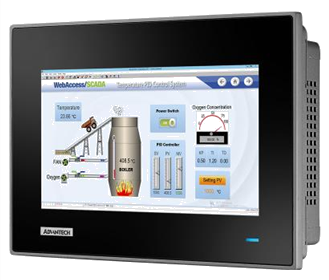

TPC-307W
7" WSVGA TFT LED LCD Thin-Client Terminal with Intel® Elkhart LakeR
- Industrial-grade 7" WSVGA TFT LCD with 50K lifetime and LED backlight
- Intel® Elkhart Lake (EHL) Atom™ X6211E 1.30 GHz, dual core processor
- Compact, fanless embedded system with aluminum alloy front bez
- Wide operating temperature range -20 ~ 60 °C (-4 ~ 140 °F)
- True-flat, IP66-rated front panel
- Front-facing LED indicators to show operating status
- True-flat touchscreen with P-CAP multi-touch control
- Supports AC/DC input with optional power adapter
- Chassis grounding protection
IoT HMI
WOP-200K systems are added to HMINavi software for HMI applications to reduce labor and improve manufacturing efficiency through visualization
Supports 500+ PLC Industrial Communication Protocols
HMINavi can connect up to 90% of global PLC devices. The data exchanger function can easily exchange various types of PLC data. Its powerful connectivity makes HMINavi a perfect fit for existing or future IoT solutions.
Simple Cloud Access via MQTT Protocol
HMINavi simplifies OT & IT integration using the latest MQTT uplink communication protocol. Users can effortlessly transform legacy machinery into intelligent systems, with all critical data and backups handled by cloud services
Intuitive Visualization Software for Human-Machine Interaction
- Allows users to manage multiple HMI applications in one project
- Dynamically language switch with Unicode and multilingual text supported
- Password protection for designs, macros, and upload/download operations
- Supports the running of open platform applications with Windows
- Provides index registers for modifying device addresses at runtime
- Supports diverse data acquisition and trend presentation techniques
- Operation log facilitates event review and investigation
- Supports over 500+ PLC controller drivers
- Compliant Food & Drug Administration Title 21 CFR Part 11
